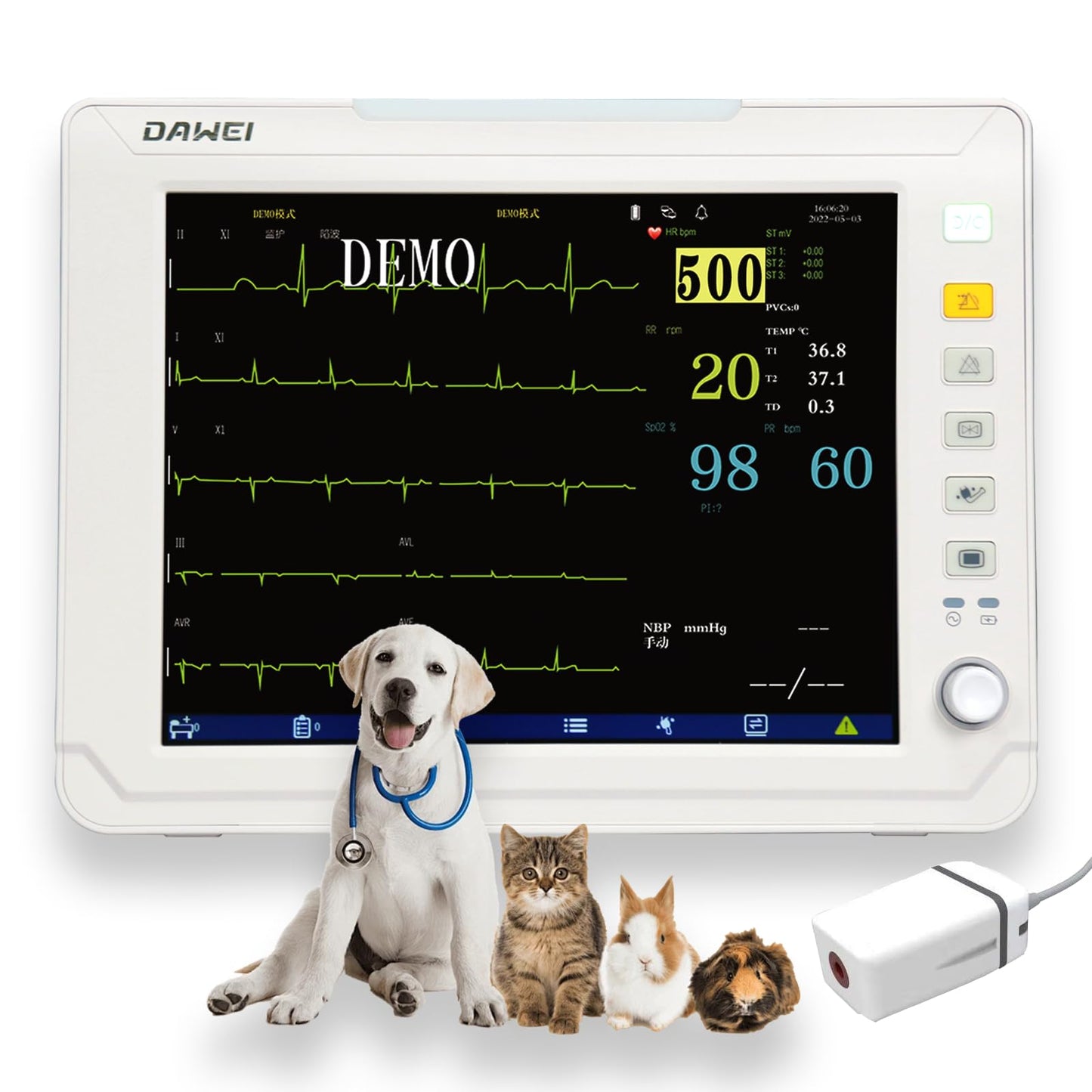

Equipo de Monitoreo Veterinario Multiparamétrico HM10

• Lead selection: 3/5 lead standard; Up to 7 leads can be displayed on the same screen
• I, II, III, AVR, AVL, AVF, V thoracic leads
• ECG value detection range: 20~500bpm
• Resolution: 1bpm
• Measurement accuracy: ±2% or ±2bpm greater
• Frequency response: 0.67Hz-150Hz
• ST segment monitoring: -2.5mV~2.5mV
• ST segment measurement accuracy: within the range of -0.8mV ~ + 0.8mV ± 0.02mV or ± 5% of the reading, take the one with the greater absolute value.
• Waveform speed: 6.25, 12.5, 25, 50mm/s
• Gain selection: ×0.125, ×0.25, ×0.5, ×1, ×2, ×4, automatic

Protection isolation withstand 4000V/AC/50Hz voltage;

• Ecg cable guide: 3/5 leads
• Standard configuration: 5 leads electrical cable, multifunctional ECG electrode clamp Alarm value: upper and lower limits can be set, automatic memory,have alarm review

• Blood oxygen range: 0%-100%
• Resolution: 1%
• Accuracy: ±2% (not defined below 70%)
• Pulse Rate:

1. Measuring range: 30 ~ 254bpm
2. Pulse accuracy: ±2bpm or ±5%
3. Standard: animal use SPO2 probe
4. Alarm value: upper and lower limits can be set, automatic memory

• Method: Oscillometric
• Measuring parameter: Systolic pressure, Diastolic pressure, Mean pressure
• Working mode: manual, automatic, continuous, whole point measurement
• Automatic measurement mode measurement interval: 1~480min multi-stage adjustable
• Typical measurement time:

25 seconds (manual or automatic mode)

20 seconds (continuous mode)

• Cuff pressure range: 0-300 mmHg Cuff
• Standard configuration: disposable animal cuff (Range 4-8cm, Range 6-11cm, Range 7-13cm, Range 8-15cm)
• Optional configuration: Disposable animal cuff

• TEMP measurement range: 15℃ ~ 50℃
• Temperature measurement error: not more than ±0.1℃
• Resolution: 0.1℃
• Accuracy: ±0.2℃ (including sensor error)
• Probe: Body cavity temperature probe
• Alarm value: upper and lower limits can be set, automatic memory

• Measurement method:the thorax impedance method
• PR Measurement Range and Accuracy

1. Measuring range: 0~ 150rpm.
2. Measurement accuracy: 10~150 rpm the bigger one between ±2 rpm or ±2%; 0~9 rpm not define. whichever is larger;

• Suffocation alarm delay time
• RI alarm limit can be set to: 2~150rpm

• Measurement Principle: NDIR, dual-wavelength single-beam detection, no moving parts

• Measurement Range: 0–19.7% Vol (0–150 mmHg)

• Accuracy:

  0–40 mmHg: ±2 mmHg

  41–100 mmHg: ±5% of reading

  101–150 mmHg: ±8% of reading

• Resolution: 0.1 mmHg

• Respiration Rate: 2–150 RPM, accuracy ±1 RPM or ±1% (whichever is larger)

• Response Time: ~3 seconds (with 2 m sampling line)

• Sampling Flow Rate: 50 ±10 ml/min

• Initialization Time: Ready within 10 seconds; full accuracy in ≤1 minute

• Stability: Short-term drift ≤1 mmHg/24h
