Used Portable Veterinary Ultrasound Machine S0

Used Portable Veterinary Ultrasound Machine S0

$399.00 USD
$599.00 USD $399.00 USD
Sale Sold out
visa visa master maestro diners club discover
View full details

USA ONLY

The machine will be shipped from the US warehouse and arrive in 5-8 days.

Warm reminder: Only for US buyers, orders from other countries cannot be shipped. Thank you for your understanding!

The Used animal ultrasound machine that you can't miss!

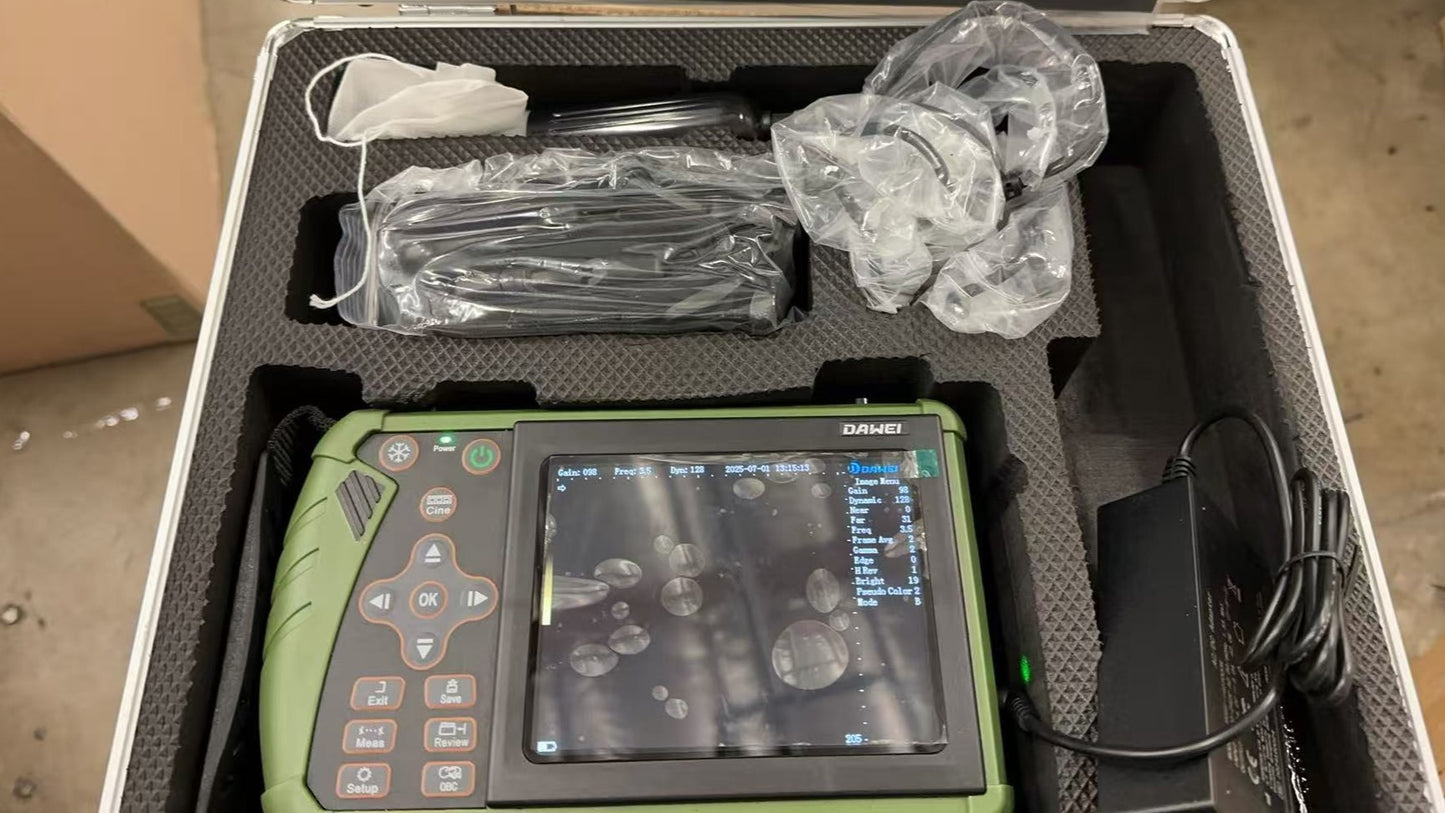

Usage: only opened/used 1-2 times
Machine status: quality inspected, in good condition
Place of shipment: United States

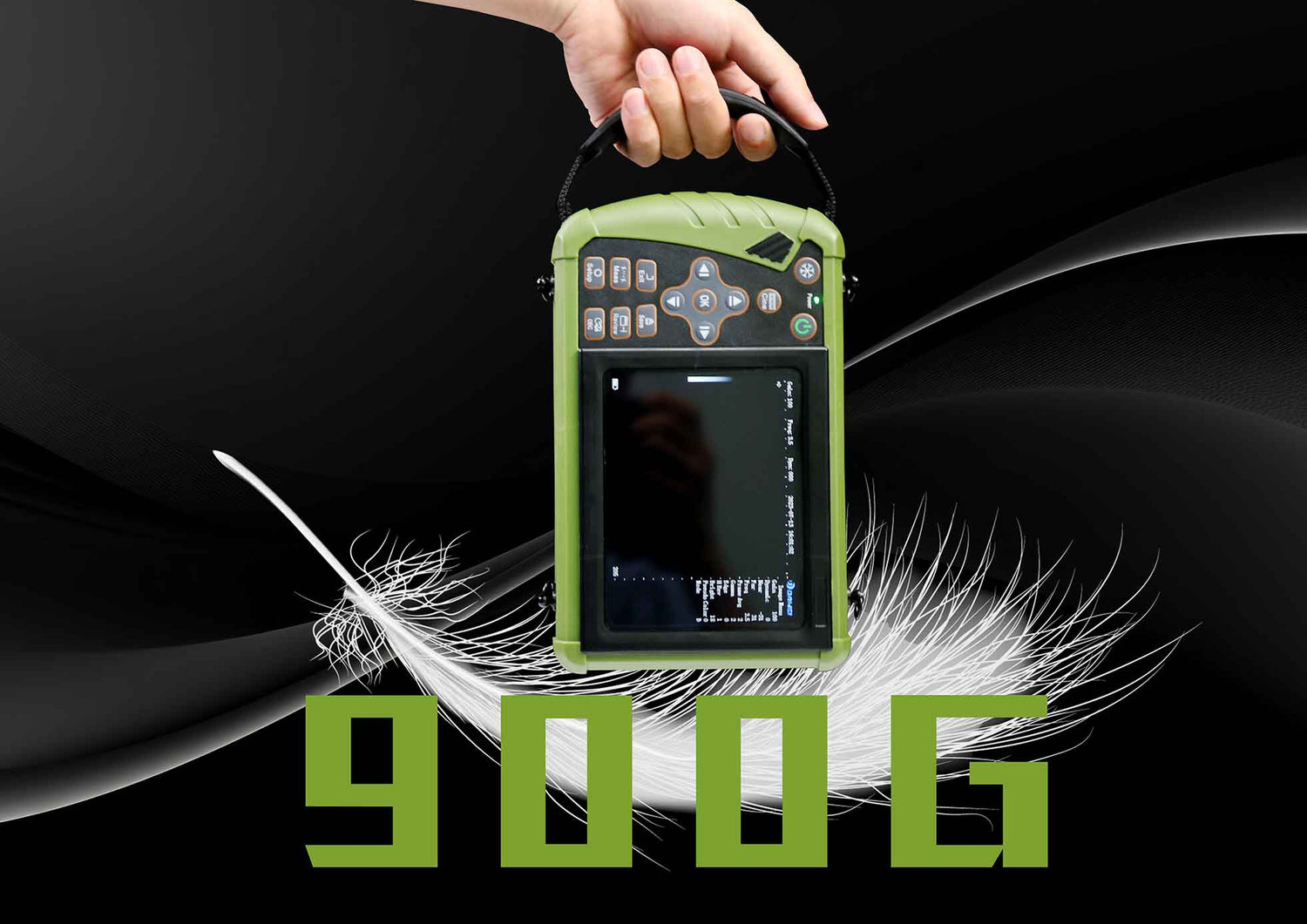

Portable animal ultrasound machine weighing 900g

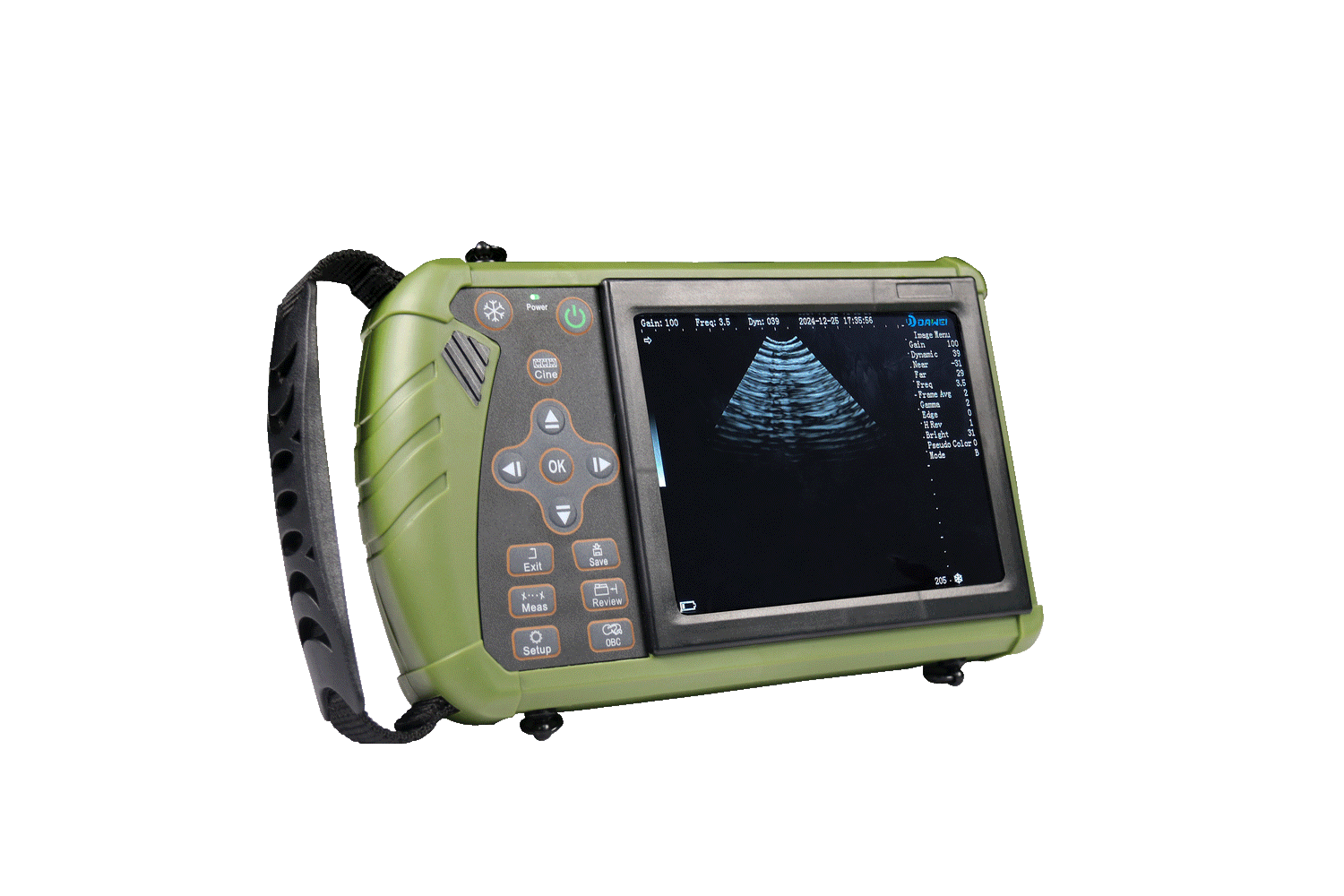

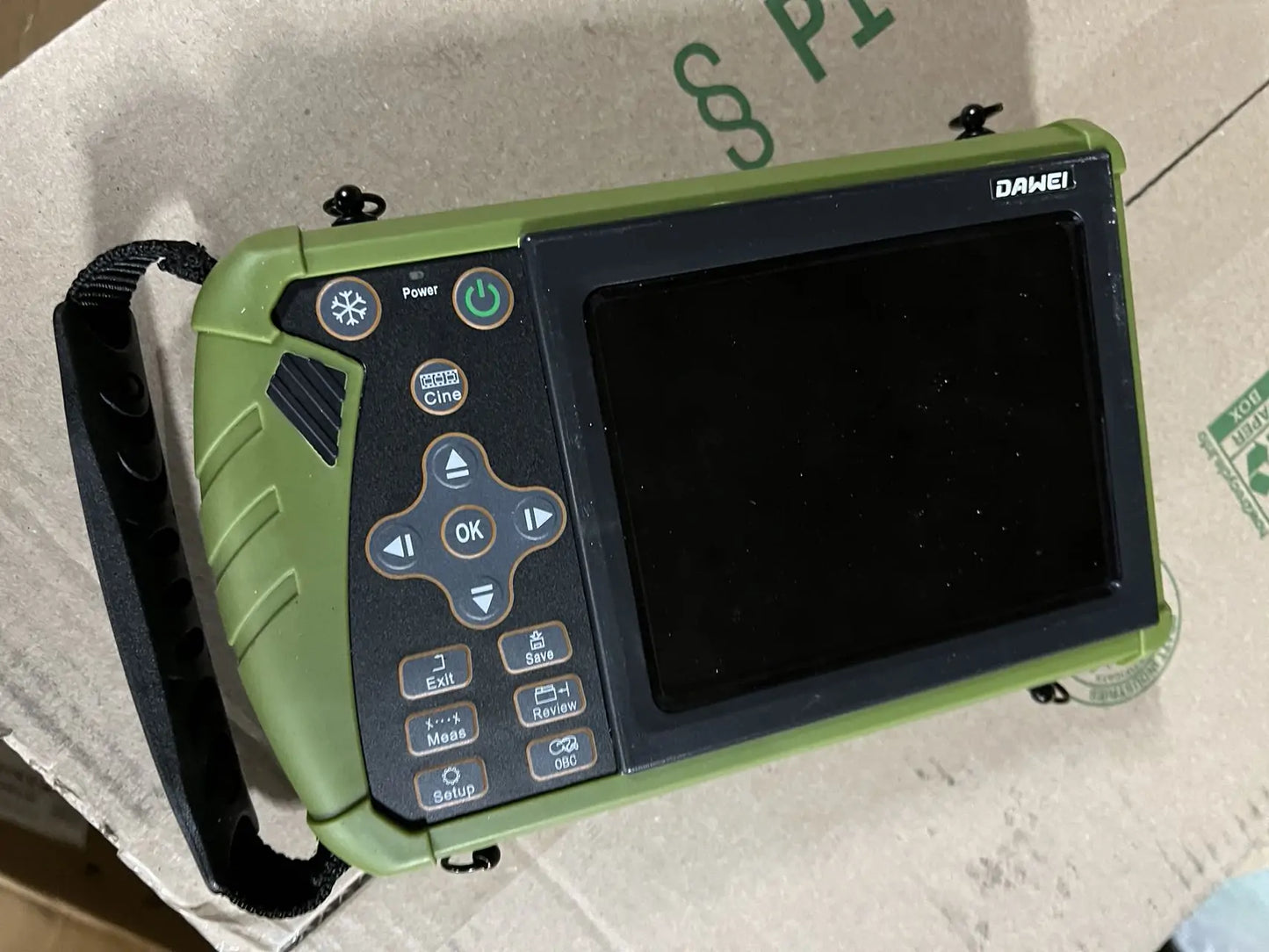

Veterinary Portable Ultrasound Machine S0

A portable, accurate and efficient outdoor animal ultrasound machine weighing only 900g, professional obstetric examination packages for pigs, sheep, dogs and cats to obtain accurate animal due dates.

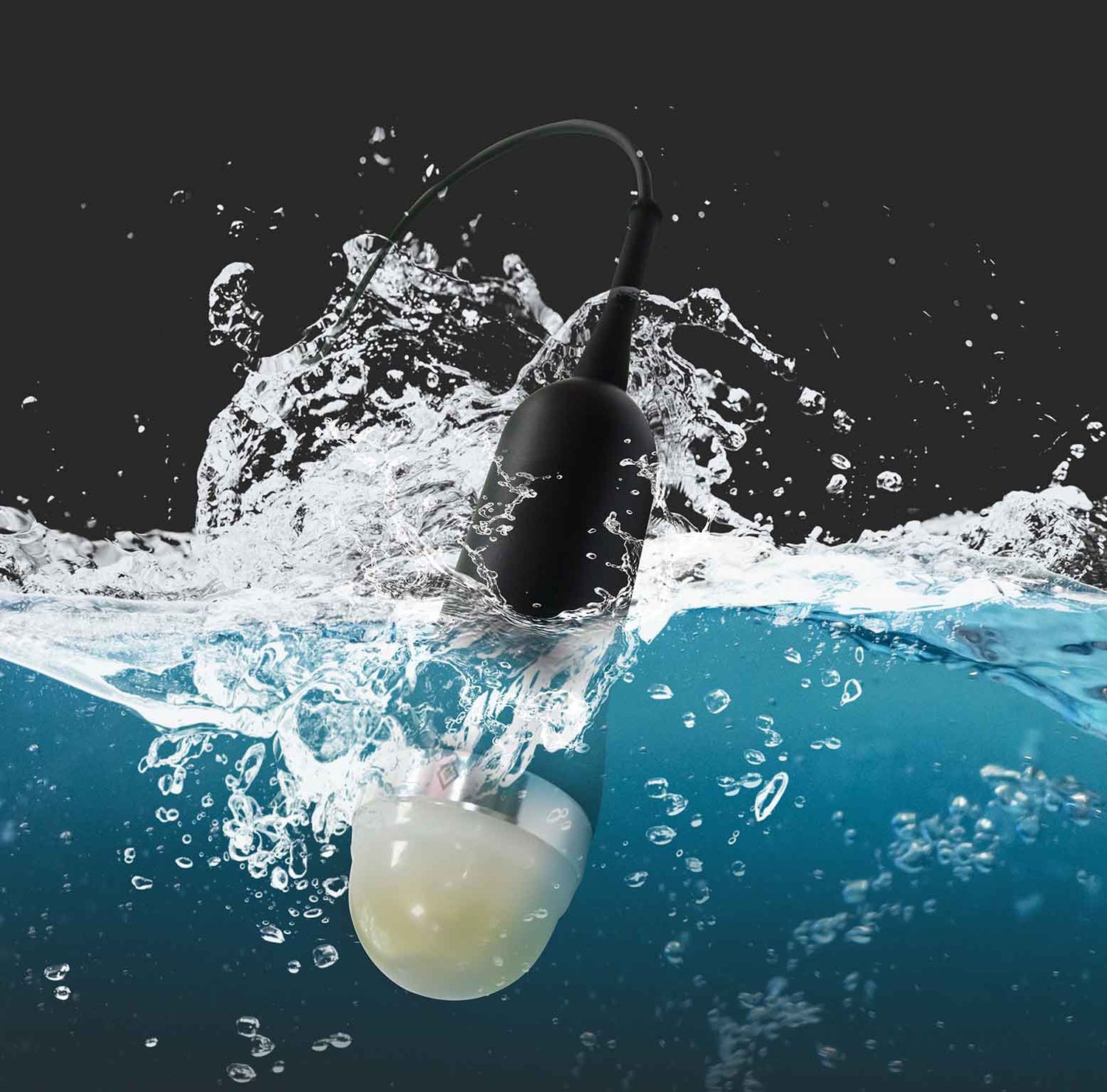

waterproof 3.5Mhz probe

3.5MHz mechanical sector probe

  • Frequency Range: 2.0 MHz,2.5 MHz,3.0 MHz, 3.5 MHz,4.0 MHz,5.0 MHz
  • Waterproof: Easy to clean.
  • Display Depth: 46-208 mm
  • Add airbag: Compared with traditional mechanical fan-scanning probes, the s0 probe with airbag has a longer service life
  • Quick Probe Activation: The winter mode feature enables immediate probe used in cold conditions without preheating, enhancing efficiency in all weather conditions.
Portable ultrasound machine with 3-hour battery life

Long Endurance

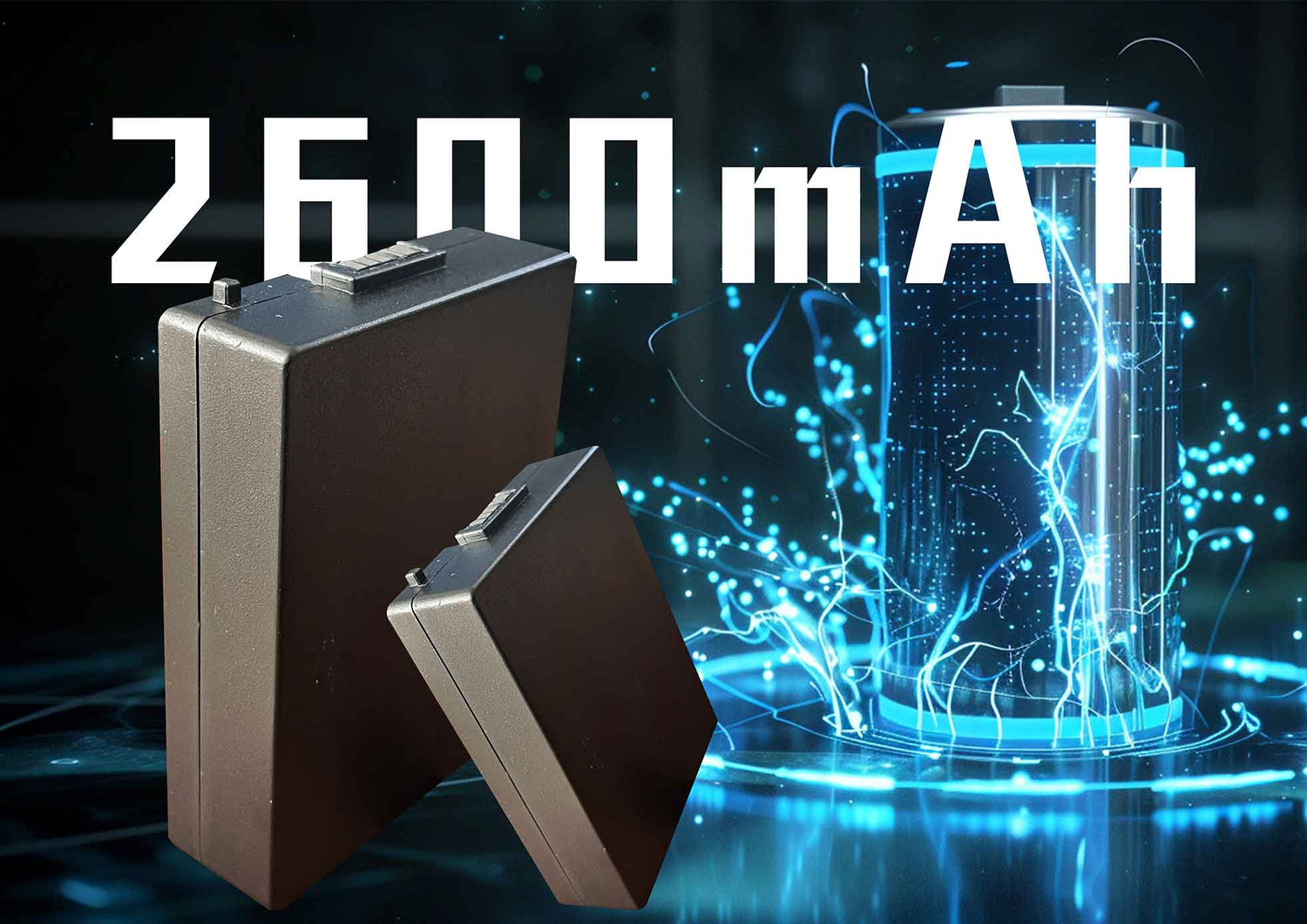

Equipped with large-capacity pluggable mobile battery, rechargeable lithium-ion battery, imported 18650 standard battery cell, can be used continuously for more than 3 hours

  • 2.0/2.5/3.5/4.0/5.0MHz mechanical probe

  • 5.6-inch high brightness display

  • obstetric examination
    package for dog, cat, pig, goat

  • Built-in 8G storage space, TF card and USB interface

  • large-capacity pluggable mobile battery, continuous use for more than 3 hours

  • winter mode, parameter mode, standby protection and custom pregnancy week settings

Obstetric Examination

Ovine

Crown-rump length (CRL)

Feline

  • Head circumference (HC)
  • Biparietal diameter (BPD)

Canine

  • Gestational sac diameter (GS)
  • Crown-rump length (CRL)
  • Head circumference (HC)
  • Biparietal diameter (BPD)

Pig

  • Heart length (HL)
  • Stomach length (SL)

Your First Ultrasound Machine

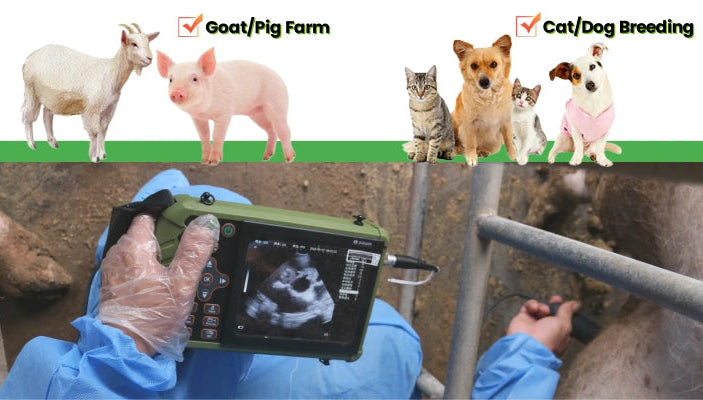

Diverse Application

DAWEl ultrasound produces clear and detailed images that can accurately and reliably diagnose a wide range of diseases in animals.

Whether used for pregnancy monitoring, internal organ evaluation or basic disease detection, the ultrasound images produced by this machine can provide veterinarians with valuable insights.

This greatly improves veterinary reproductive management, makes diagnosis more accurate, and improves breeding programs.

1 3

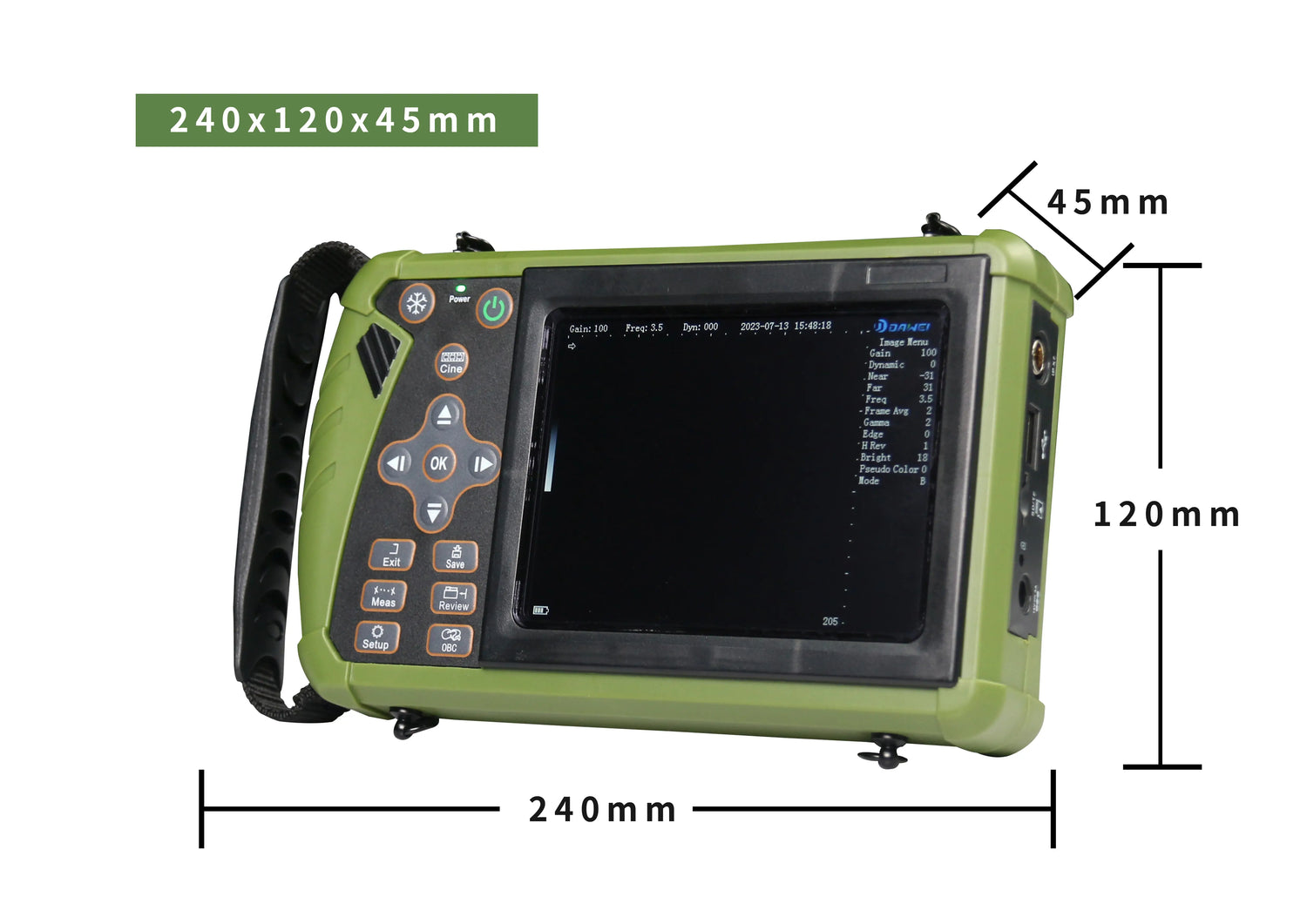

Dawei Ultrasound Machine Dimensions

Ultra-lightweight portable design

Weighing only 900g and equipped with a belt and a shoulder strap, it is easy to move around and can be used indoors and outdoors.

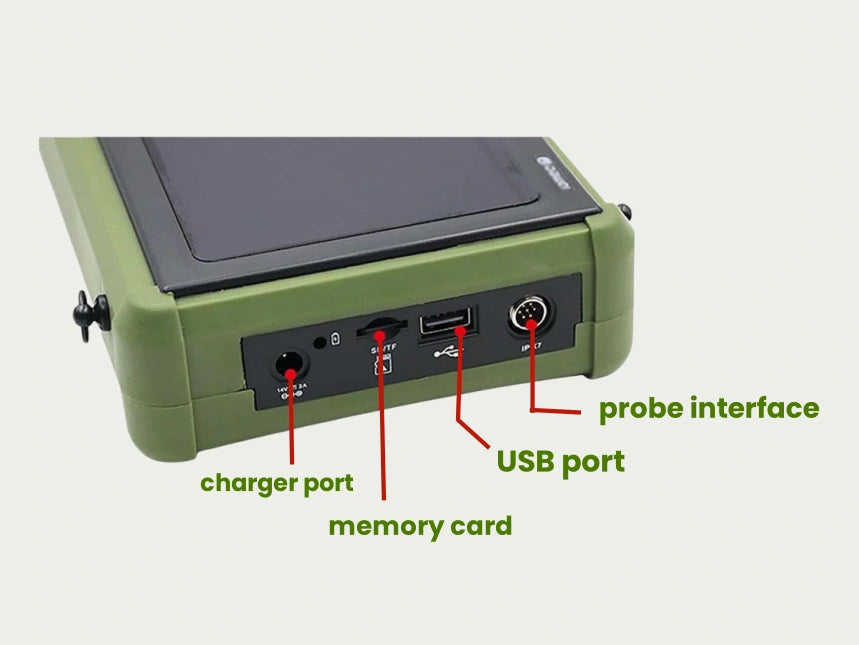

Multi-function jack

Detailed Design

S0 has built-in 8G storage and external U disk storage. It can browse pictures locally and transfer built-in pictures to U disk.
The host has TF card (memory card) and USB interface.Pictures are
directly stored in TF card (memory card), and storage can be expanded infinitely.
The images on the TF card can be called out frame by frame or continuously.

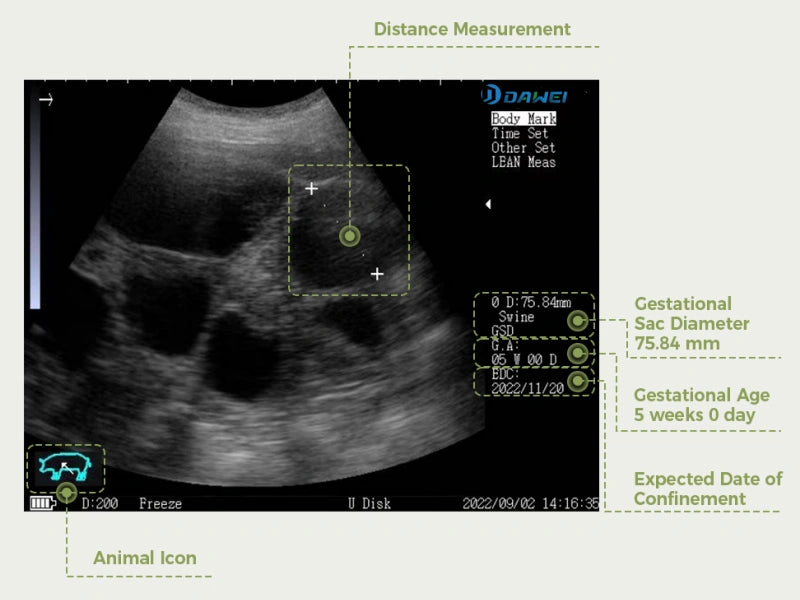

Ultrasound of pig pregnancy test

Easily Read Pregnancy Status

A User-friendly interface and easy-to-read screen ensure every new breeder to perform animal pregnancy diagnosis effortless. One-button operation reveals gestational age and expected due date instantly on-screen, offering a quick overview of the animal's pregnancy status.

3 Display Modes

B Mode: Helps identify structures, locate abnormalities,

B+B Mode: Valuable for monitoring the progression or regression of conditions, such as tumor growth or healing injuries.

4B Mode: Useful when evaluating complex anatomical regions, enabling a more complete understanding of structures and potential anomalies.

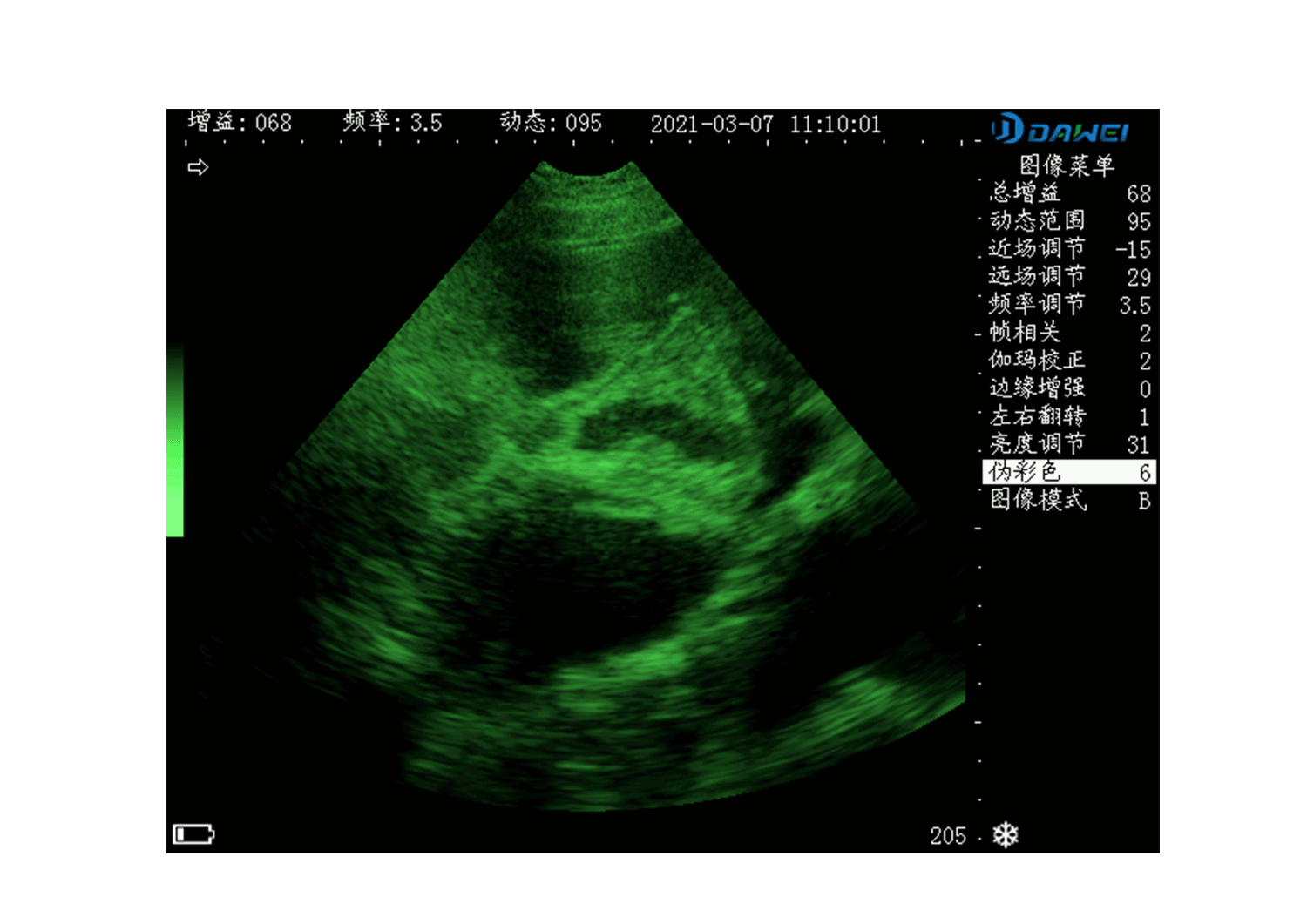

8 pseudo colors, suitable for people with different color sensitivities
16 levels of magnification, clearer details
256 levels of grayscale, more delicate imaging

Parameters & Information

Technical Parameters

  • Display: 5.6-inch LED display;
  • Scanning method: 3.5M mechanical fan scanning;
  • Operation interface: Chinese/English;
  • Display mode: B, B+B, 4B;
    Body position mark: ≥17 types;
  • Frequency conversion: 2.0MHz, 2.5MHz, 3.5MHz, 4.0MHz, 5.0MHz;
  • Character display: gain, frequency, dynamic, date, time;
  • Movie playback: ≥256 frames, can be played back continuously or viewed frame by frame;
  • Storage: built-in 8G storage, external U disk storage, can browse pictures locally, can transfer built-in pictures to U disk;
  • Gray scale: 256 levels;
  • Dynamic range: 0-135dB;
  • Display depth: 126-307mm;

  • Display magnification: 16-level magnification;
  • Gain range: 0~100dB; Near field adjustment range: -31~0;
  • Far field adjustment range: 0~31;
  • With winter mode, parameter mode, standby protection, and custom pregnancy week settings;

Main Engine

  • Size: 240x120x45mm (length x width x height)
  • Weight: 900g

After-sales Service

Two-year free warranty, lifetime warranty
Free remote training

User Guide
