Dawei

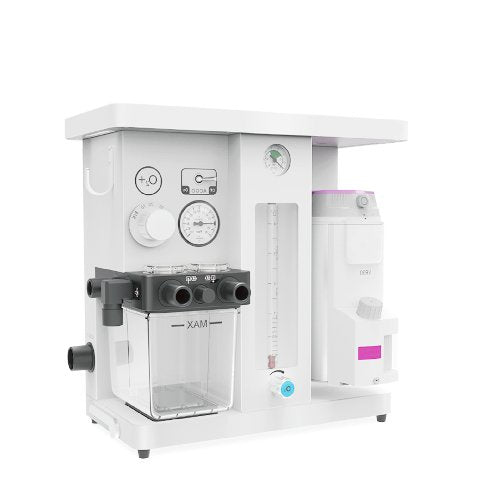

DWanimal AAM-100 Veterinary Anesthesia Machine

DWanimal AAM-100 Veterinary Anesthesia Machine

Regular price $2,289.00 USD
Regular price $3,899.00 USD Sale price $2,289.00 USD
Sale Sold out
visa visa master maestro diners club discover

Product Features

  1. One model, two modes, and three scenarios;
  2. Air source pressure gauge and safety valve, more secure to use;
  3. Selectatec Evaporator, easy replacement;
  4. Independent ACGO branch, one-button switch;
  5. Pre-calibration APL valve, the airway pressure is set in one step;
  6. High-capacity CO2 Absorbent tank, dial-lever type locking mechanism.

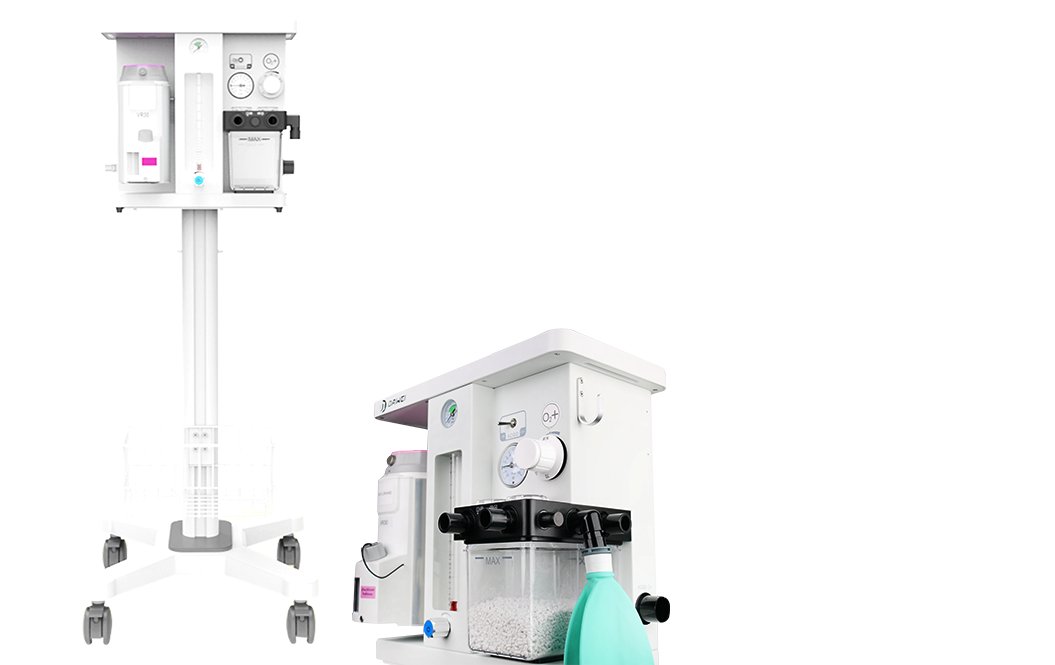

Highlights: One Model, Two Modes, and Three Scenarios

  • Two modes: closed loop + open
  • loop Car + desktop + on the wall

It can maximize the occupation of surgical space in pet hospitals. The top of the host is bearing, and other devices can be placed to improve space utilization.

    Highlight: Air Source Pressure Gauge and Safety Valve, Use More at Ease

    • A 4L high-precision flowmeter
    • 1Mpa Gas source pressure gauge
    • A 0.8Mpa safety valve

    Built-in air source safety valve, double protection of the gas road part, the use safer.



      Highlights: Evaporator

      • Selectatec Standard;

      (If you need to use sevoflurane in the later stage, there is no need to replace the whole machine, directly replace the evaporator, the upgrade is more convenient)

      • Precision calibration one by one;
      • Ioflurane, sevoflurane, and anflurane are available.

      Highlight: Independent ACGO Branch, One-button Switch

      • All-metal ACGO, switching switch;
      •  Independent ACGO interface.

      The two circuits are configured at the same time, one key switch, no need for more secondary pipeline change.

      Highlights: Simple Airway Pressure Management

      Pre-calibration APL valve, for different animals, needs different airway pressure,   pre-calibration scale, one step adjustment in place, without repeated adjustment; Sigh button; redesigned blocking valve for easy operation. HD airway pressure gauge to facilitate intraoperative observation.

      Highlights: Large Capacity CO2 Absorbent Tank, Dial Rod Type Locking Mechanism

      • 1400ml to avoid frequent replacement;
      • Pull rod type lock mechanism, gently dial can lock.

      Highlights: Rich Attachment Package

      Multiple size mask (6)

      Multiple specifications (17) 2.0mm-10.0mm Full-specification endotracheal intubation

      Product Parameter

      Physical specificationse

      Product size

      Overall dimensions (without trolley): H385mm, W405mm, D265mm

      Overall machine dimensions (including trolley): H1230mm, W535mm, D575mm

      Product weight

      10kg (without dolly, evaporator and accessories)

      14kg (incl. anaesthetic evaporator, excl. trolley and accessories)

      22kg (incl. trolley, accessories and anaesthetic evaporator)

      Max. load capacity of the top cover

      10kg

      Carrying handle

      Single carry handle, located in the middle of the top cover

      Trolley

      Dolly size

      Height 850mm, width 535mm, depth 575mm

      Trolley weight

      8kg

      Caster

      4 x, all four castors with brakes

      Anaesthetic gas absorber tank holder

      Standard

      Pneumatic system specifications

      Gas source gas type

      Oxygen

      Air source pressure range

      280-600kpa/40-87psi

      Interface type

      NIST

      Air source pressure gauge

      0-1Mpa/0-140psi

      Air supply safety valves

      Built-in

      Flow meter adjustment range

      0-4L/min (single tube oxygen flow meter)

      Evaporation tank base

      Single tank position, Selectatec interface

      Respiratory System Specifications

      Manual leather pouch interface

      Coaxial 22mm (outer)/15mm (inner) conical joint

      Suction connection

      Coaxial 22mm (outer)/15mm (inner) conical joint

      Exhalation port

      Coaxial 22mm (outer)/15mm (inner) conical joint

      ACGO interface

      Coaxial 22mm (outer)/15mm (inner) conical joint

      AGSS exhaust port

      30mm outer conical joint

      Airway pressure gauge

      -20cmH2O~100cmH2O

      APL Valves

      Adjustment range: 0~70cmH2O with one-touch closure button

      Sodium lime tanks

      Volume 1400ml

      Anaesthetic evaporators

      Type of evaporator (dosing method)

      Isoflurane (Pour-Fill, Key-Fill, Easy-Fill)

      Amflurane (Pour-Fill, Key-Fill, Easy-Fill)

      Sevoflurane (Pour-Fill, Key-Fill, Easy-Fill, Quik-Fil)

      Weight

      Empty: 4kg±0.3kg

      Full state: 5kg±0.3kg

      Capacity

      Core dry: 300ml~360ml

      Core wet: 240ml~300ml

      Between the maximum and minimum scale: 200ml~260ml

      Concentration range

      Isoflurane: 0-5vol,%

      Amflurane: 0-5vol,%

      Sevoflurane: 0-8vol,%

      Concentration accuracy

      ±0.25vol,% or ±20% of the set value, whichever is greater

      Passive AGSS

      Interface type

      30mm conical joint (outer)

      Exhaust gas recovery tank holder



      Support configuration

      Exhaust gas recovery tank 80mm diameter

      Maximum load capacity

      1kg

      Safety specifications

      Level of protection against electric shock

      BF type application section

      Liquid inlet protection level

      IPX1

      Disinfection and sterilisation methods

      Equipment with manufacturer's recommended disinfection and sterilisation methods

      Explosion protection class

      No explosion protection (general equipment), no flammable anaesthetics

      Movement class

      Handheld or mobile devices

      Environmental specifications

      Working environment

      Temperature: 10~40°C; Relative humidity 15%~95%; Atmospheric pressure: 70~106.7

      Storage environment

      Temperature: -20~60°C; Relative humidity: 10%~95%; Atmospheric pressure: 50~106.7
