DWanimal AIM-100 Veterinary Infusion Pump

DWanimal AIM-100 Veterinary Infusion Pump

Regular price $299.00 USD
Regular price $369.00 USD Sale price $299.00 USD
Sale Sold out
visa visa master maestro diners club discover

Features:

  • 4.3-inch LCD touch screen for easy operation and clear visualization
  • Compact and lightweight design, easy to carry and install
  • User-friendly interface with audio and visual alarm system
  • Built-in lithium battery, working time about 5 hours after fully charged
  • Multiple infusion modes to meet different infusion requirements
  • Advanced pressure detection technology

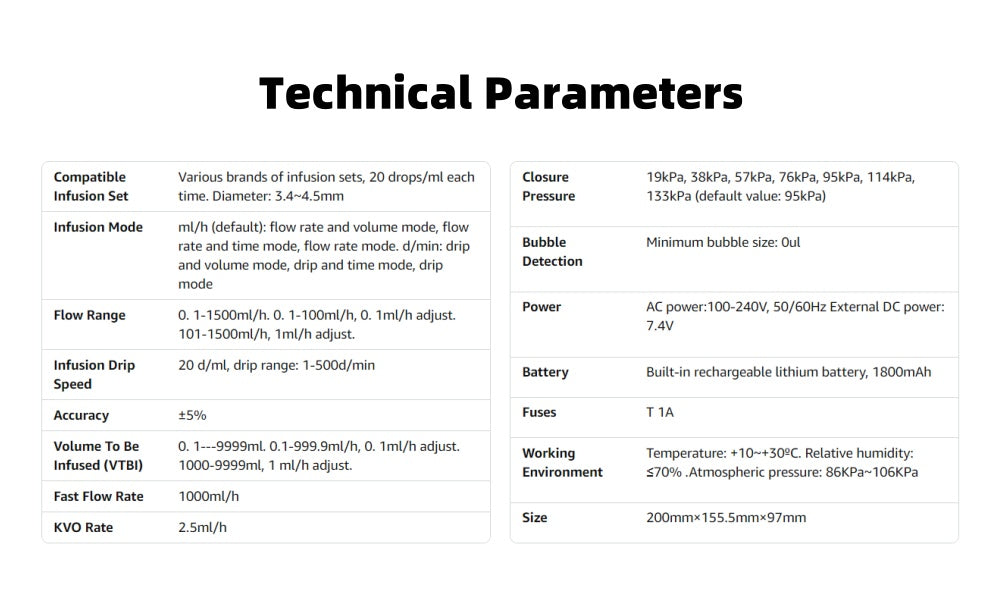

Model

IP01

Applicable infusion set

Various brands of infusion sets, disposable 20 drops/ml.

Infusion set diameter: 3.4~4.5mm

Infusion mode

ml/h (default): flow rate and volume mode, flow rate and time mode, flow rate mode.

d/min: drip and volume mode, drip and time mode, drip mode

Flow rate range

0.1-1500ml/h

0.1-100ml/h in 0.1ml/h adjust

101-1500ml/h in 1ml/h adjust

Infusion drip speed

20d/ml, drip range: 1-500d/min

Infusion accuracy

±5%

Volume to be infused (VTBI)

0.1---9999ml

0.1-999.9ml/h, 0.1ml/h adjust

1000-9999ml, 1 ml/h adjust

Fast discharge flow speed

1000ml/h

KVO rate

2.5ml/h

Closure pressure

19kPa, 38kPa, 57kPa, 76kPa, 95kPa, 114kPa, 133kPa (default value: 95kPa)

Air bubble detection

Minimum bubble size: 0ul

Power supply

AC power supply:100-240V, 50/60Hz

External DC power supply: 7.4 V

Battery

Built-in rechargeable lithium battery, 1800mAh

Battery working time

Approx. 5 hours (infusion rate of 100 ml/h with new battery)

Fuses

T 1A

Operating environment

Temperature +10~+30ºC

Relative humidity ≤70%

Atmospheric pressure 86 KPa~106KPa

Storage environment

Temperature -10~+55ºC

Humidity  ≤80%

Screen

4.3'' LCD touch screen

Size

200mm×155.5mm×97mm
