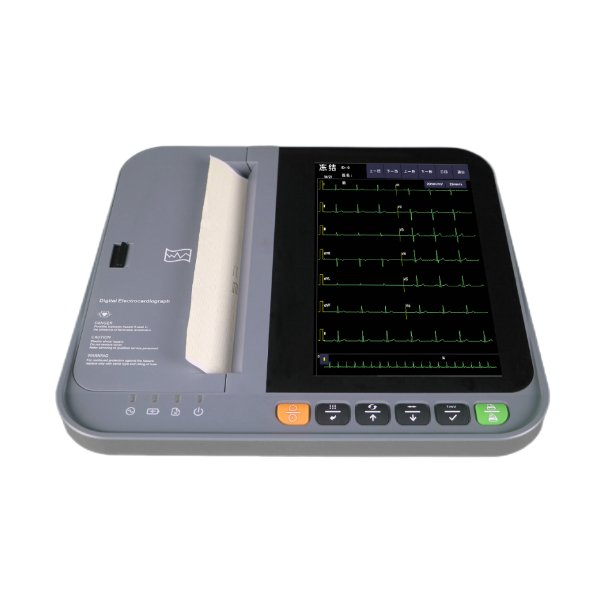

DWanimal DE-12 Veterinary ECG Machine
DWanimal DE-12 Veterinary ECG Machine
DE-12 ECG Machine Specifications
Functional features
● Support languages: CHN / ENG / RUS / FREN / GER / PORTU / SPAN
● Lead synchronous ECG acquisition;
● Equipped with high speed and high sensitivity hot spot recording system, with print trace depth adjustment function;
● 10.2-inch high-definition and wide-angle color LCD screen, capacitive touch control, 12-lead display;
● Six ECG record combination modes;
● Single line /3 channel/(3+R) channel/(+l+V5) channel/double line 6 channel/single line 6 channel/single/double line 12 channels eight ECG display combination mode;
● Accurate ECG automatic diagnosis function, with heart rate exceeding alarm function, and set whether to print the measurement and analysis report;
● Full keyboard Chinese touch input (pinyin and wubi optional), can enter hospital and patient information;
● With real-time ECG waveform freezing function, it is easy to grasp the patient's important ECG waveform;
● Manual, automatic, rhythm, physical examination and other operating modes;
● With RS232 communication interface, USB interface and LAN network interface;
● External large capacity SD card /USB memory, can achieve the storage, playback and printing of historical data on the computer;
● Built-in large capacity any ion rechargeable battery, and a special charging circuit and perfect battery management and protection system;
● With lead off detection function, with paper shortage detection function;
● Wide power supply design, suitable for 110-230, 50/60hz ac power supply.
● Memory capacity can be expanded by U disk /SD card.
★ Can be connected to the ECG workstation, with a strong patient file management function, can store up to hundreds of thousands of ECG reports;
★ 12-lead automatic ECG analysis system: ECG automatic diagnosis function, automatic ECG measurement and analysis for doctors' reference;
★ High resolution thermal matrix printout; Baseline stability test to ensure a neat and beautiful ECG waveform every time;
CMRR
DE03、DE06 |
≥100dB |
DE12 |
≥100dB |
HE12 |
≥120dB |
Heart Rate
DE03、DE06 |
30bpm~300bpm(±1bpm) |
DE12 |
30bpm~300bpm(±1bpm) |
HE12 |
30bpm~300bpm(±1bpm) |
Technical indicators
Common mode rejection ratio (CMRR) |
≥100dB |
|
The input circuit |
Float, defibrillation |
|
Input loop current |
≤0.1чA |
|
Sampling rate |
12bit/1000HZ |
|
Operating mode |
Manual/automatic |
|
The filter |
Working filter, electromechanical filter |
|
Drift filtering |
Anti-drift system |
|
The input impedance |
>50MΩ |
|
Patient leakage current |
<10чA |
|
Fuse specification |
T1.6A/ 250V Ø5×20 |
|
Recording paper specification |
Scroll/folding thermal recording paper (210mm ~ 216mm self-adaptive) |
|
Calibration voltage |
1mV±3% |
|
Polarization resistance voltage |
±300mV |
|
Time constant |
≥3.2s |
|
Frequency response |
0.05-150Hz |
|
Noise level |
≤15чVp-p |
|
Minimum detection signal |
≤20чV |
|
The feeding speed |
12.5 mm/s, 25mm/s, 50mm/s |
|
The sensitivity |
5, 10, 20 (mm/mV ±5 %) |
|
record |
Twelve high resolution thermal print |
|
The battery |
14.52V/5.2Ah(75.504Wh) |
|
Overall dimensions |
365mm×306mm×109mm |
Net weight: 4.25 KG |
Size of packing box |
400mm×350mm×200mm |
Gross weight: 6.2 KG |
Standard accessories:
Software:
Patient data
Working status
Settings
Create New Case
Software interface
More models coming soon......
Product |
Model No. |
Monitor |
Width of printer paper |
Auto-analysis |
3-Channel |
DE-03 |
7” touch screen |
80mm |
Yes |
6-Channel |
DE-06 |
7” touch screen |
112mm |
Yes |
12-Channel |
DE-12 |
10.2” touch screen |
210mm/215mm/216mm |
Yes |
HE-12 |
13.3” touch screen |
210mm/215mm/216mm
|
Yes
|
|
Workstation |
Connect to PC, adapt to every model of ECG machine |
