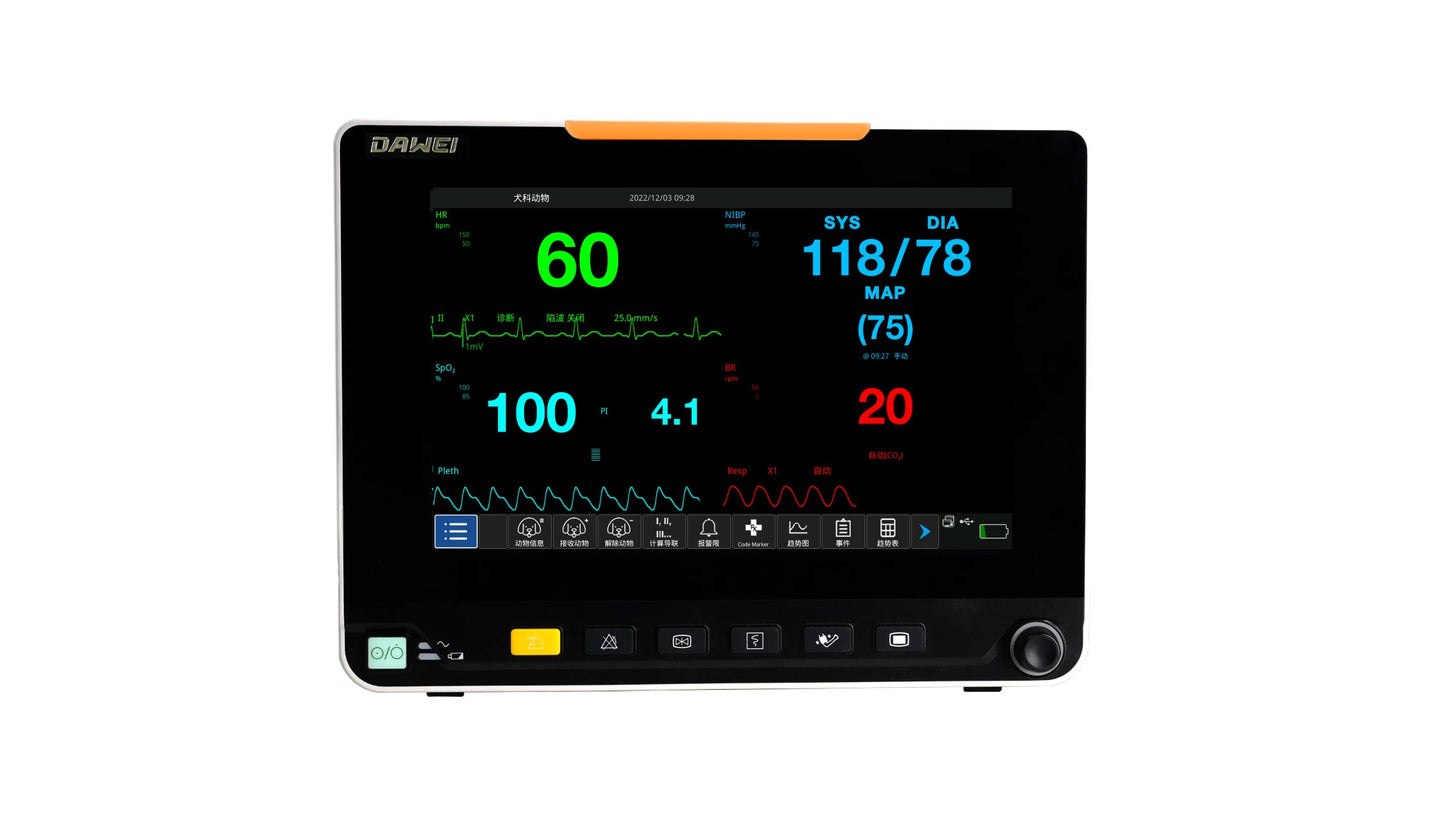

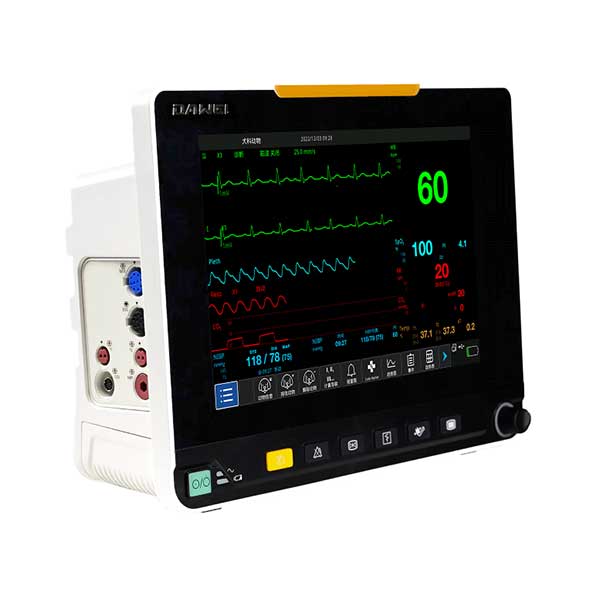

DWanimal HD11 Veterinary Patient Monitor

Features:

Monitoring range: ECG, SpO2, NIBP, RESP, Temperature, Heart Rate

1. 12.1 inch color LCD touch screen, full view display, high resolution 1280×800dpi, screen brightness 10 levels adjustable;

2. Reserved ETCO2 interface to support plug-and-play CO2 module (mainstream CO2 or sidestream CO2);

3. Tiled menu selection, clear and easy to check, precise response;

4. Animal exclusive ECG algorithm, anti-electrotome, anti-interference, good performance, full function, all-round use;

5. Seconds level data refresh frequency, real-time analysis and monitoring of animal blood oxygen status;

6. More than three ways to enter the alarm limit setting, simple operation for new receiving animal;

7. Support USB configuration for fast import/export, to meet the needs of different departments;

8. Large storage capacity: at least 1200 hours of continuous monitoring data storage;

9. Rich and clear interface layout, quick access to the settings area through category display;

10. Continuing the operation habit, equipped with the parameter color adjustment function, can customize the background, waveform and font color according to the demand;

11. More than 5 languages operation interface, friendly operating system, convenient operation of patient information entry/deletion/saving;

12. 20 kinds of arrhythmia event alarm, support ST segment analysis function;

13. Trigger printing function (optional), every abnormality is recorded in time; improve the efficiency of communication between nurses and doctors;

14. Double overpressure protection from NIBP software and hardware to ensure patient safety;

15. Standard interface, large font, respiratory oxygenation diagram, trend coexistence, seven ECG calculation leads displayed on the screen (12 ECG calculation displayed on the screen if choose 12 leads);

16. International standard, double sound and light three-level alarm, more safe and more professional;

17. ≥13CM dual side alarm lights, 360 degree visibility, easier to monitor patient status information;

18. Independent alarm tone and pulse tone, when the alarm tone is silent, the pulse tone continues to correspond. When the pulse tone is silent, the alarm tone can be activated normally;

19. Parameter color adjustment function, medical staff can define the color of background, waveform and font;

20. Large capacity built-in lithium battery, continuous working time not less than 300 minutes;

21. When the waveform screen is frozen, real-time parameters are continuously displayed in the parameter area. The frozen waveform can be flipped back and forth along the time axis;

22. Anti-defibrillation, anti-electrotome, anti-grid, anti-myoelectric interference;

23. Low battery power alarm, will not lose data at critical moment;

24. Support USB off-board firmware upgrade, free from area restrictions;

25. Optional for built-in thermal matrix recorder, three trace waveform;

26. Measurement/display units can be selected to truly understand different customer needs; (e.g. cm/inch, °C/°F);





Standard configuration: ECG, SpO2, NIBP, RESP, Temperature, Heart Rate;

Optional configuration: Printer, 12 leads ECG, Masino SpO2, Suntech NIBP, mainstream CO2 or sidestream CO2.



Specifications:

ECG:

Leads: 3/5 leads; 7 ECG calculation leads can be displayed on the screen at most;

Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V leads

Measuring range: 15~350bpm

Resolution: 1bpm

Accuracy: the larger one between ±2% or ±2bpm

Frequency response: 0.67Hz-40 Hz

S-T segment monitoring: -2.0mV~2.0mV

Electrode drop indication: sound and light indicator

Sweep rate: 6.25, 12.5, 25, 50mm/s

Gain : ×0.125, ×0.25, ×0.5, ×1, ×2, ×4, Auto

Electrical calibration: 1mV+5%

Protection isolation withstands 4000V/AC/50Hz

Lead cable: 3/5 leads

Standard configuration: universal five-lead buckle type ECG cable

Optional configuration: research-specific ECG cable, customized clips

Alarm: upper and lower limits of alarm value can be set, automatic record; alarm review



SpO2:

Display: SpO2 value, pulse column figure, waveform, pulse value

Measuring range: 0%-100%  equine/canine/feline

Resolution: 1%

Precision: ±3% (less than 70% is not defined)

Pulse Rate:

     Measuring range:30～280bpm

Pulse precision:±2bpm

Alarm range: 20～300bpm, the lower limit can not be greater than the upper limit

Sensor:

Standard configuration: canine clips, feline clips

Optional configuration: bundled

Alarm value: the upper and lower limit can be set, automatic record



NIBP:

Method: Oscillometric method

Measuring parameter: Systolic pressure, Diastolic pressure, Mean pressure

Mode: Manual, Auto, STAT

Unit: optional for mmHg/ KPa

Measurement interval time of automatic measurement mode: 2.5~120min, ten-level adjustable

Overpressure protection: software and hardware overpressure protection

Measuring range:

	Equine	Canine	Feline
SYS（mmHg）	40~255	40~200	40~135
DIA（mmHg）	20~205	20~150	20~100
MEAN（mmHg）	27~220	27~165	27~110



Cuff pressure range: 0-300 mmHg

Cuff:

Standard configuration: 4-8cm, 6-11cm, 7-13cm, 8-15cm

Optional configuration: no

Alarm setting range:

SYS: 40~255mmHg, the lower limit can not be greater than the upper limit (equine),

        40~200mmHg, the lower limit can not be greater than the upper limit (canine),

        40~135mmHg, the lower limit can not be greater than the upper limit (feline);

DIA: 10~195mmHg, the lower limit can not be greater than the upper limit (equine),

        10~150mmHg, the lower limit can not be greater than the upper limit (canine),

        10~110mmHg, the lower limit can not be greater than the upper limit (feline);

MEAN: 20~215mmHg, the lower limit can not be greater than the upper limit (equine),

        20~165mmHg, the lower limit can not be greater than the upper limit (canine),

        20~125mmHg, the lower limit can not be greater than the upper limit (feline);

Alarm display error: Not greater than ±5% of the set value



Temperature:

Measuring Range: 15℃～50℃

Measuring error: not more than ±0.1℃

Resolution: 0.1℃

Accuracy: ±0.2℃ (including sensor error)

Probe:

Standard configuration: permanent body surface temperature probe

Optional configuration: Esophageal temperature probe, rectal temperature probe

Alarm value: the upper and lower limit can be set, automatic record

Alarm: all monitoring parameters can be set for alarm, and it has alarm devices of sound and light, and can cancel the alarm.



RESP:

Method: Thoracic Electrical Bioimpedance

PR Measurement Range and Accuracy

Measurement range: equine: 0~ 120rpm

                 canine/feline: 0~150rpm

Measurement Accuracy:10~150 rpm ±2 rpm or ±2%, the larger one;

                    0~9 rpm, not define.

PR measurement resolution

Resolution: 1 rpm

Suffocation alarm delay time

Set as: 20s, 25s, 30s, 35s, 40s, 45s, 50s, 55s, 60s

PR alarm limit range

alarm limit can be set to: 2~150rpm
