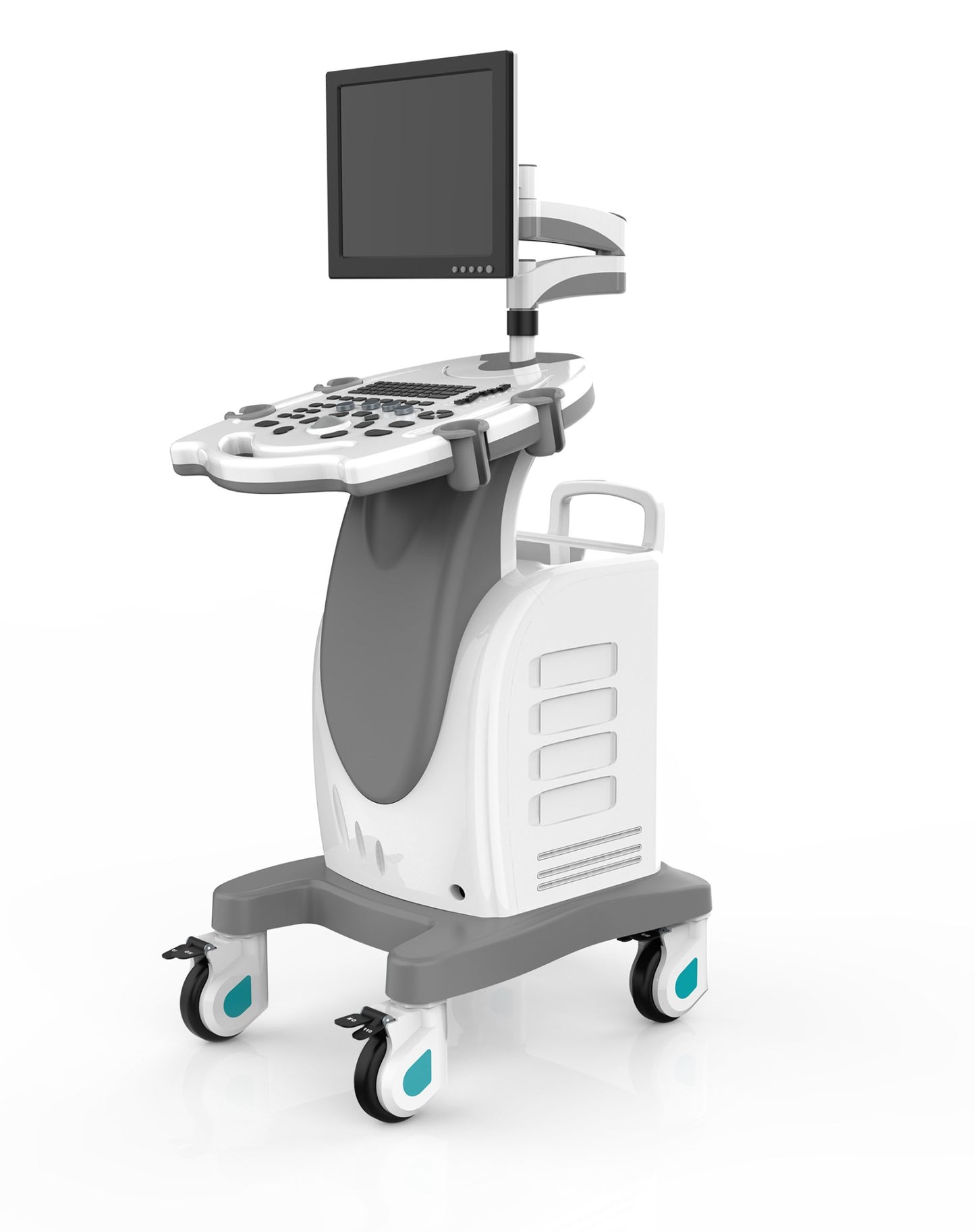

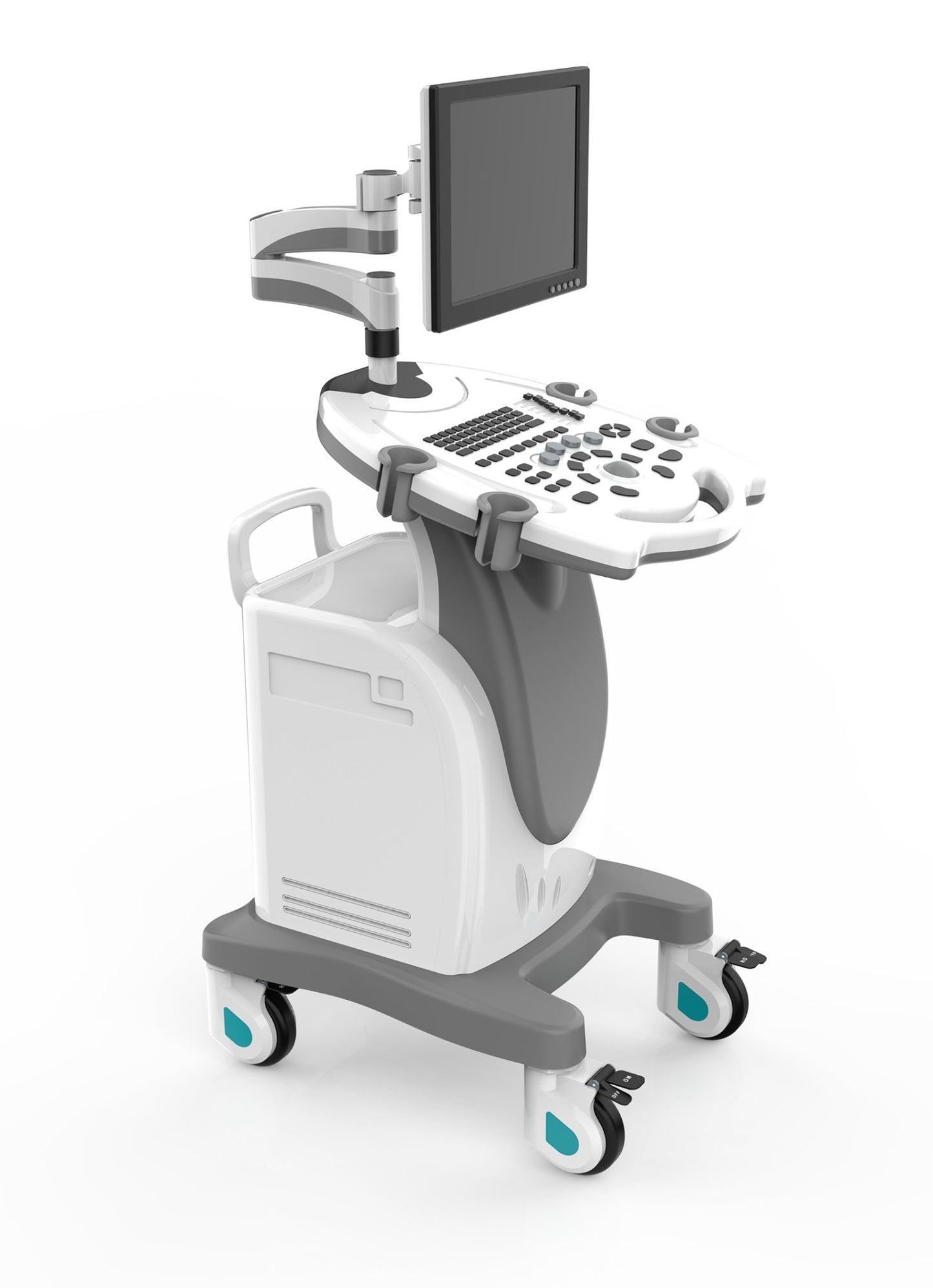

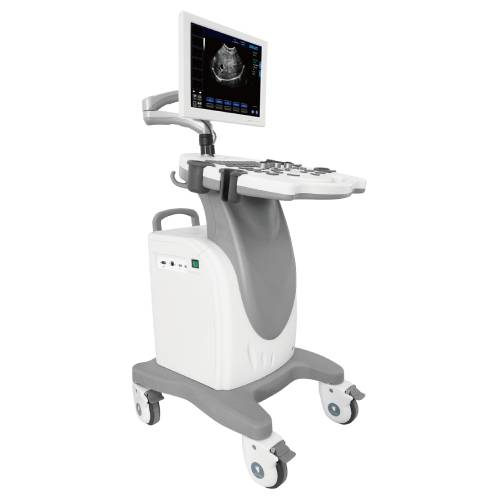

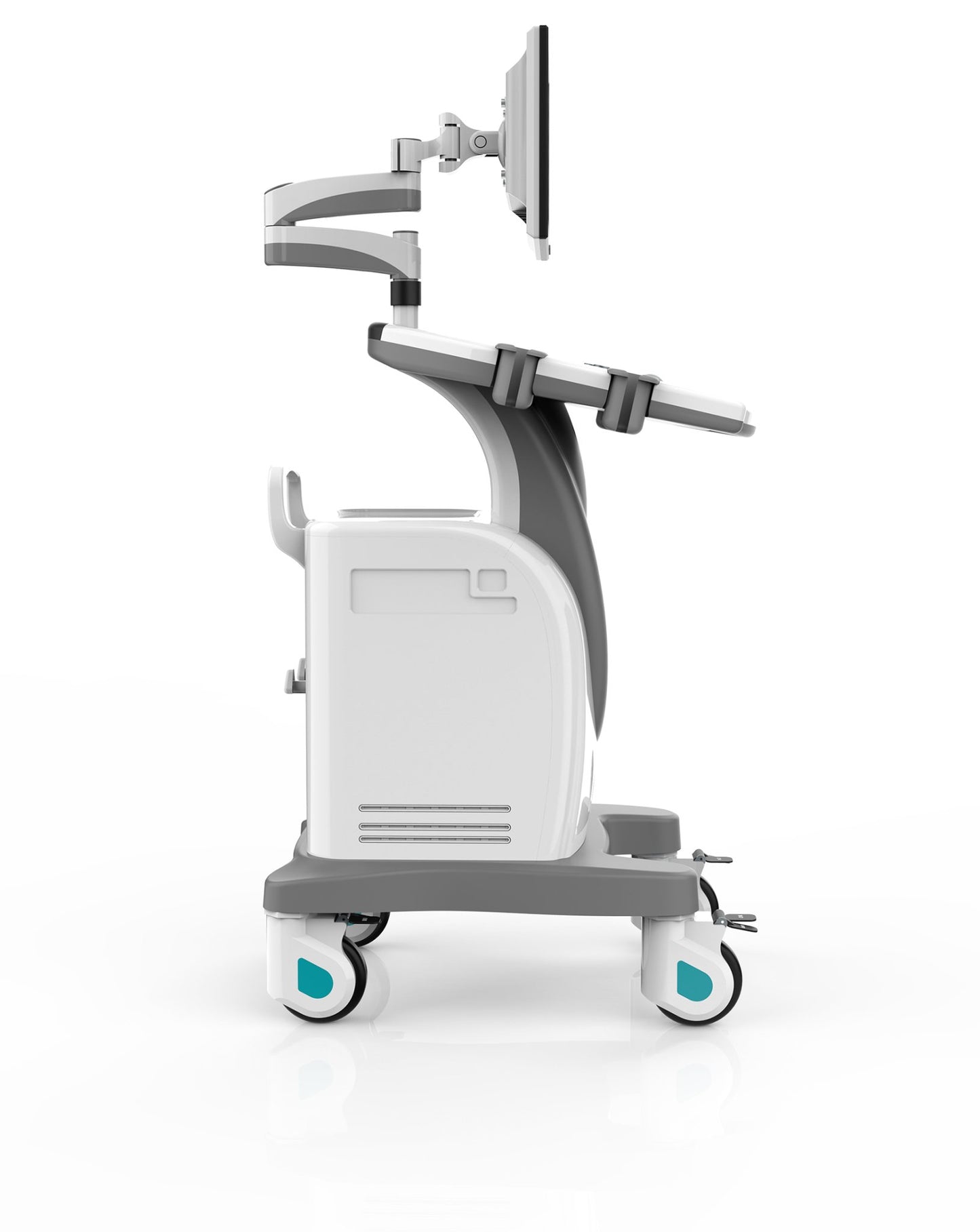

B/W Veterinary Ultrasound Scanner MT35

1. Product name: MT35  full digital ultrasound diagnostic instrument

2. Use and requirements:

2.1 mainly used in the examination of animal abdomen, reproductive system, urinary system and other organs.

3.Main specifications and system overview:

3.1. Operating system: Windows 7

3.2. Display mode: B, B+B, B+M, M, 4B,PW

3.3. Display: 15 inch LED screen

3.4. System languages: Chinese, English,

3.5. Zoom: 40 levels adjustable,4 times

3.6. Scanning range is adjustable: 7.5: 79-100%; 3.5: 46-60%; 6.0: 68-90%; 6.5: 91-120%

3.7. With one-key full screen function

3.8. One-click access to information entry function

3.9. Storage:Host hard drive 128G, U disk storage (storable and readable)

3.10. Single storage image time ≤ 1 second

3.11. Display the image storage preview window in real time, and perform operations such as deletion and sharing at any time

3.12. Puncture guidance function, real-time display of depth following cursor

3.13. Probe automatic freezing function, the time can be set for 10-40 minutes

3.14. Movie playback: 200-1500 frames

3.15. Support PW mode, can measure blood flow, blood flow peak, pulse index, etc.

3.16. Built-in Chinese input method, full-screen annotations can be switched freely

4.Probe frequency:

4.1 frequency: 3.5MHZ: 2.0MHz, 3.0MHz, 3.5MHz, 6.0MHz;

             6.5MHz: 5.5MHz, 6.0MHz, 6.7MHz, 7.5MHz;

             7.5MHz: 7.5MHz, 8.6MHz, 10MHz, 12MHz;

             6.0MHz: 5.5MHz, 6.0MHz, 6.7MHz, 7.5MHz

4.2 Harmonic frequency range:3.5MHZ: 4.0MHz, 4.3MHz, 4.4MHz, 4.6MHz;

                         6.5MHz: 5.7MHz, 6.0MHz, 6.3MHz, 6.7MHz;

                         7.5MHz: 8.0MHz, 8.6MHz, 9.2MHz, 10MHz;

                         6.0MHz: 5.5MHz, 5.7MHz, 6.0MHz, 6.3MHz;

5. 2D imaging mode:

5.1 Gray scale: 256 levels

5.2 TGC: 8 segments adjustable

5.3 Total Gain: 2-100 in steps of 2

5.4 Dynamic range: 64-192dB, Step 2, with independent buttons, 65 levels of visual adjustment, cyclic adjustment.

5.5 7 frame-related, with independent buttons, visually adjustable, cyclically adjustable 1-7

5.6 5 lines-related, with independent buttons, visually adjustable, cyclically adjustable 1-5

5.7 Up and down mirroring, left and right mirroring, black and white mirroring

5.5. Bodymark: 20 (Horse*6,Cattle6,Sheep2,Dog*4,Cat*2)

5.6. Pseudo color: 8 kinds

6 Measurement and analysis function:

6.1 Measurement: distance, angle, area stenosis ratio, ventricular output, heart rate, obstetrics and other professional software measurement packages

6.2 The measurement unit can be switched between cm and mm

6.3 Transplant color ultrasound harmonic imaging technology to obtain more complete harmonic signals on the basis of the fundamental wave, and perfect image presentation brings confidence in diagnosis.

6.4 More than 4 inspection modes, not only the parameter combination is optimized in advance, but also the measurement software package and related reports follow.

6.5 Professional animal obstetric software packages: dogs, cats, horses, cattle, and sheep.

6.6 Report generation function: It has the functions of direct report editing, multi-image selection generation, storage, etc., and multiple report generation modes of one, two, four, and six, which are convenient for quick inspection operations.

6.7 Auxiliary equipment such as laser/inkjet printers and barcode scanners can be connected

8 Interface:

USB*1 ,DICOM*1,HDMI*1
