Veterinary Portable Ultrasound Machine S0

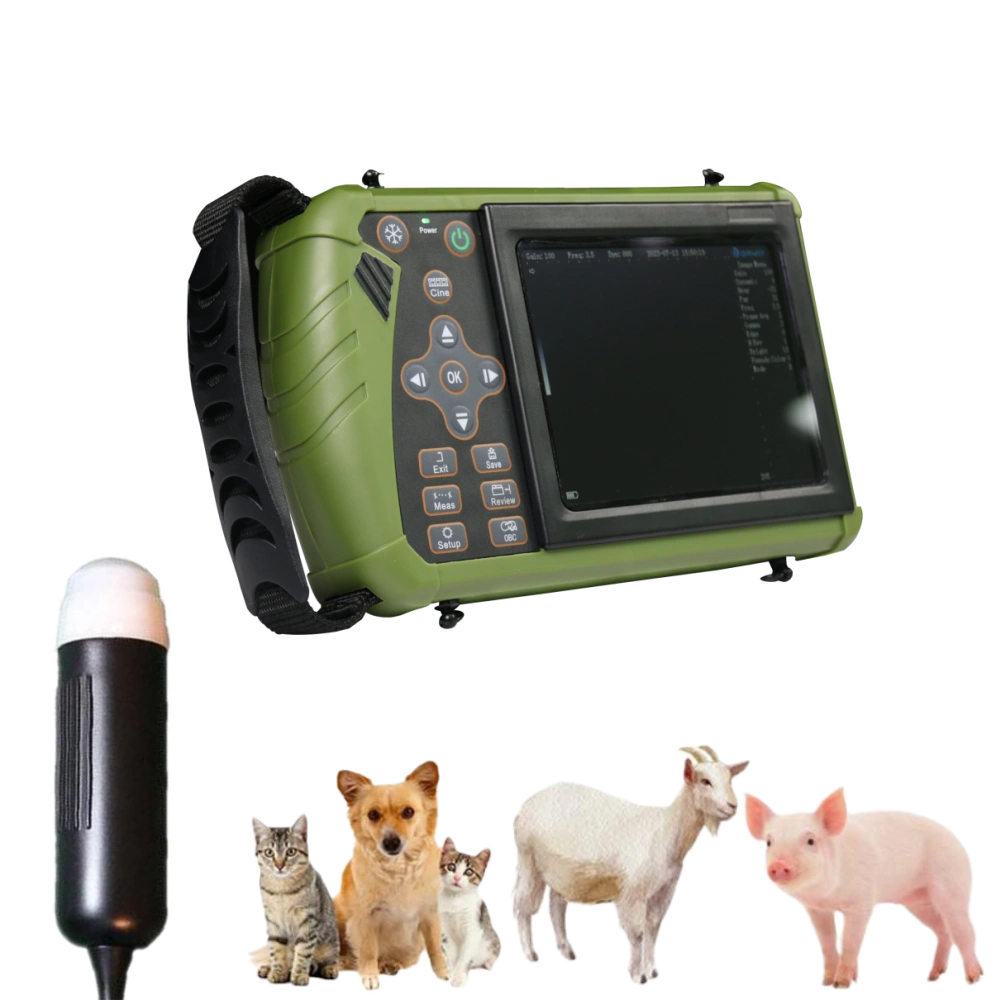

The Dawei S1 handheld veterinary ultrasound machine is specifically designed for the examination of abdominal organs in a wide range of medium animals, including dogs, cats, sheep, pigs and other species.
3.5MHz mechanical sector probe
- Frequency Range: 2.0 MHz,2.5 MHz,3.0 MHz, 3.5 MHz,4.0 MHz,5.0 MHz

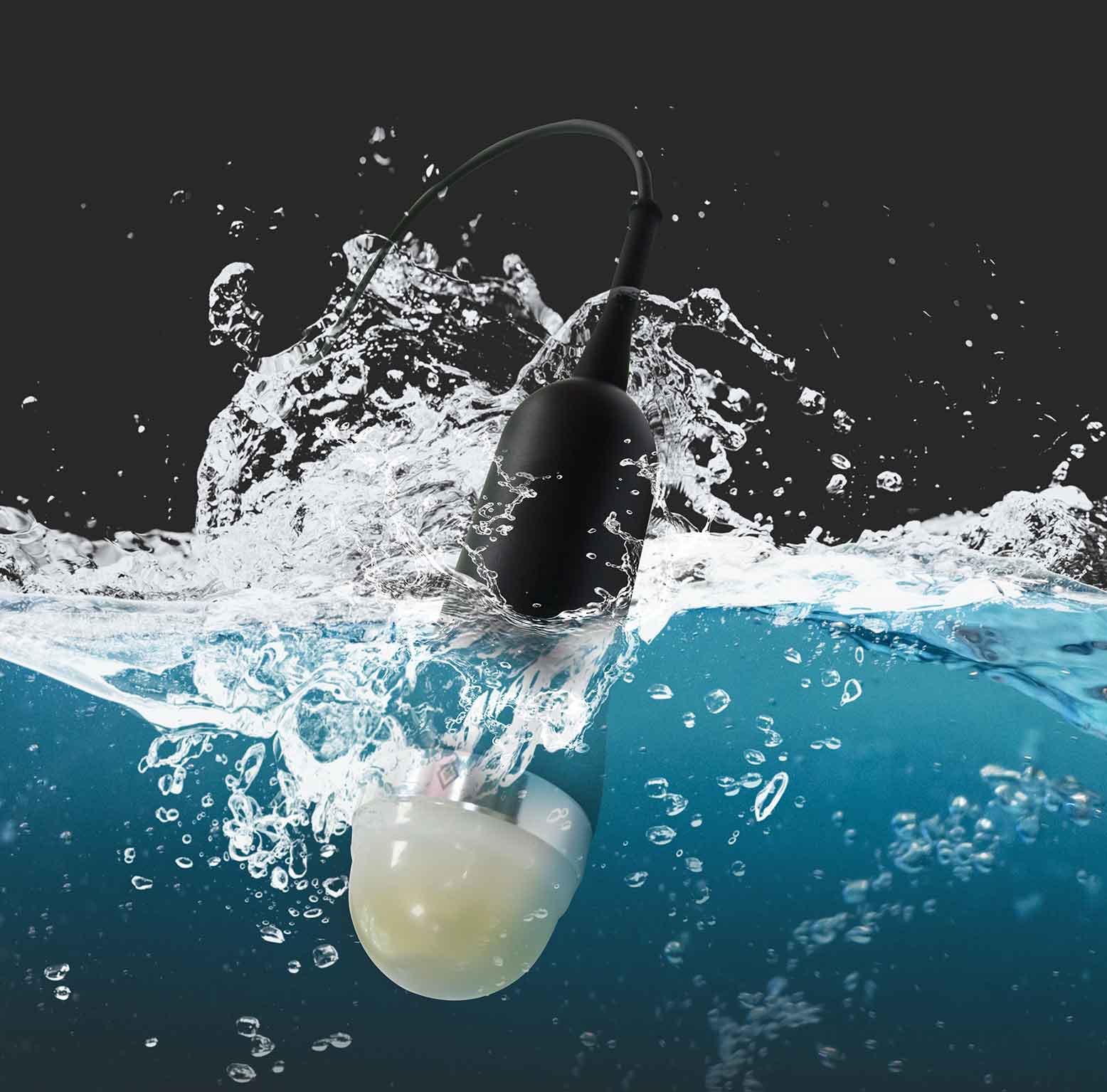

- Waterproof: Easy to clean.
- Display Depth: 46-208 mm
- Add airbag: Compared with traditional mechanical fan-scanning probes, the s0 probe with airbag has a longer service life
- Quick Probe Activation: The winter mode feature enables immediate probe used in cold conditions without preheating, enhancing efficiency in all weather conditions.
Obstetric Examination
Ovine
Crown-rump length (CRL)
Feline
- Head circumference (HC)
- Biparietal diameter (BPD)

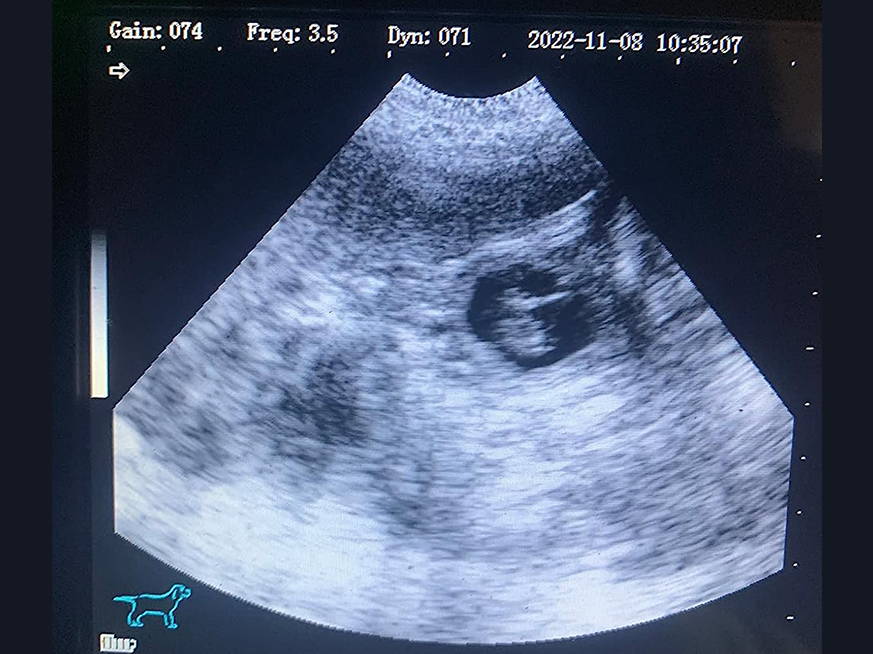

Canine
- Gestational sac diameter (GS)
- Crown-rump length (CRL)
- Head circumference (HC)
- Biparietal diameter (BPD)
Pig
- Heart length (HL)
- Stomach length (SL)

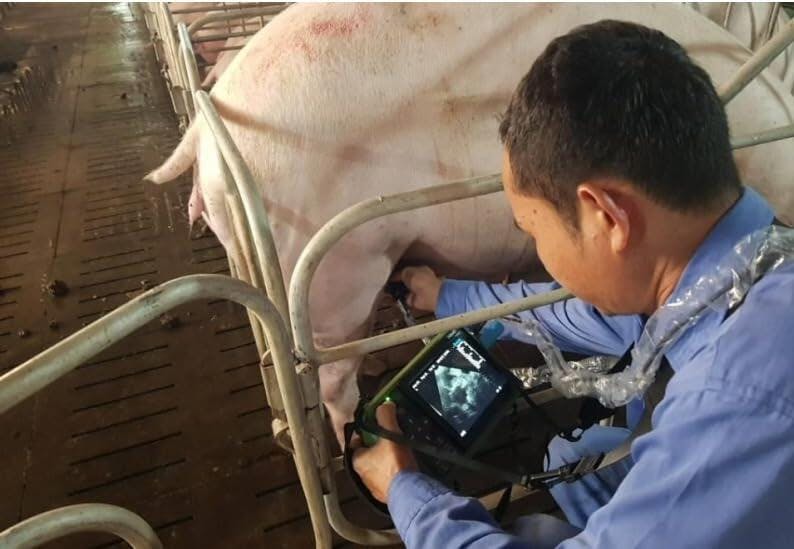

Using S0 for ultrasound examination of pigs
Diverse Application

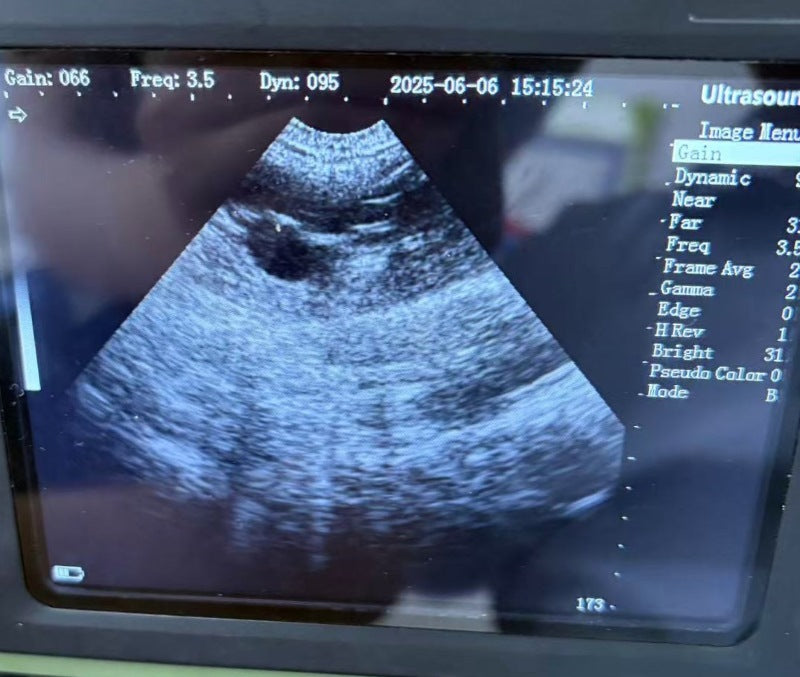

DAWEl ultrasound produces clear and detailed images that can accurately and reliably diagnose a wide range of diseases in animals.

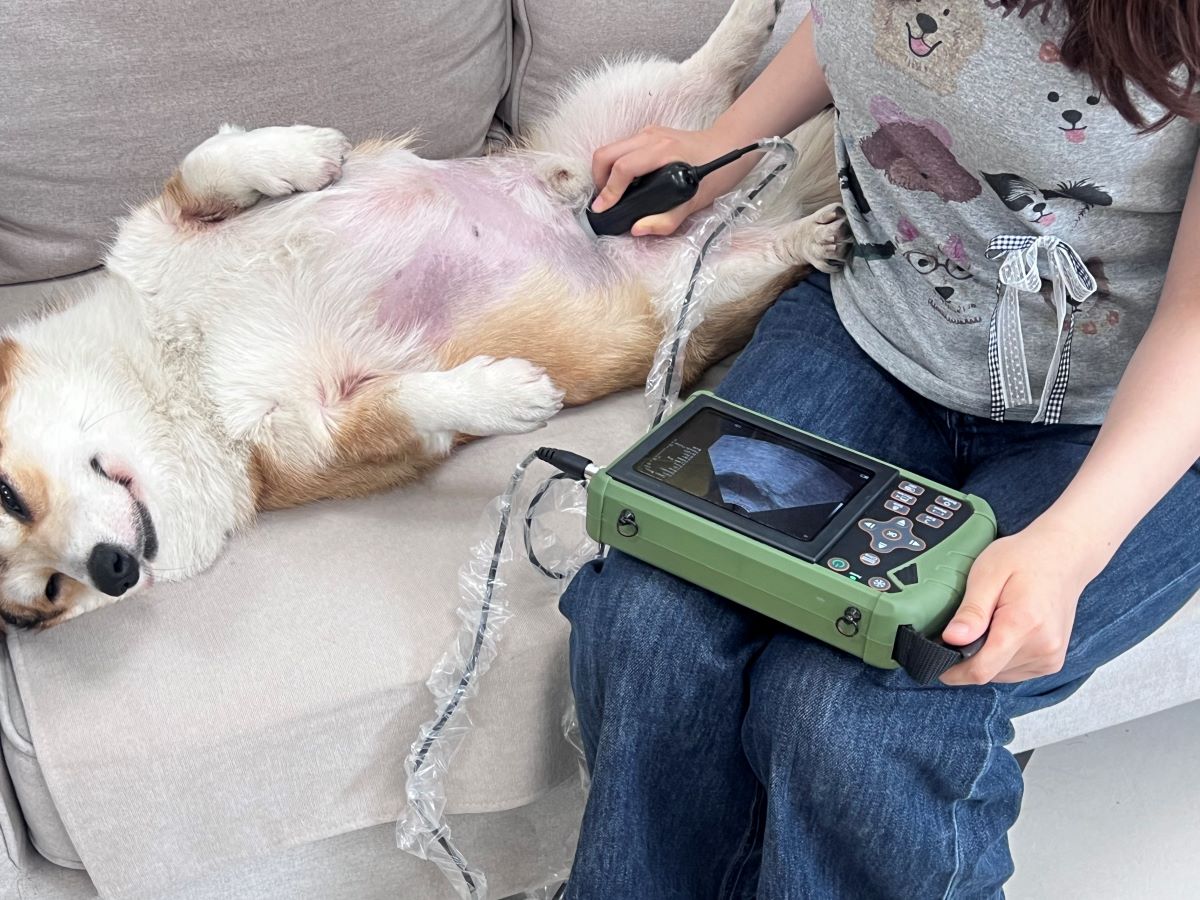

Whether used for pregnancy monitoring, internal organ evaluation or basic disease detection, the ultrasound images produced by this machine can provide veterinarians with valuable insights.
This greatly improves veterinary reproductive management, makes diagnosis more accurate, and improves breeding programs.

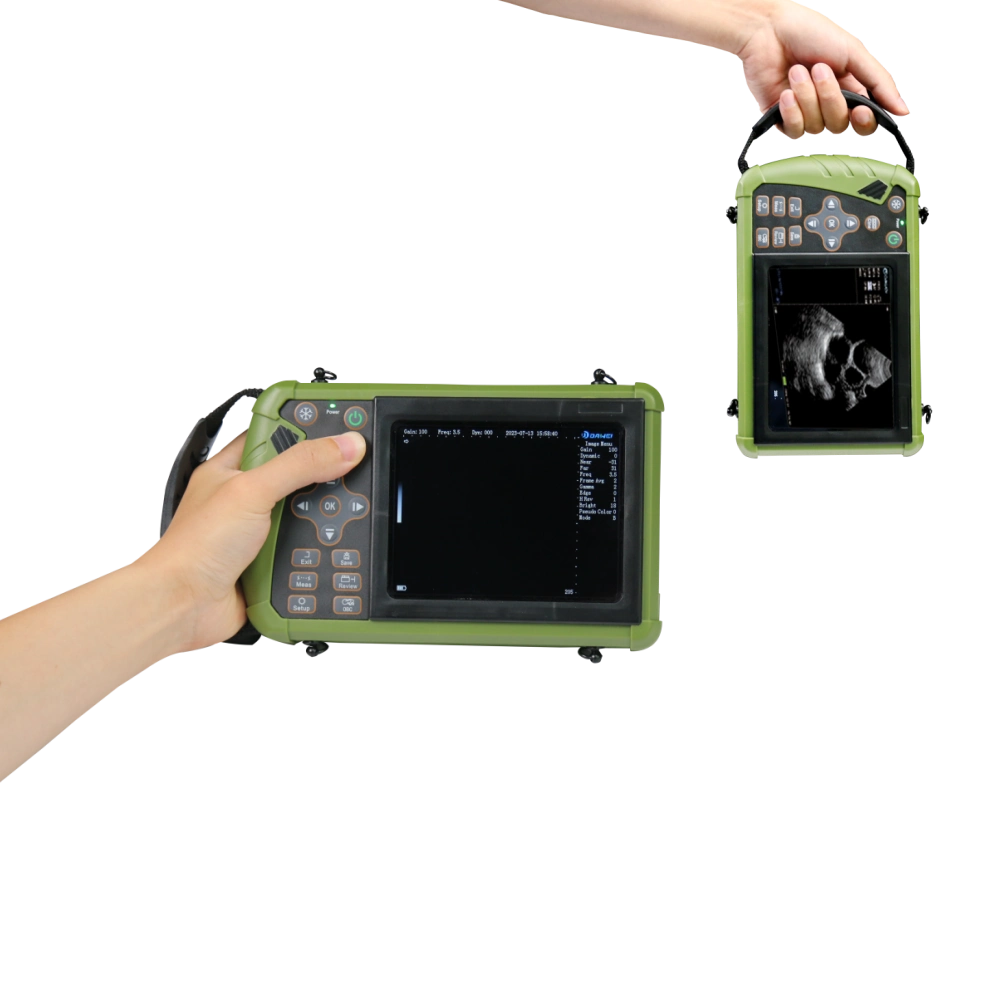

Ultra-lightweight portable design

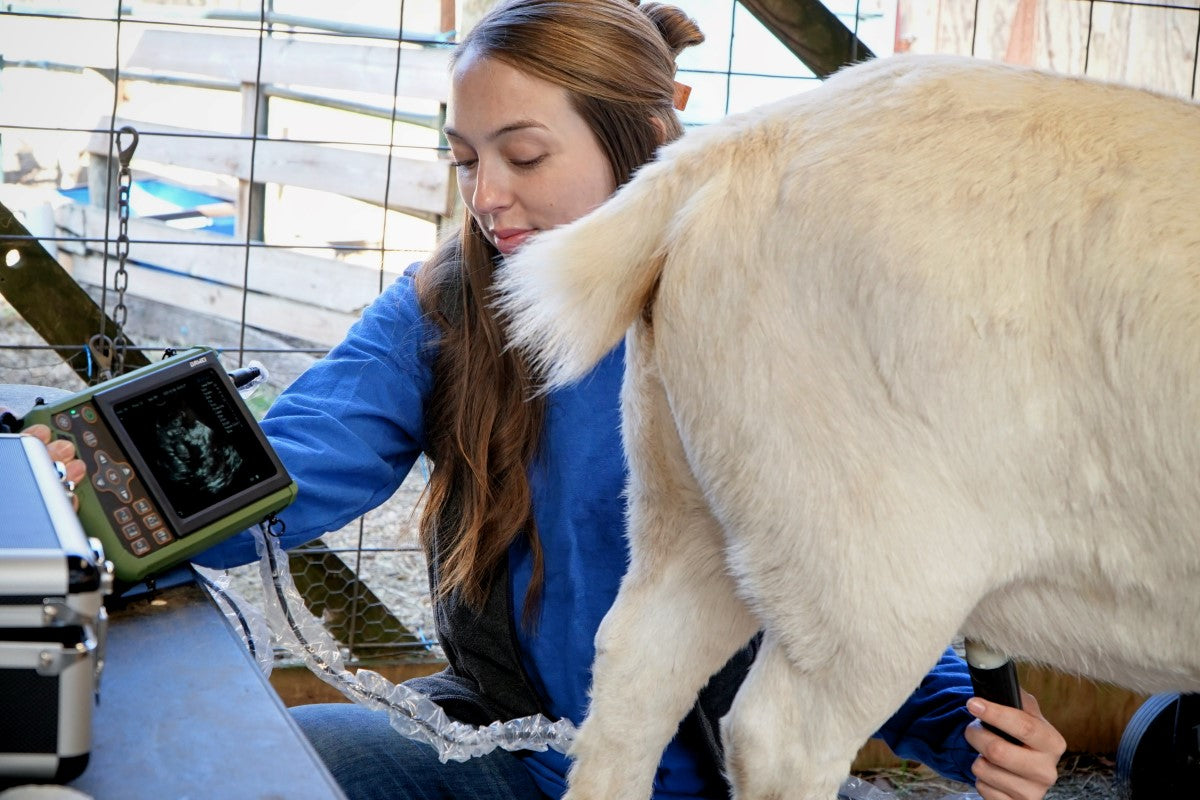

Weighing only 900g and equipped with a belt and a shoulder strap, it is easy to move around and can be used indoors and outdoors.
Detailed Design
S0 has built-in 8G storage and external U disk storage. It can browse pictures locally and transfer built-in pictures to U disk.

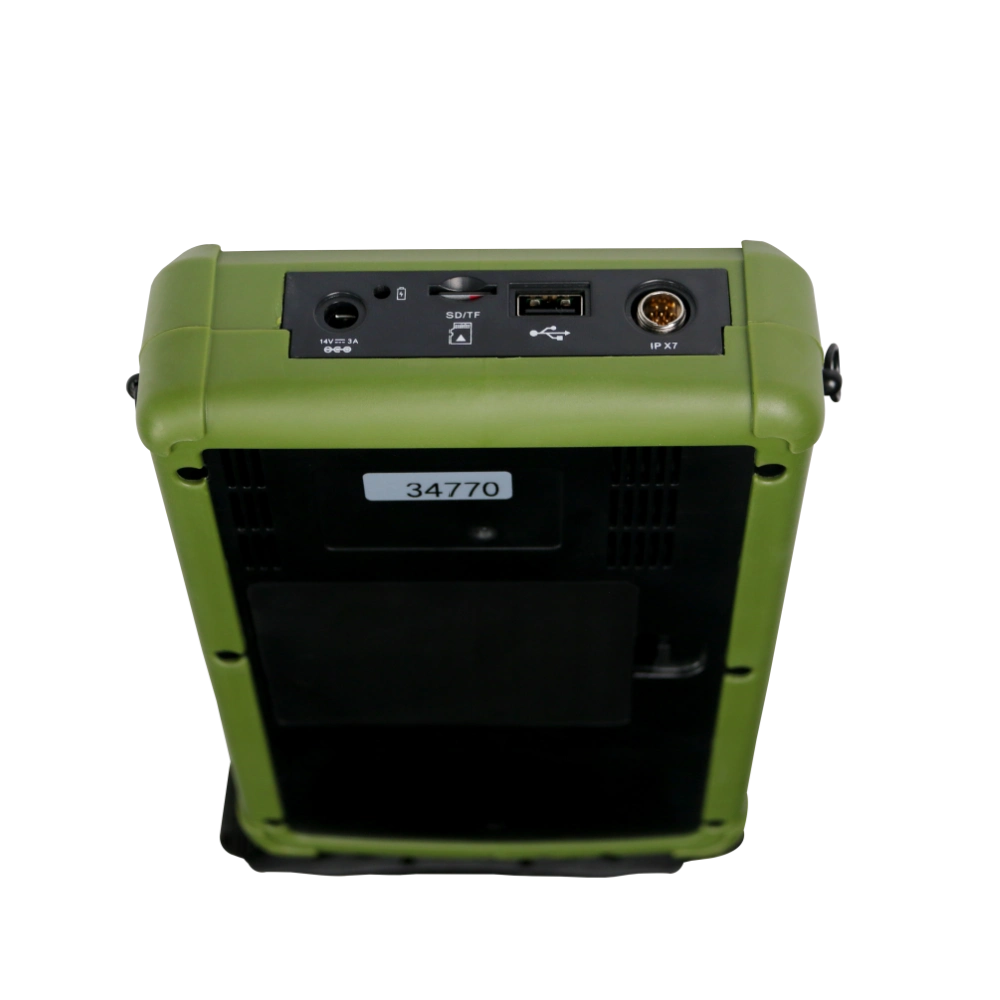

The host has TF card (memory card) and USB interface.Pictures are
directly stored in TF card (memory card), and storage can be expanded infinitely.
The images on the TF card can be called out frame by frame or continuously.
Easily Read Pregnancy Status
A User-friendly interface and easy-to-read screen ensure every new breeder to perform animal pregnancy diagnosis effortless. One-button operation reveals gestational age and expected due date instantly on-screen, offering a quick overview of the animal's pregnancy status.

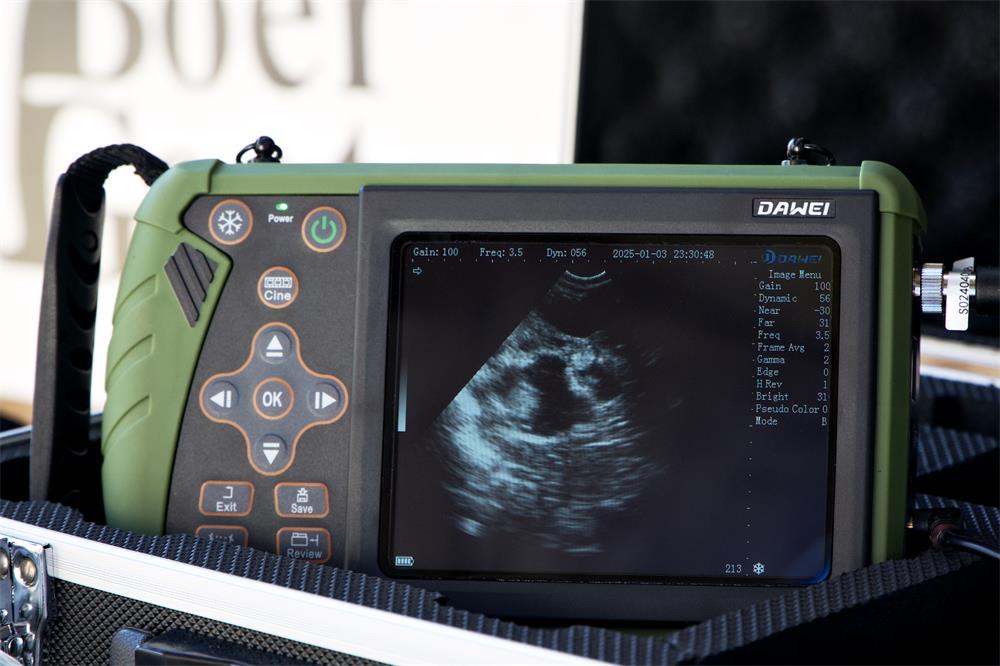

Display Mode
8 pseudo colors, suitable for people with different color sensitivities
16 levels of magnification, clearer details
256 levels of grayscale, more delicate imaging
Parameters & Information
Technical Parameters
- Display: 5.6-inch LED display;
- Scanning method: 3.5M mechanical fan scanning;
- Operation interface: Chinese/English;
- Display mode: B, B+B, 4B;
Body position mark: ≥17 types; - Frequency conversion: 2.0MHz, 2.5MHz, 3.5MHz, 4.0MHz, 5.0MHz;
- Character display: gain, frequency, dynamic, date, time;
- Movie playback: ≥256 frames, can be played back continuously or viewed frame by frame;
- Storage: built-in 8G storage, external U disk storage, can browse pictures locally, can transfer built-in pictures to U disk;
- Gray scale: 256 levels;
- Dynamic range: 0-135dB;
- Display depth: 126-307mm;
- Display magnification: 16-level magnification;
- Gain range: 0~100dB; Near field adjustment range: -31~0;
- Far field adjustment range: 0~31;
- With winter mode, parameter mode, standby protection, and custom pregnancy week settings;
Main Engine
- Size: 240x120x45mm (length x width x height)
- Weight: 900g
After-sales Service
Two-year free warranty, lifetime warranty
Free remote training
