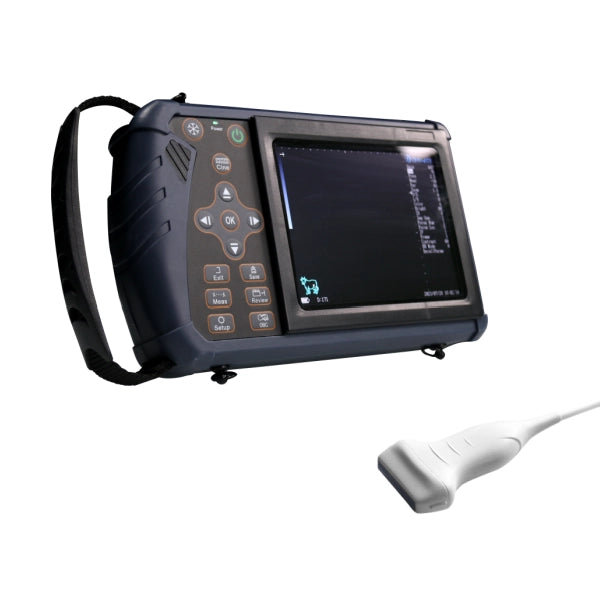

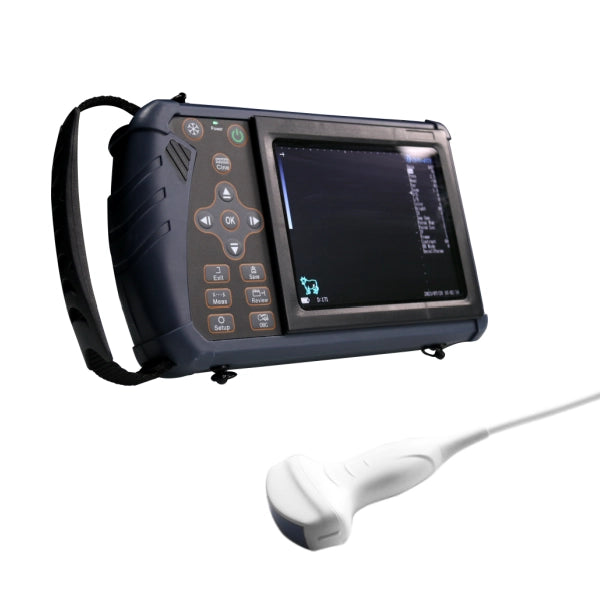

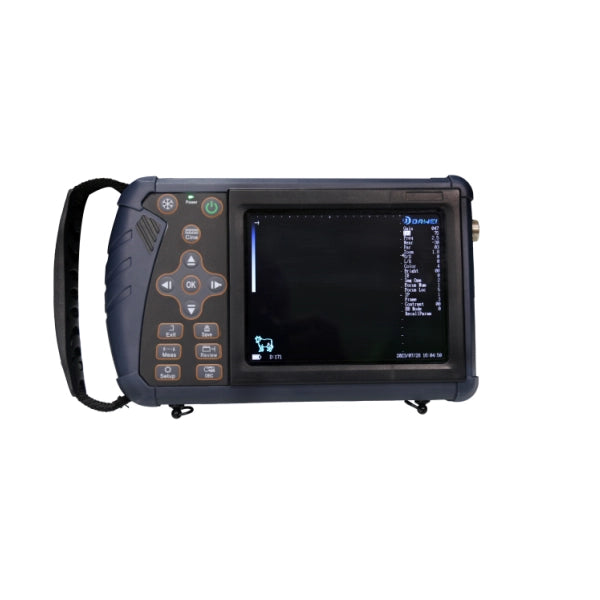

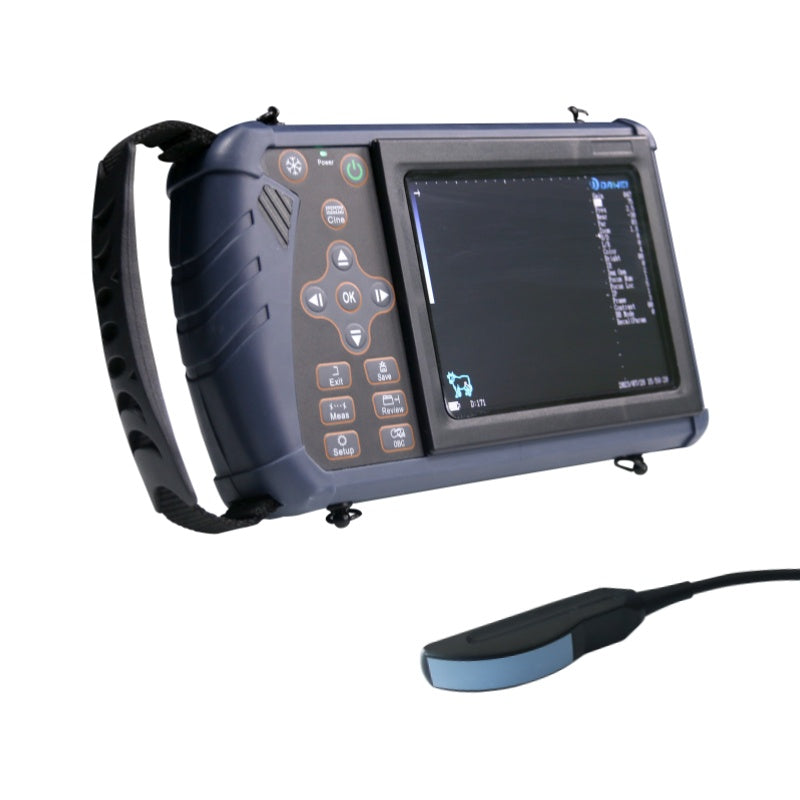

Veterinary Portable Ultrasound Machine S1
The Dawei S1 handheld veterinary ultrasound machine is specifically designed for the examination of abdominal organs in a wide range of animals, including cattle, horses, dogs, cats, sheep, pigs and other species.
-

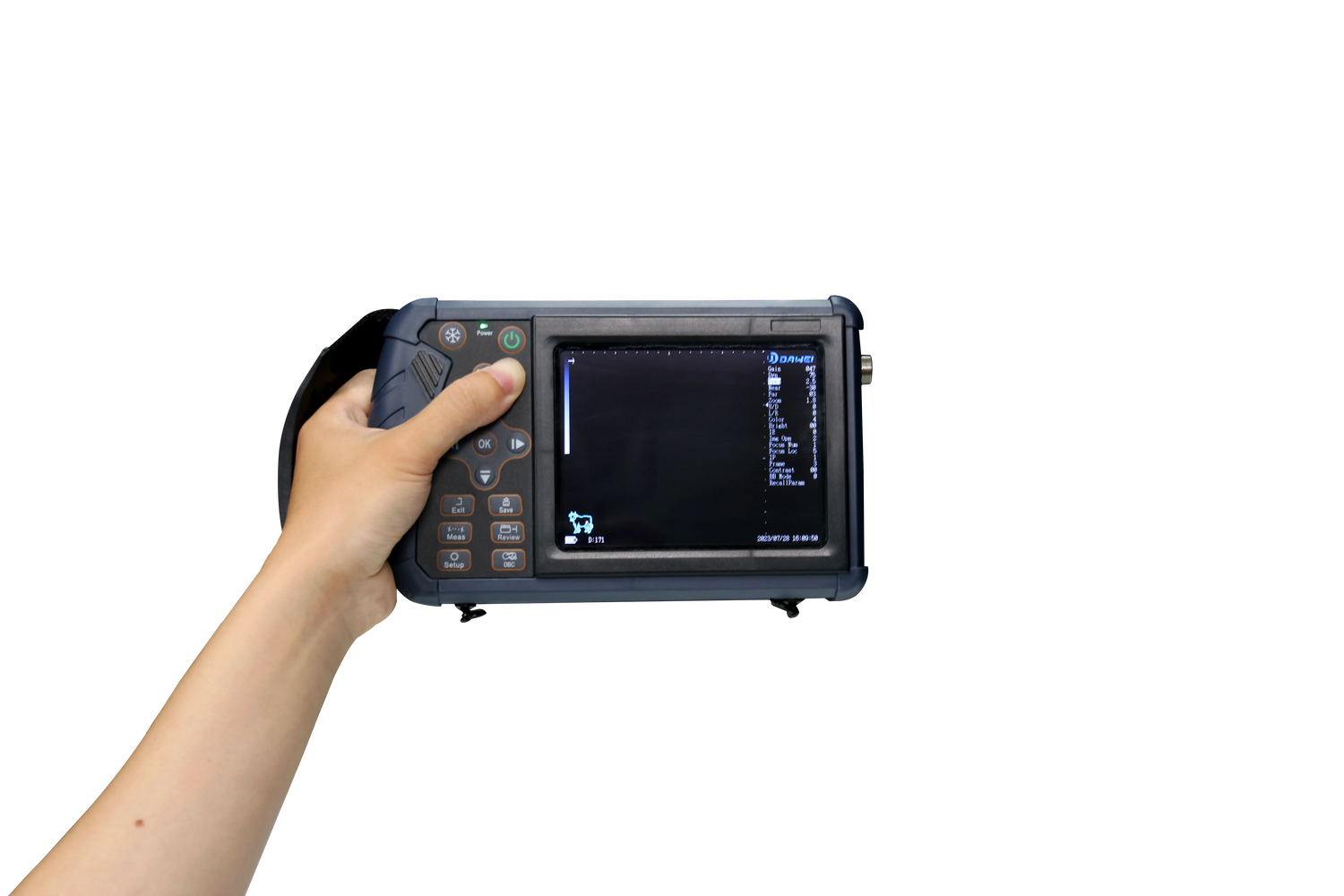

Handheld Portable Design
-
8 Animals Obstetric Examination

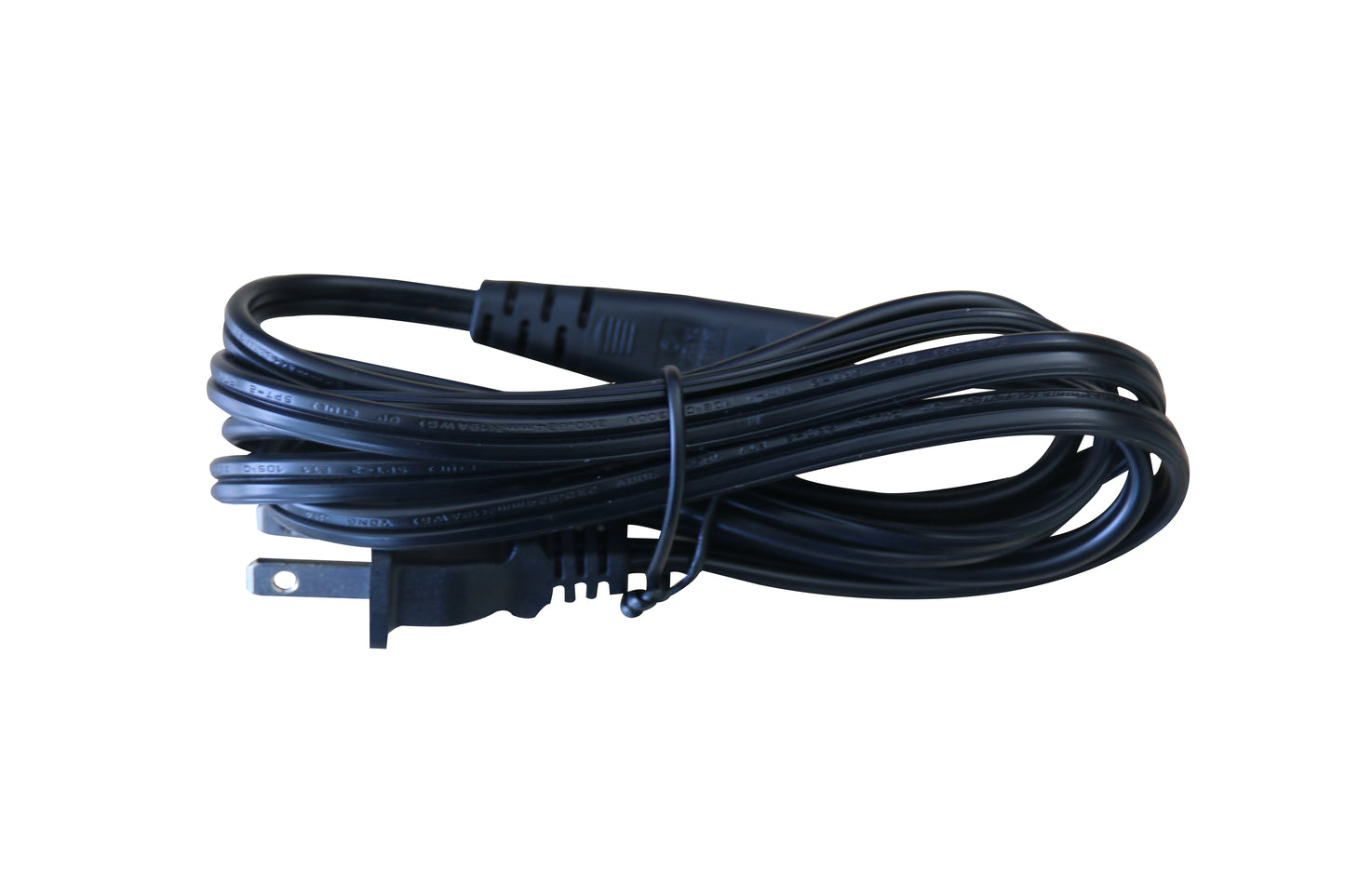

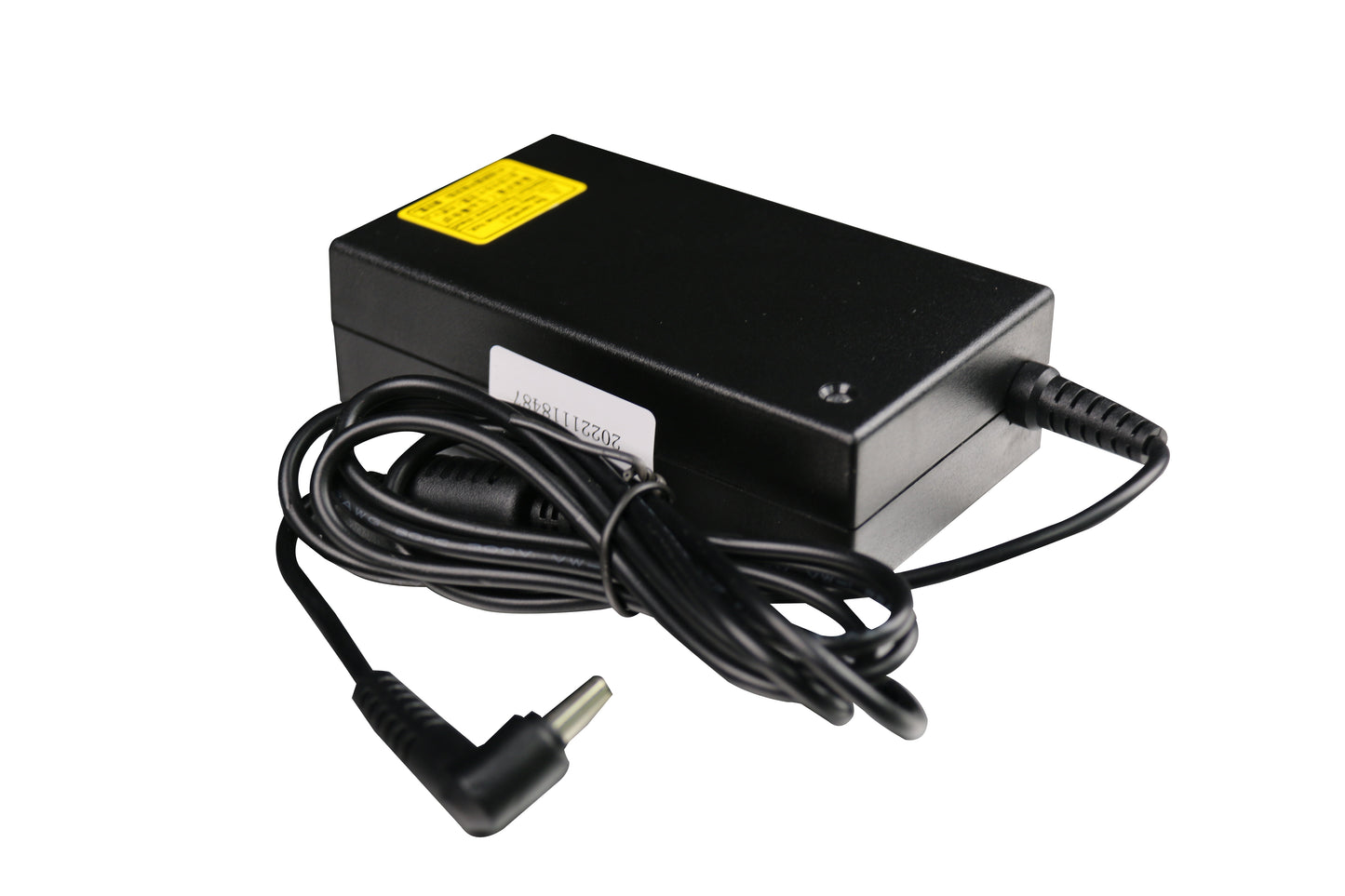

Package -
Electronic Probe, Clearer Imaging
-
32G Large Memory
-
Continuous Use For 3-4 Hours
-
English, Français, español, Português, Русский
Obstetric Examination
Ovine
Crown-rump length (CRL)
Feline
- Head circumference (HC)
- Biparietal diameter (BPD)
Canine
- Gestational sac diameter (GS)
- Crown-rump length (CRL)
- Head circumference (HC)
- Biparietal diameter (BPD)
Equin
- Gestational sac diameter (GS)
- Head circumference (HC)
Pig
- Heart length (HL)
- Stomach length (SL)
Cattle
- Body length (BL)
- Length of uterus (BUD)

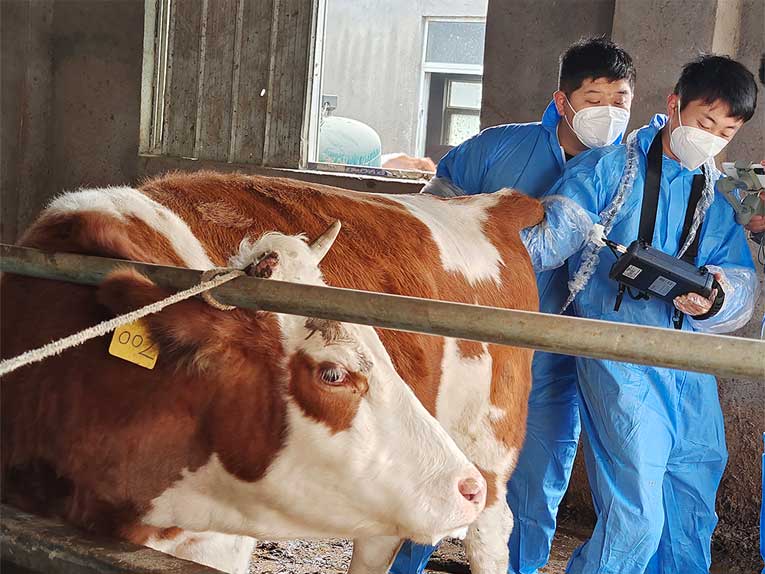

Ultrasound Examination Of Cattle

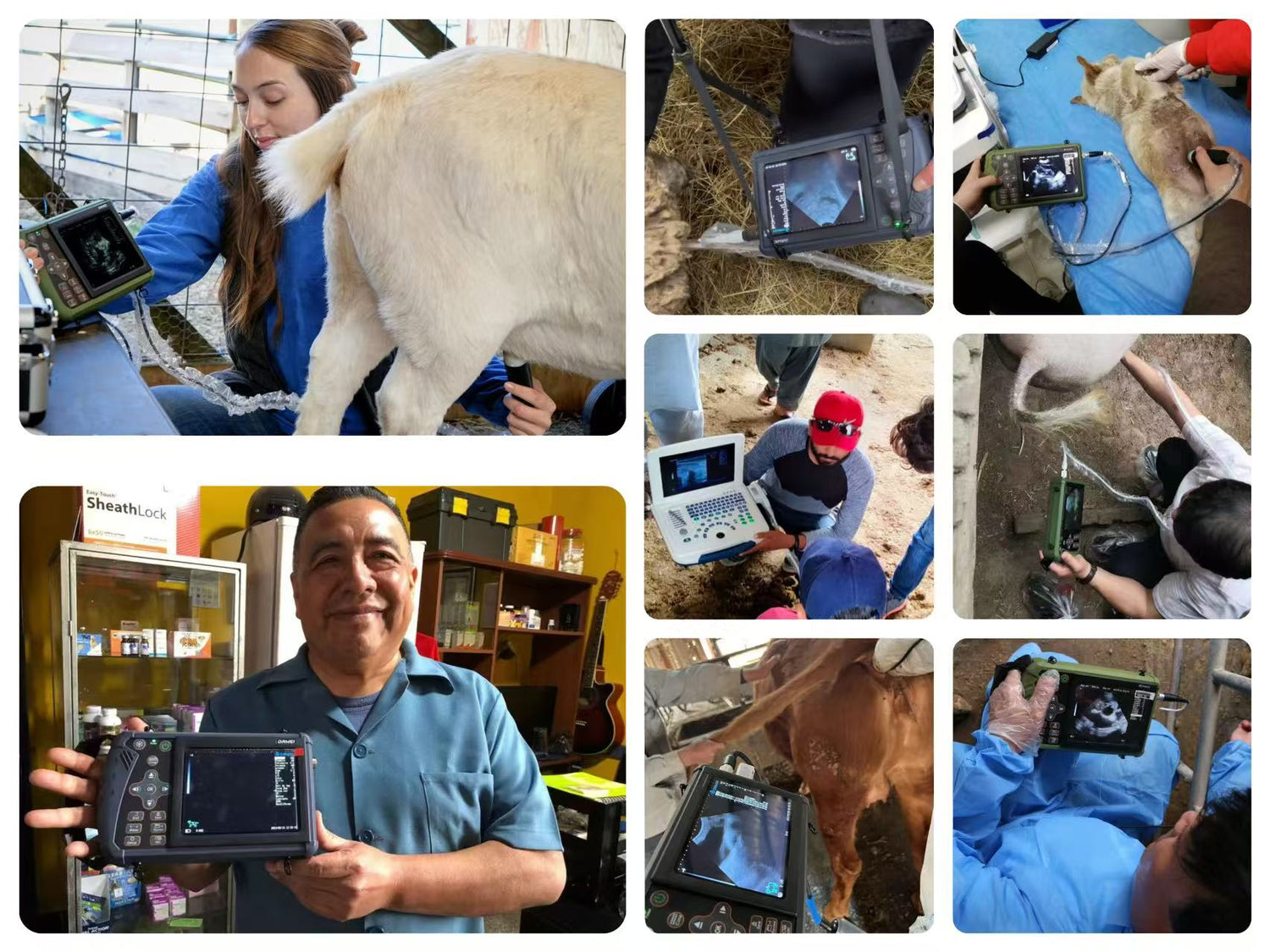

Diverse Application
DAWEl ultrasound produces clear and detailed images that can accurately and reliably diagnose a wide range of diseases in animals.
Whether used for pregnancy monitoring, internal organ evaluation or basic disease detection, the ultrasound images produced by this machine can provide veterinarians with valuable insights.
This greatly improves veterinary reproductive management, makes diagnosis more accurate, and improves breeding programs.
Parameters & Information
Technical Parameters
- Main monitor: 5.6 inch LED mdeidcal display
- System language: English, French, Spanish, Chinese, Portuguese, Russian.
- Display mode: B, 2B, 4B, B/M, M
- Focus: four sections electronic focus, focus position adjustable
- Cine loop: 255 frames, support continuous playback or view frame by frame
- Storage: 32G, readable and recordable
- Grey scale: 256
- Built-in battery: 2600mAh rechargeable lithium-ion battery, support more than 4 hours working.
- Pseudo color: 24 kinds
- Body mark: ≥12 kinds, adjustable probe body marker
- Backfat measurement: 2 modes, automatic measurement and manual measurement
- Support grid adjustment, 2 kinds of grid spacing, 15 kinds of grid colors

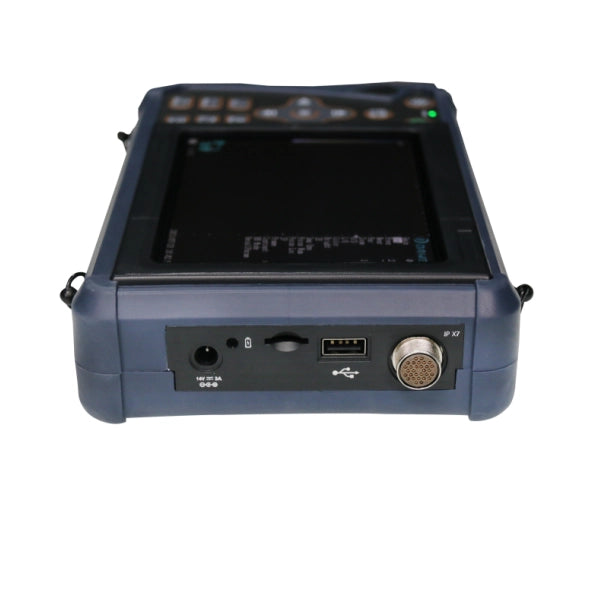

- Interface: USB connector; 14V charging port; probe connector

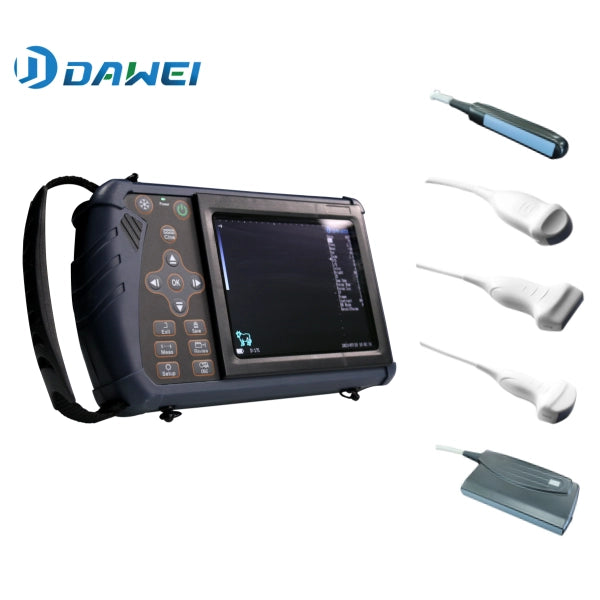

How to choose a probe?

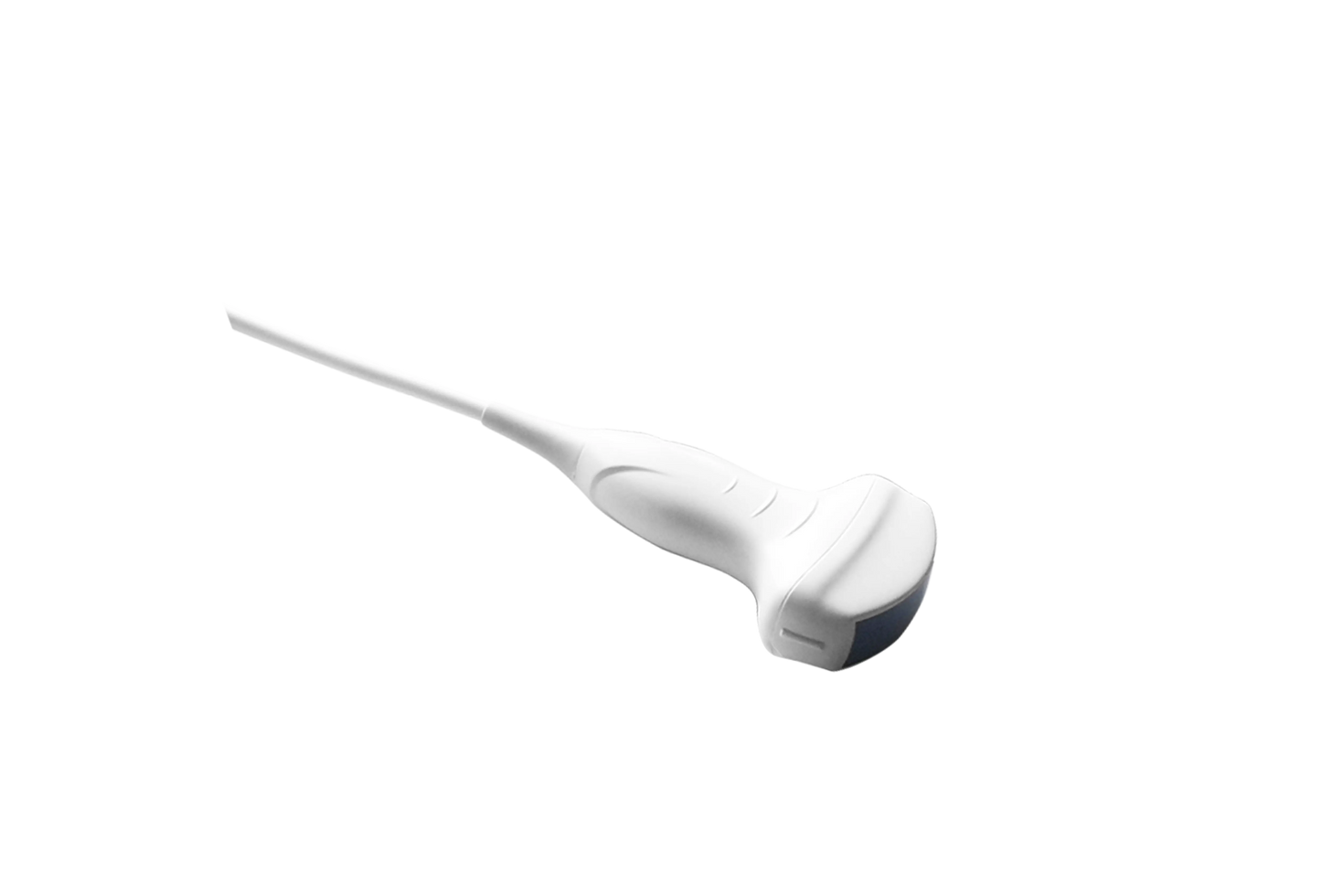

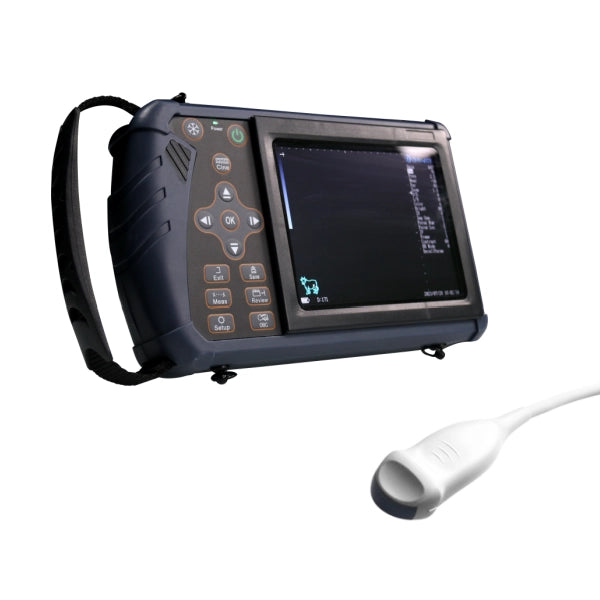

Convex probe: Mainly used for abdominal examination, examination of large animals (such as horses, cattle, pigs), and animal pregnancy examination.
- Scan depth: 64mm-242mm
- Frequency range: 3.5MHz(2.0/2.5/3.5/5.0)

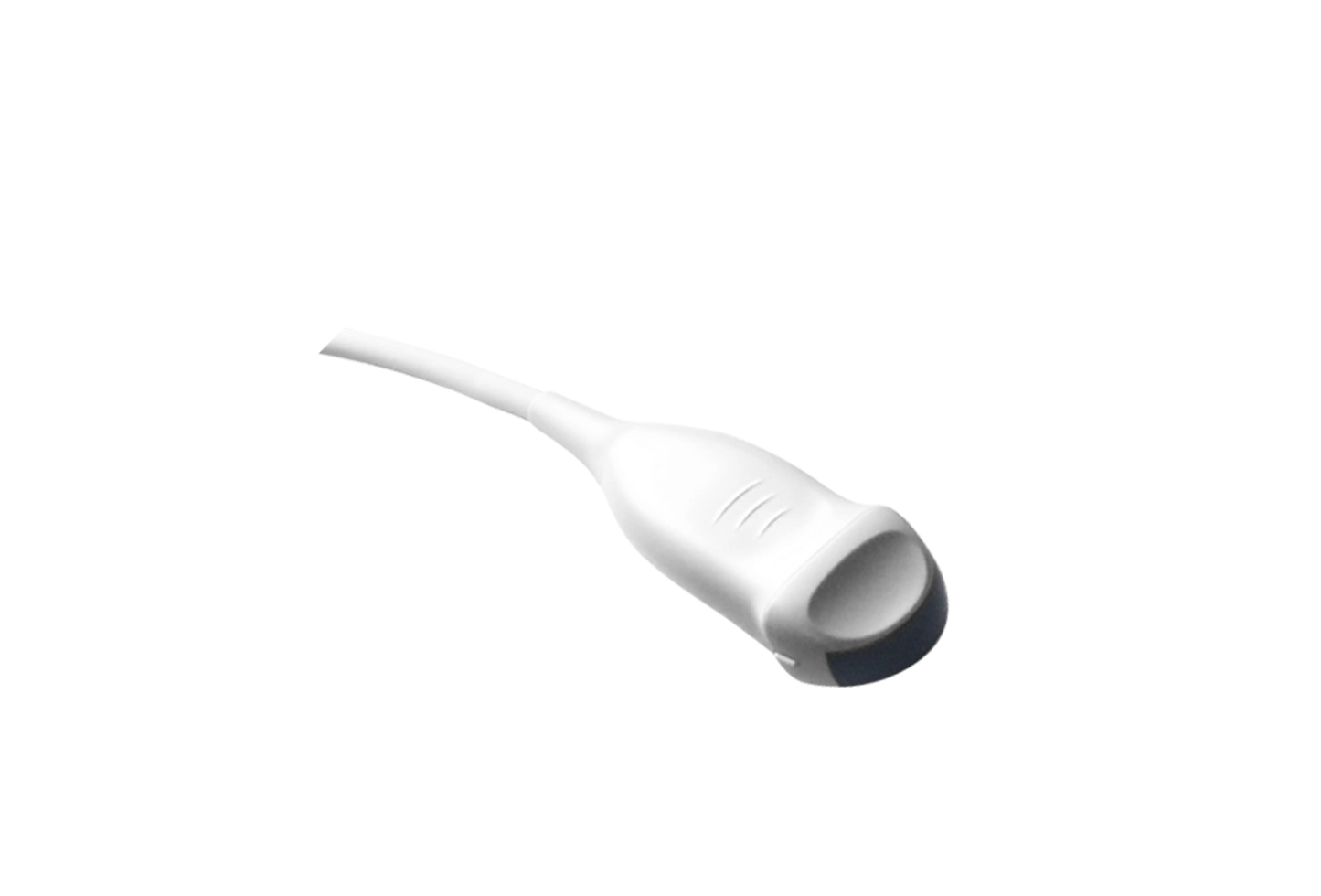

Micro-convex probe: Commonly used for abdominal examination and cardiac examination of small animals, and also for obstetric examination of small animals.
- Scan depth: 64mm-242mm
- Frequency range: 5.0MHz（4.5/5.0/6.5/7.5）

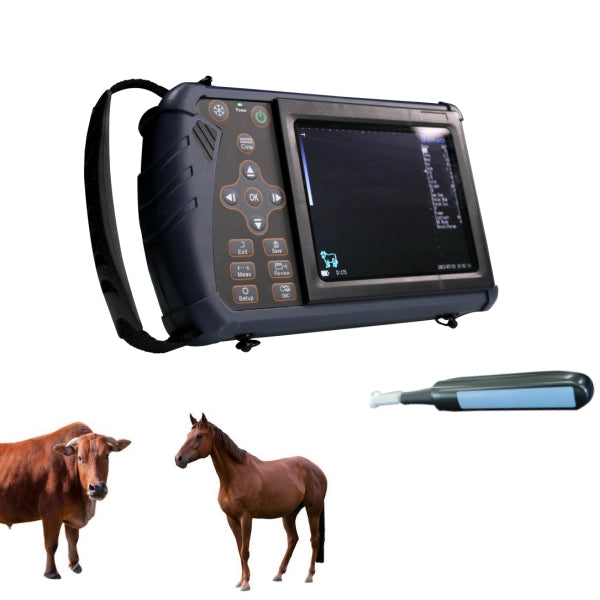

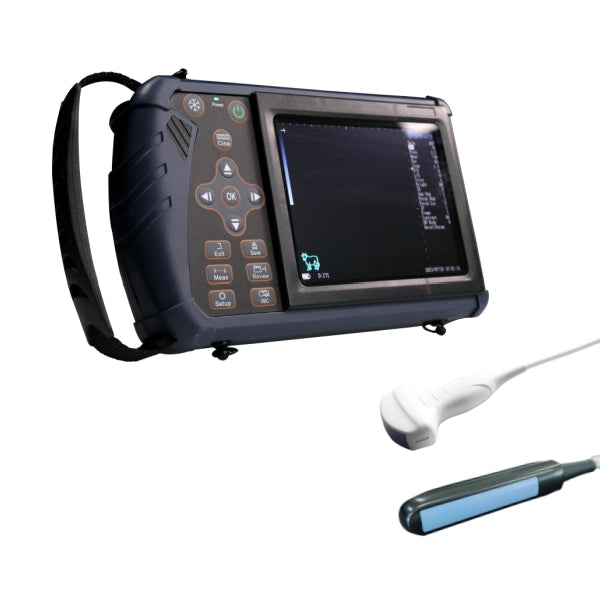

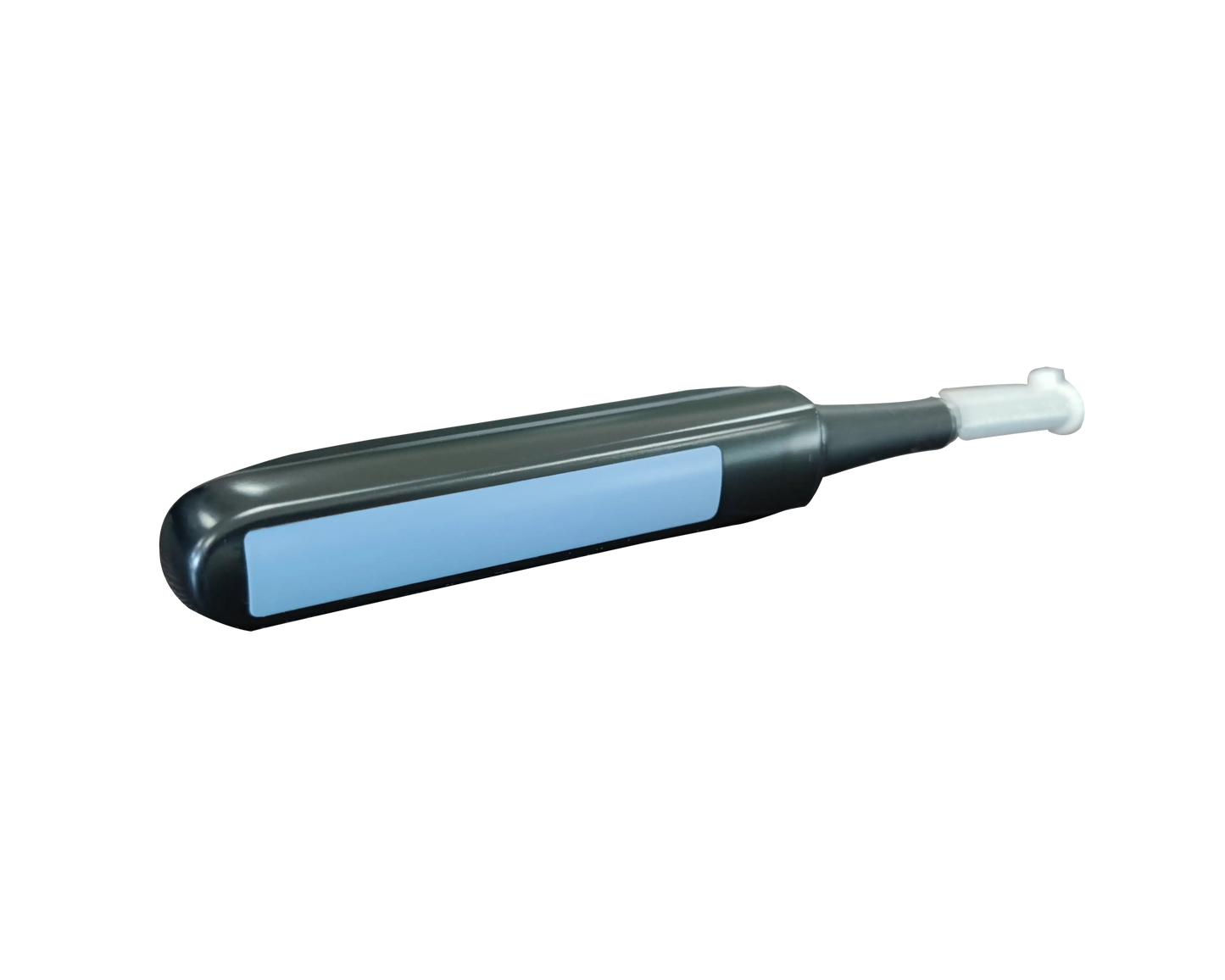

Rectal probe: Used for rectal examination of animals, especially during pregnancy.
- Scan depth: 50mm-221mm
- Frequency range: 6.5MHz（4.5 /5.5/6.5/7.5）

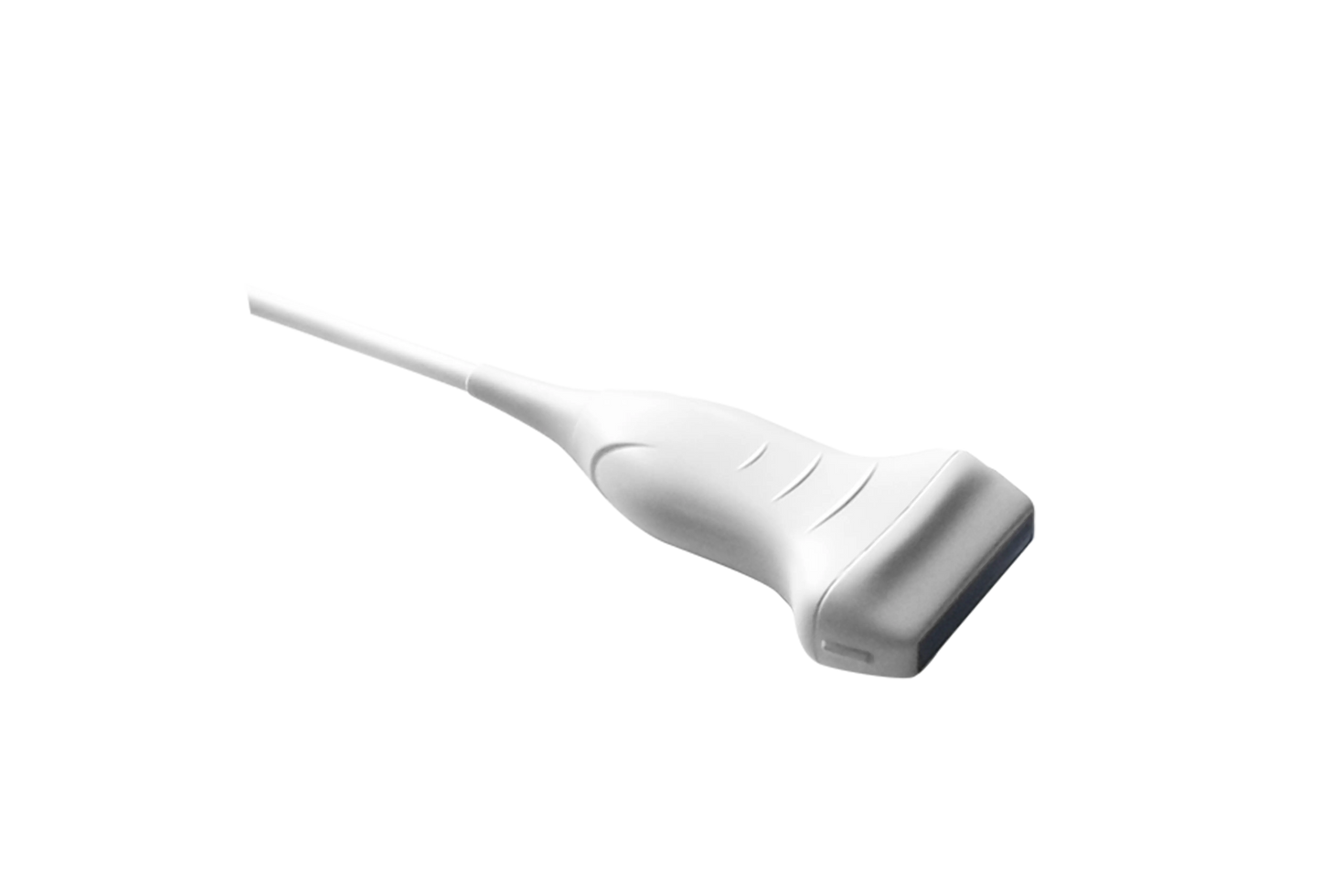

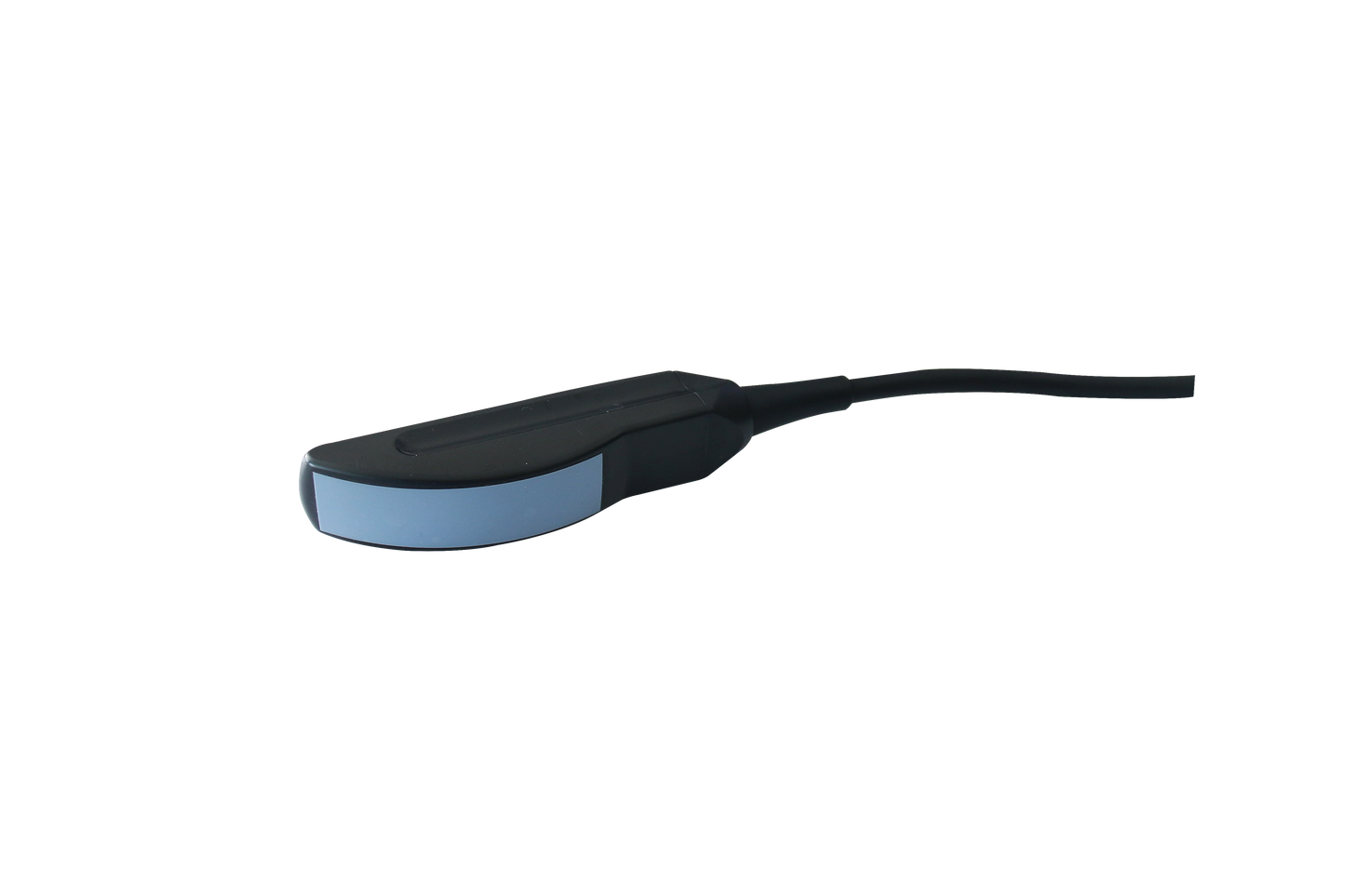

Linear probe: Mainly used for bone examination, superficial tissue (such as skin, muscle), blood vessels and small animals.
- Scan depth: 50mm-221mm
- Frequency range: 7.5 MHz（5.5/6.5/7.5/9.0）

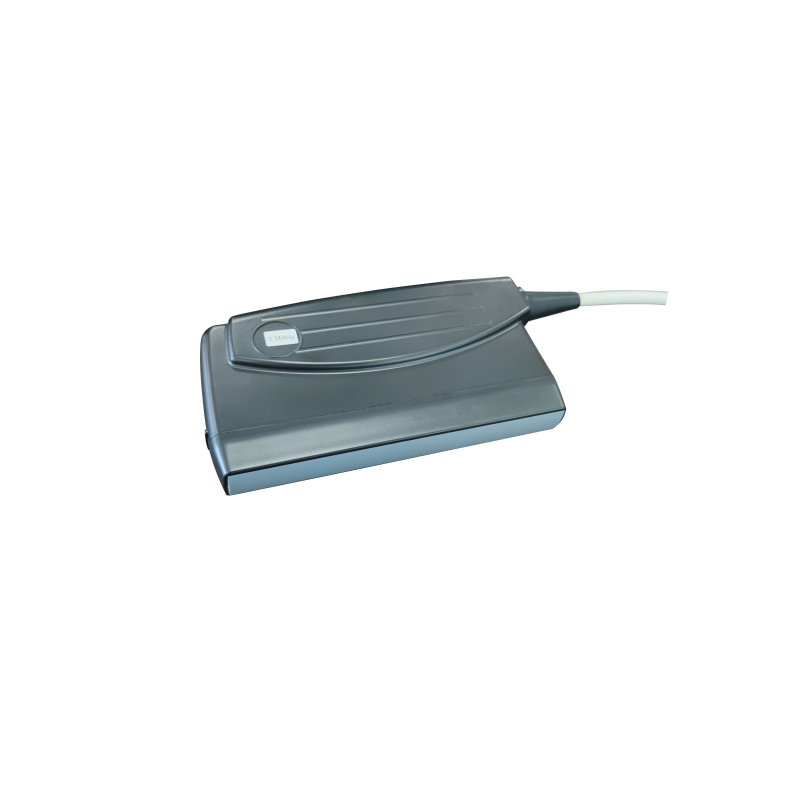

Backfat probe: Used to measure the backfat thickness and eye muscle area of livestock, calculate lean meat rate, evaluate the health status and meat quality of animals, and help farmers with breeding selection and feeding management.
- Scan depth: 64mm-242mm
- Frequency range: 3.5MHz（2.0/2.5/3.5/5.0）
After-sales Service
Two-year free warranty, lifetime warranty
Free remote technical training
Ultra-lightweight portable design
Weighing only 950g and equipped with a belt and a shoulder strap, it is
easy to move around and can be used indoors and outdoors.
Detailed Design
Designed from the user's perspective, with a large screen, touch buttons, and multi-function sockets to meet all usage needs
Easy to Read for New Breeders
A User-friendly interface and easy-to-read screen ensure every new breeder to perform animal pregnancy diagnosis effortless. One-button operation reveals gestational age and expected due date instantly on-screen, offering a quick overview of the animal's pregnancy status.
Display Mode
4 segments of electronic focus, adjustable focus position
16 levels of magnification, clearer details
24 pseudo colors, suitable for people with different color sensitivities
256 levels of grayscale, more delicate imaging
5 Measurement Modes
B MODE (Brightness Mode)
Helps identify structures, locate abnormalities.
BB MODE (B-Mode with B-Mode Comparison)
Valuable for monitoring the progression or regression of conditions, such as tumor growth or healing injuries.

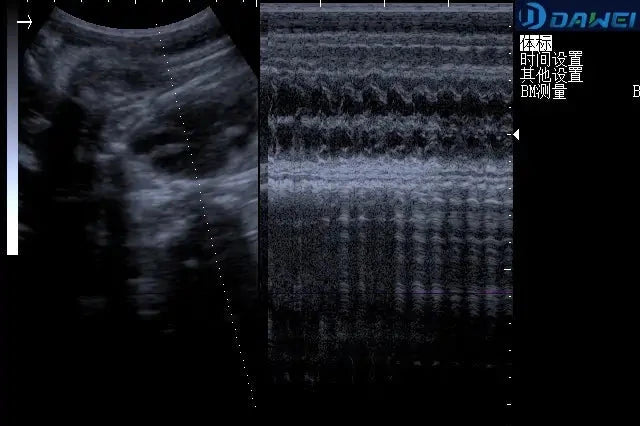

B+M MODE (Brightness + Motion Mode)
Essential for assessing cardiovascular function.
M MODE (Motion Mode)
Crucial for assessing cardiac motion, and monitoring fetal heartbeats during pregnancy.
4B MODE (Four B-Mode Mode)
Useful when evaluating complex anatomical regions, enabling a more complete understanding of structures and potential anomalies.
