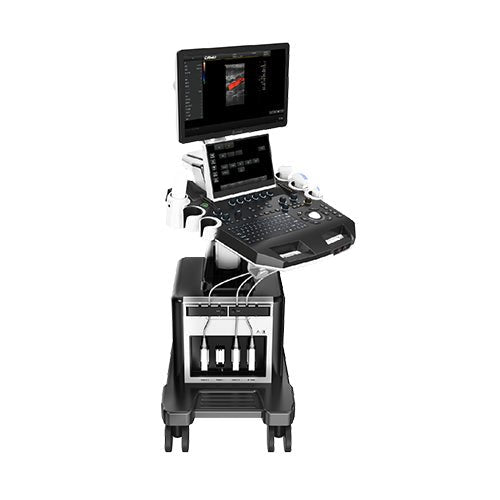

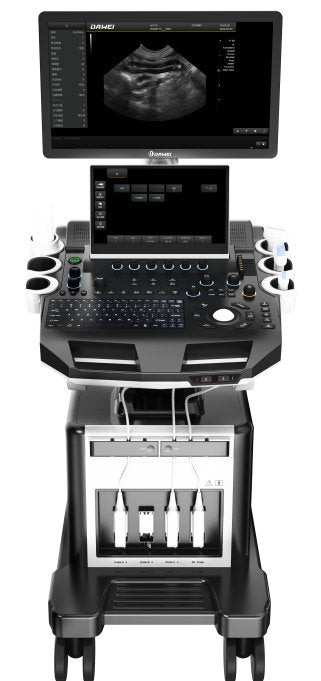

1.Product name: Veterinary Color Doppler Ultrasound Diagnostic System
|
|
1.1 Structure type: Trolley with two screens
|
|
2. Application：
2.1 Applicable for animals’ ultrasonic examinations in animal hospital,zoo,breeding base and scientific research institution
|
|
3.Technical Specifications and Summary：
|
|
3.1 Operation System：Windows10
3.2 Pulsed wave Doppler
3.3 Directional Energy Doppler
3.4 Real-time Triplex
3.5★Spatial Compound Imaging
3.6 Tissue Harmonic Imaging (THI)
3.7 2B/4B Imaging Mode
3.8 System language: Chinese, English, French, Russian and Spanish
3.9 Display size: ≥ 21.5 inches
3.10 Integrated clipboard: display the saved images at the bottom of the screen, can be directly saved or deleted
3.1 System with on-site upgrade function
3.12 Preset conditions: for different inspections, preset inspection conditions to optimize the image, reduce the operation of the adjustment, commonly required external adjustment and combination adjustment
3.13 Support real-time 3D imaging function
3.14★Probe connector ≥ 4
3.15★Trapezoidal imaging function
3.16 One key intelligent optimization function
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4. Probes ：
|
|
Linear Probe：Frequency 6.0MHz/7.5MHz/8.5MHz/10.0MHz/12.0MHz/H10.0MHz, six-segment frequency conversion (detecting depth 20-128mm）
Micro-convex(R11)：Frequency 4.5MHz/5.0MHz/6.0MHz/6.5MHz/7.0MHz/9.0MHz/H8.0Mhz， seven-segment frequency conversion (detecting depth 30-111mm)
Micro-convex(R15)：Frequency 4.5MHz/5.0MHz/6.0MHz/6.5MHz/7.0MHz/9.0MHz/H8.0Mhz，seven-segment frequency conversion (detecting depth 30-111mm)
Convex Probe：Frequency 2.0MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz/H4.0MHz/H5.0MHz,eight-segment frequency conversion (detecting depth 30-255mm)
Rectal Probe：Frequency 4.0MHz/6.5MHz/9.0MHz/H8.0Mhz，four-segment frequency conversion (detecting depth 20-110mm)
High frequency linear Probe (L25): Frequency 6.0MHz/7.5MHz/8.5MHz/10MHz/12MHz/H10MHz six-segment frequency conversion(detecting depth 2-110mm)
Phased array Probe：Frequency 2.0MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz/H3.0MHz/H4.0MHz eight-segment frequency conversion (detecting depth 10-244mm)
Volume Probe：Frequency 2.0MHz/3.0MHz/4.0MHz/4.5MHz/5.5MHz/6.0MHz/H5.0MHz seven-segment frequency conversion (detecting depth 30-237mm)
Backfat Probe：Frequency 2.0MHz/3.5MHz/4.0MHz/5.0MHz/H4.0MHz/H5.0MHz six-segment frequency conversion (detecting depth 30-237mm)
|
|
|
|
|
|
|
|
|
|
5.2 D Imaging Mode：
|
|
5.1 Gain: 0-100, Step 1 adjustable
5.2 TGC: 8 segment adjustable
5.3 Dynamic: 20-280, 20 levels adjustable
5.4 Pseudo color: 0-11, adjustable
5.5 Sound power: 5%－100%, step 5% adjustable
5.6 Body mark: ≥17 kinds optional
5.7 Maximum focus: ≥6, which can be moved throughout the whole process
5.8 Grey scale map: 0-7, 7 levels adjustable
5.9 Filter: 0-4
5.10 Scanning range: 50%-100%
5.11 Frame correlation: 0-4, 4 level adjustable
5.12 The screen has real-time display of sound power, probe frequency, dynamic range, pseudo color, gray scale and other 14 parameters can be adjusted.
5.13 Line density: low, middle, high, 3 levels adjustable
5.14 Noise reduction: 0-14
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6. Color Doppler Imaging Mode
|
|
6.1 Color Frame correlation: 0-12, 12 levels adjustable
6.2 Color map: 0-7, 7 levels adjustable
6.3 Color flip: adjustable
6.4 B / C real-time split screen mode
6.5 Base line: 11 levels, adjustable
6.6 Line density: low and high adjustable
6.7 Filter: 0-5 levels adjustable
|
|
|
|
|
|
|
|
|
7. Spectral Doppler Imaging Mode
|
|
7.1 Sampling volume angle correction: -80°～80°adjustable
7.2 Sample volume: 0.5mm-20mm adjustable
7.3 Frequency: 2.5MHz and 3.0MHz visible and adjustable (different probe ranges vary)
7.4 Base line: 11 levels, adjustable
7.5 Pseudo color: 0-5
7.6 Parameter display: ≥4 kinds, adjustable
7.7 Speed scale: 32.8-328cm/s (different probes have different ranges)
7.8 Spectrum envelope function: real time automatic spectrum envelope, manual spectrum envelope, and
other. The system automatically analyses and displays various data such as PS, ED, RI, PI, S/D, HR, etc. 7.9 Grey map: 0-7
7.10 Filter: 0-8
7.11 Dynamic range: 10-95db, step 5
7.12 Noise reduction: 0-28
7.13 Sound volume: 0-100
|
|
|
|
|
|
|
|
|
|
8. 3D imaging mode (optional)
|
|
8.1 Fast angle: support for 0°, 90°, 180°, 270° rotation of 3D window images.
8.2 Display layout: support "double", "quad", "single" image display.
8.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax.
8.4 Pseudo-color display: support 0-7 level adjustment.
8.5 Image magnification: support for 5 levels.
8.6 Contrast ratio: 0%-100%.
8.7 Threshold: 0%-100%
8.8 Smoothing: ≥ 3 adjustable gears
8.9 X-axis, Y-axis, Z-axis rotation support adjustable
8.10 Brightness: 0%-100%.
|
|
9. 4D imaging mode (optional)
|
|
9.1 fast angle: support for 3D window image 0 °, 90 °, 180 °, 270 ° rotation.
9.2 Display layout: support "double", "four", "single" image display.
9.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax.
9.4 Pseudo-color display: support 0-7 level adjustment.
9.5 Image magnification: support for 5 levels.
9.6 Contrast ratio: 0%-100%.
9.7 Threshold: 0%-100%
9.8 smoothness: ≥ 3 adjustable gears
9.9 pseudo-color: ≥ 7 adjustable gears
9.10 X-axis, Y-axis, Z-axis rotation support adjustable.
9.11 line density: support for two levels of adjustment.
|
|
10. Measurement and Analysis
|
|
10.1 General measurement: distance, area, angle, time, slope, heart rate, speed, acceleration, blood flow path, blood flow spectrum trace, resistance index/pulsation index, etc
10.2 Professional obstetric measurement data package for canine, feline, equine, bovine and ovine
10.3 Measurement line: color and type can be adjusted at will (including the activation color and the completion color)
10.4 Measurement result: display position and font size can be adjusted as needed
10.5 Professional data package: obstetrics, liver and gallbladder, kidney, bladder, heart, stomach and intestines, uterus, adrenal gland, pancreas, blood vessels, etc
|
|
|
|
|
|
11. Graphic and Text Management System：Image format: BMP, DCM, JPG
|
|
11.1Host build in hard disk ≥ 256G , start fast and stable
11.2 Movie playback: ≥600 frames
11.3 Internal file information management system: can record pet ID, pet name, owner name and so on, and can be searched and managed by ID, owner name, pet name and so on.
11.4 Report type: ≥6, Abdominal report, cardiac report, obstetric report, small organ report, urinary report, vascular report, picture proof provided
11.5 One key fast report graphic and text management
|
|
|
|
|
|
12. Interface：
4*USB; 1Video; 1 S-Video; 1 DVI; 1 HDMI; 1 RJ-45;
|
|
13. Configuration：
13.1 Full Digital Veterinary Color Doppler Ultrasound Diagnostic System
13.2 Probe：Micro-convex R11 probe(standard), Convex probe(optional), Linear probe(optional), Micro-convex R15 probe (optional)
13.3Video printer (optional), laser printer (optional)
|
|
|
|
|
|
