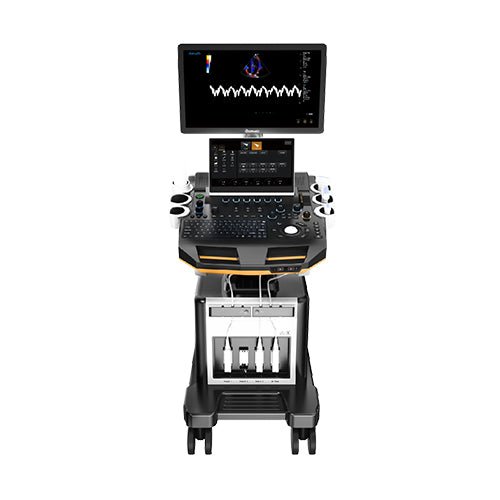

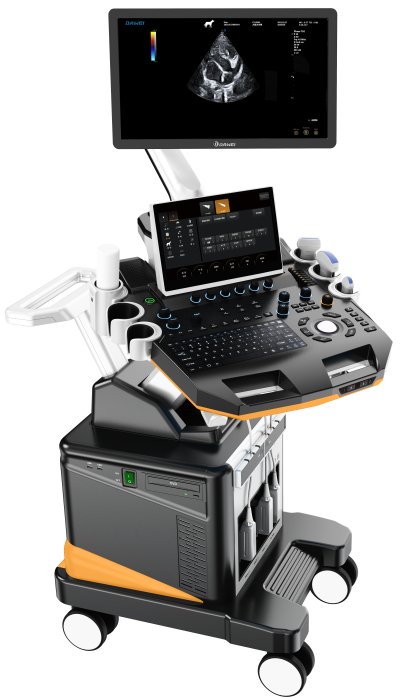

DWanimal T6-VET Veterinary Color Doppler Ultrasound
DWanimal T6-VET Veterinary Color Doppler Ultrasound
Couldn't load pickup availability
|
1.Product Name：Veterinary Color Doppler Ultrasound Diagnostic Instrument. |
|
1.1 Structure Style ：Dual Screen Cart |
|
2.2. Application: 2.1 It's applicable for animals’ examination and diagnosis on digestive system, reproductive system, urinary system for animal hospitals and scientific institutions. |
|
3. System technical specifications and overview 3.1. Full digital color Doppler animal ultrasound diagnostic system mainframe |
|
3.2. Digital beam booster |
|
3.3. Multiple beamforming |
|
3.4. Two-dimensional grayscale mode |
|
3.5. Harmonic Imaging Technology |
|
3.6.B+C dual real-time mode |
|
3.7. M-type mode |
|
3.8. Anatomical M-mode, sampling line ≥ 3 |
|
3.9.Doppler imaging (including color, energy, and directional energy Doppler modes) |
|
3.10. Spectral Doppler imaging (including pulsed Doppler, high pulse repetition frequency, continuous wave Doppler) |
|
3.11. Tissue Doppler imaging (including tissue velocity map, M-mode, spectral imaging, etc.) |
|
3.12. 4-D imaging |
|
3.13.★Contrast imaging technology (optional) |
|
3.14.★With PView wide-view imaging technology (optional) |
|
3.15. Spatial composite imaging technology (applicable to abdomen, obstetrics, blood vessels, superficial small organs, and can be displayed in double images on the same screen) |
|
3.16. Frequency compound imaging |
|
3.17. Extended Imaging |
|
3.18. Real-time double contrast imaging |
|
3.20. Real-time three-synchronous imaging (two-dimensional, color, spectrum real-time simultaneous imaging) |
|
3.21. Speckle noise suppression technology |
|
3.22. Elastic imaging technology (optional) |
|
4.★Operation interface: The host includes 10 operation language interfaces. |
|
5. System technical parameters and requirements 5.1 standard ≥ 21.5 inches high-resolution color LCD display |
|
5.2 ★ There are more than 4 built-in probe interfaces in the host, all activated, consistent in size, and interoperable |
|
5.3. Two-dimensional grayscale mode 1) Digital acoustic beamformer 2) Digital full dynamic focus, digital variable aperture and dynamic apodization, A/D≥15 bit 3) Receiving mode: transmitting and receiving channels ≥ 1024, multiple signal parallel processing 4) Scanning lines: line density ≥ 512 ultrasonic lines per frame 5) Transmitting sound beam focusing: transmitting ≥ 10 segments, the focus position has a special menu adjustment 6) TGC≥8 segments 7) Gain adjustment: B/M/D are independently adjustable, ≥100dB 8) Dynamic range adjustment: ≥180dB 8) Maximum display depth ≥ 360mm 9) Gray scale: ≥67 levels, visually adjustable 10) Sound power: 1%-100% 11) Two-dimensional independent deflection of the linear array probe 12) Partial magnification (1.5/2.0/2.5/3.0/3.5, 4.0/4.5/5.0/10 times) |
|
5.4. Color Doppler Imaging 1) Imaging method: including speed, speed variance, energy, direction energy display, etc. 2) Display mode: B/C, B/C/M, B/POWER, B/C/PW 3) Linear density ≥ level 3 4) Color hiding technology: you can hide the color without going back to the two-dimensional mode, and only display the color speed scale 5) Blood flow distribution graph function, color blood flow profile graph to measure intravascular flow velocity |
|
5.5. Spectral Doppler mode 1) Display format: full screen, duplex/tripleplex (PW only) 2) Gain: ≥100dB 3) Multispectral speed: ≥ 4 levels adjustable 4) Maximum measurement speed: PWD: forward or reverse blood flow velocity ≥ 7.6m/s; CWD: blood flow velocity ≥ 20.0m/s, minimum velocity: ≤ 5 mm / s (non-noise signal); 5) Zero movement: ≥8 grades 6) Display mode: B, PW, B/PW, B/C/PW, B/CW, B/C/CW, etc. 7) Spectrum automatic measurement, manual measurement 8) Display control: inversion, zero shift, B refresh, D extension, B/D extension, etc. 9) Smart Doppler technology, can switch freely between real-time B+CFM mode and real-time PW mode. |
|
5.6. Four-dimensional mode: 1) Four-dimensional imaging mode: surface mode, maximum mode, minimum mode, perspective mode, etc. 2) Display mode: single, double, four. 3) Crop function: 4) Transparency 130-490: 19 levels adjustable 5) Threshold 0-130 6) smooth ≥ 4 7) Store pictures, movies, and volume data in four-dimensional format |
|
5.7.★Standard wide-view imaging (optional) 1) Display length at high resolution up to 50cm 2) It has two-dimensional wide-view and color wide-view imaging modes |
|
5.8. Probe interface ≥ 4, all activated. Volumetric probes are plug and play. |
|
5.9. Probe: broadband frequency conversion probe, two-dimensional and color independent frequency conversion, 1) The frequency conversion of the fundamental wave of the probe is ≥ 3 segments; 2）1. Convex probe： 2. Linear probe: 4.0MHz/4.5MHz/5.0MHz/6.0MHz/7.5MHz/8.0MHz/9.2MHz/10.0MHz/12.0MHz/ 14.0MHz,ten -segment frequency conversion（detecting depth 20-120mm） Fundamental Frequecy： 4.0MHz/4.5MHz/6.0MHz/7.5MHz/8.0MHz/10.0MHz/12.0MHz/14.0MHz/20.0MHz nine -segment frequency conversion（detecting depth 20-120mm） 5.0MHz/5.5MHz/6.0MHz/8.0MHz/9.0MHz/10.0MHz/11.0MHz/12.0MHz/15.0MHz, nine -segment frequency conversion（detecting depth 20-120mm） Harmonic frequency：6.0MHz/7.0MHz/8.0MHz。Three-segment frequency conversion Note: The above probes have harmonic frequency Note: Optional according to customer needs: convex array probe, linear array probe, micro-convex probe, phased array probe, volumetric probe, etc. |
|
6. Measurement/analysis and reporting: 6.1 Conventional measurement: distance, area, ellipse, crosshair, angle, distance ratio, volume, volume (ellipse), area ratio, diameter, joint angle. |
|
6.2 Special measurement for specialties 2) Cardiac measurement: left ventricle, MPAD, RVEDd, RVEDs, left ventricular myocardium, LAVol, RV/LV, LVSimps, LA/AO, MV, LVMassA/L, QP/QS. 2) Obstetrical measurement: Canine: cranial-rump diameter, fetal sac, cranial transverse diameter, body cavity transverse diameter; Feline: body cavity transverse diameter, cranial transverse diameter; Porcine: pig heart, pig stomach; Bovine: cranial-rump diameter , trunk transverse diameter, cranial transverse diameter; Ovis: head-rump diameter, biparietal diameter; Equine: fetal sac (H), fetal sac (V) |
|
7. Peripheral part: 7.1. Configure a set of ultrasound graphics and text workstations. The workstation software needs to have a registration certificate, support digital black and white, analog black and white, digital color, analog color, text and video printers, and support foot switches. 7.2 Support network connection 7.3 Support DICOM 3.0 DICOM obstetrics, heart, blood vessel report 7.4 Video/audio input and output 7.5 host comes with USB interface 7.6 Support the ultrasound system to send clinical pictures and reports directly to the computer through the network |
|
8 Movie playback and raw data processing: 8.1 Movie playback ≥ 3061 frames, support manual and automatic playback 8.2 The capacity of the digital hard disk is ≥256G, which can permanently store dynamic and static images, and can read, transmit and delete images at any time 8.3 A variety of export image formats: dynamic images and static images are directly exported in PC format, and images can be directly viewed on ordinary PCs without special software. While exporting and backing up image data, real-time inspection can be performed without affecting the inspection operation 8.4 Equipped with professional probe racks ≥ 4 (excluding couplant racks) each probe rack can be replaced left and right |
