Portable Veterinary Ultrasound Y6|Fully Waterproof
Portable Veterinary Ultrasound Y6|Fully Waterproof
Couldn't load pickup availability
- 7-15 days for delivery, 15 days for return and exchange after receipt
- Two-year free warranty and lifetime paid warranty
- Free one-to-one training on product knowledge and usage
Bigger screen & Stronger functionality
The Y6 fully waterproof veterinary ultrasound machine adopts the new ARM architecture. Compared with the traditional single-chip microcomputer system, it has the characteristics of faster processing speed, stronger processing power, larger storage capacity, higher safety performance, and more convenient upgrade and maintenance.
Y6 Appearance and Usage Guide
Vet Ultrasound Y6 Obstetric Examination
Ovine
Crown-rump length (CRL)
Feline
- Head circumference (HC)
- Biparietal diameter (BPD)
Canine
- Gestational sac diameter (GS)
- Crown-rump length (CRL)
- Head circumference (HC)
- Biparietal diameter (BPD)
Equin
- Gestational sac diameter (GS)
- Head circumference (HC)
Pig
- Heart length (HL)
- Stomach length (SL)
Cattle
- Body length (BL)
- Length of uterus (BUD)
Cattle Ultrasound
Diverse Application
DAWEl ultrasound produces clear and detailed images that can accurately and reliably diagnose a wide range of diseases in animals.
Whether used for pregnancy monitoring, internal organ evaluation or basic disease detection, the ultrasound images produced by this machine can provide veterinarians with valuable insights.
This greatly improves veterinary reproductive management, makes diagnosis more accurate, and improves breeding programs.
Parameters & Information
Technical Parameters
- Display: 8 inches
- Operation interface: Chinese/English
- Display mode: B, BB, 4B, M/BM
- Preset examination of animal type: canine, feline, ovine, swine, bovine, equine
- Electronic focus: four segments of electronic focus, adjustable focus position (7 levels of adjustment)
- Image mirroring: left and right flip, black and white flip, up and down flip
- Regular measurement: distance, perimeter (trajectory), perimeter (ellipse), area (trajectory), area (ellipse), volume (three distances), length ratio, area ratio, angle.
- Specialized measurements: canine: distance, circumference area (trajectory), circumference area (ellipse), volume (three distances), cephalic longitude, biparietal diameter, cephalocaudal length, gestational sac diameter
- Movie playback: 255 frames, continuous playback or frame-by-frame view
- Permanent storage: 32G, can be stored and read, and expanded to a larger TF card
Gray scale: 256 levels - Battery capacity: 6600mAh, can work continuously for about 6 hours
- Support dot net and line net
- Pseudo-color: 28 kinds
- Contrast: 1-9 levels of adjustment
- Brightness: 1-9 levels of adjustment
- Support for one-key full screen.
- Image magnification: 1-24 levels of adjustment.
- Settings: adjustable date and time
- Support screen protection, you can set 0-99 minutes
How to choose a probe?
Convex probe: Mainly used for abdominal examination, examination of large animals (such as horses, cattle, pigs), and animal pregnancy examination.
- Scan depth: 64mm-242mm
- Frequency range: 3.5MHz(2.0/2.5/3.5/5.0)
Micro-convex probe: Commonly used for abdominal examination and cardiac examination of small animals, and also for obstetric examination of small animals.
- Scan depth: 64mm-242mm
- Frequency range: 5.0MHz（4.5/5.0/6.5/7.5）
Rectal probe: Used for rectal examination of animals, especially during pregnancy.
- Scan depth: 50mm-221mm
- Frequency range: 6.5MHz（4.5 /5.5/6.5/7.5）
Linear probe: Mainly used for bone examination, superficial tissue (such as skin, muscle), blood vessels and small animals.
- Scan depth: 50mm-221mm
- Frequency range: 7.5 MHz（5.5/6.5/7.5/9.0）
Backfat probe: Used to measure the backfat thickness and eye muscle area of livestock, calculate lean meat rate, evaluate the health status and meat quality of animals, and help farmers with breeding selection and feeding management.
- Scan depth: 64mm-242mm
- Frequency range: 3.5MHz（2.0/2.5/3.5/5.0）
After-sales Service
Two-year free warranty, lifetime warranty
Free remote technical training

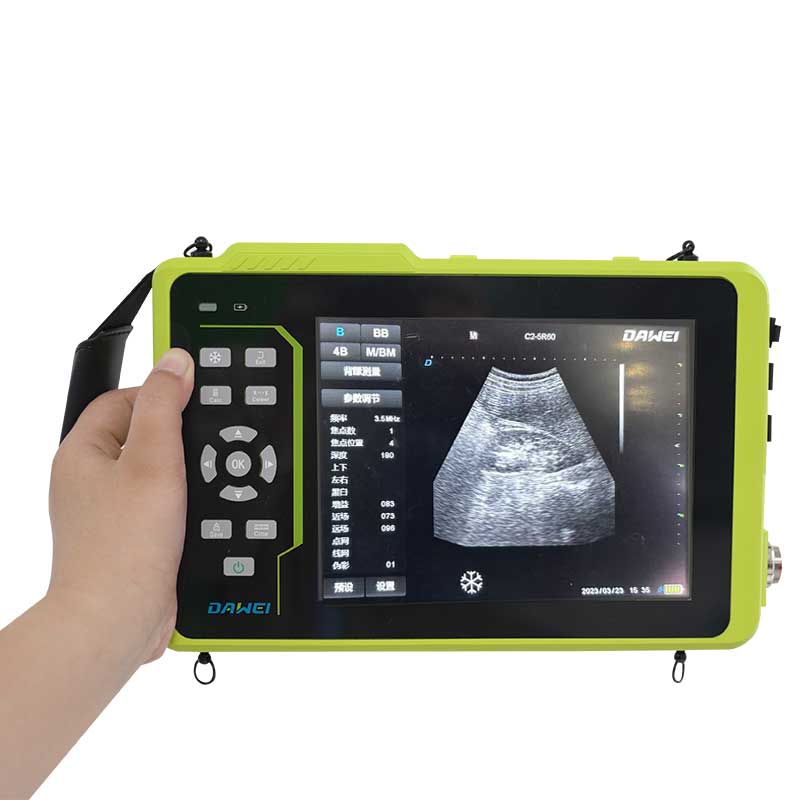

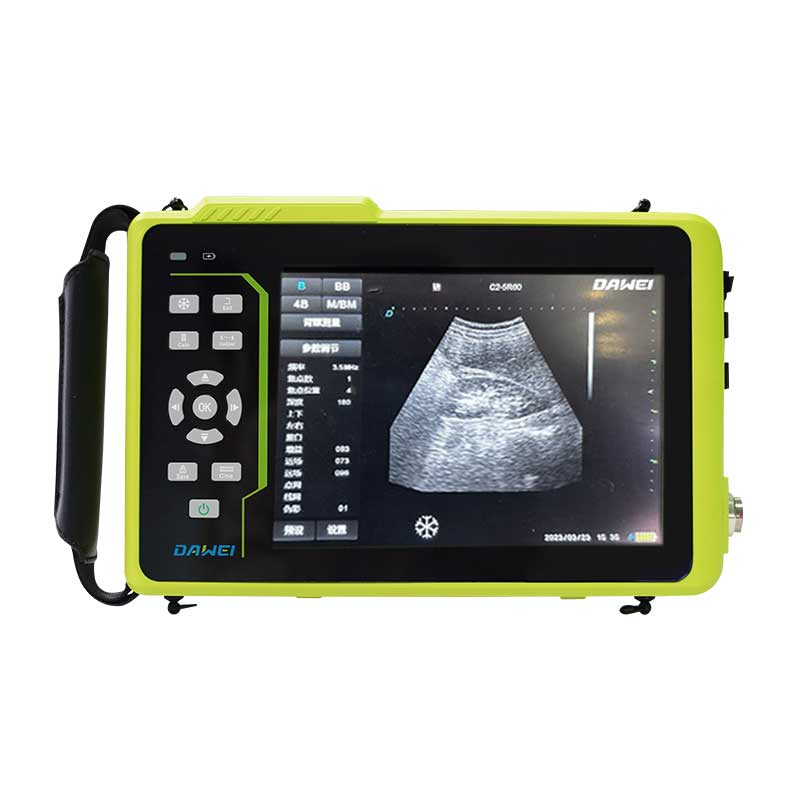

8 inches extra large LED display, the whole machine is waterproof and can be washed directly
6600 mAh battery, can work for 5-6 hours,
long-lasting power, let you focus more on work
Simple, intuitive, durable – making every connection easy.

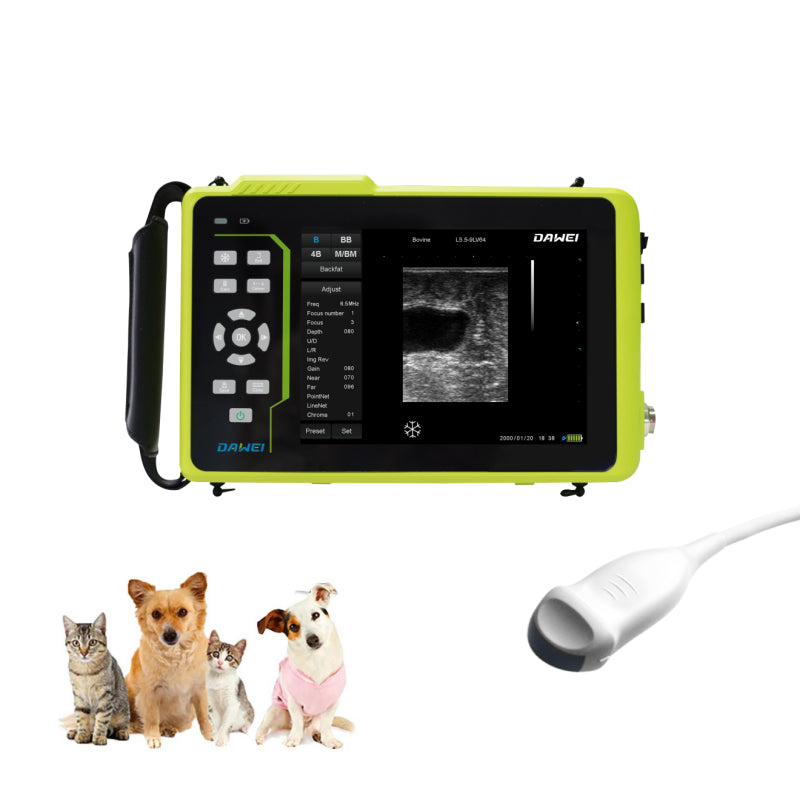

A variety of probes available
General measurement functions: distance, perimeter-ellipse, perimeter-trajectory, area-ellipse, area-trajectory
Specialized measurement functions: abdomen, heart, obstetrics, superficial

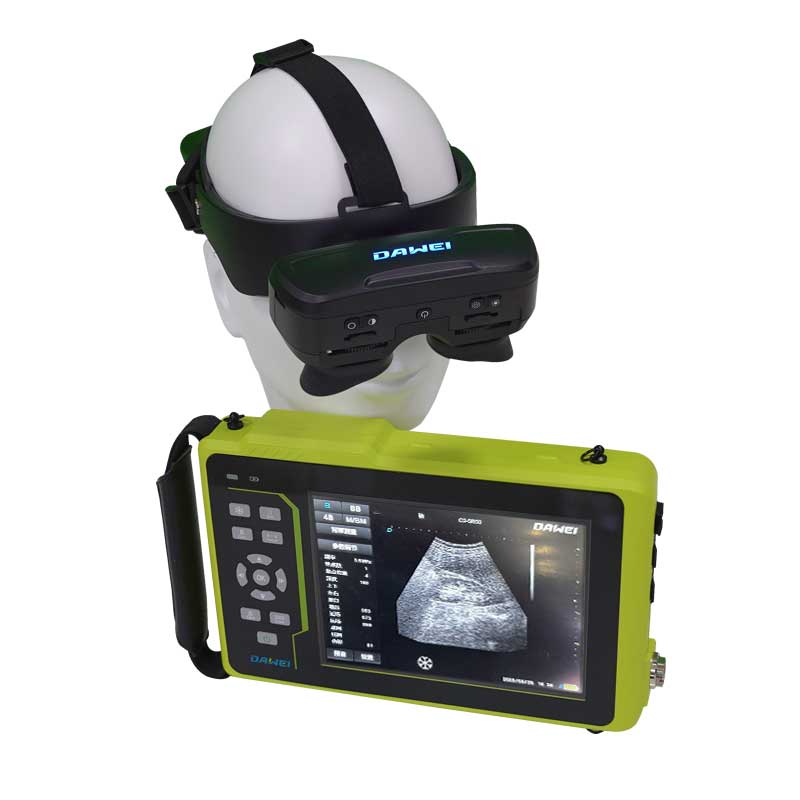

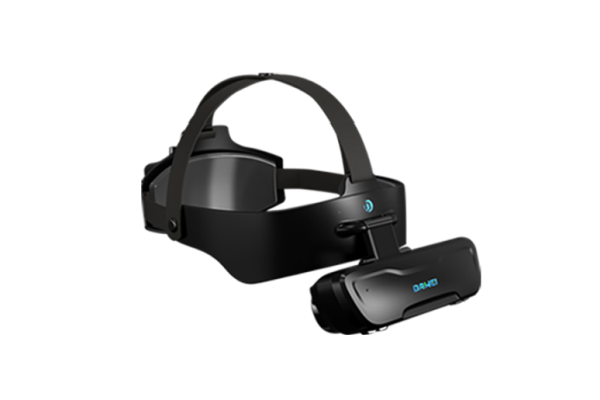

Optional video glasses provide clear vision and detailed observation.
Adjustable brightness and contrast, ergonomically designed, can be mounted on a hat or elastic headband.
5 Measurement Modes

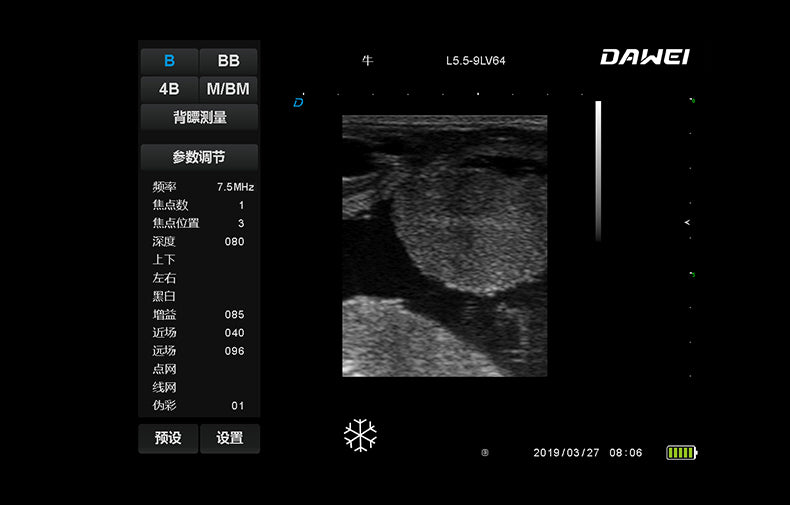

B MODE (Brightness Mode)
Helps identify structures, locate abnormalities.
BB MODE (B-Mode with B-Mode Comparison)
Valuable for monitoring the progression or regression of conditions, such as tumor growth or healing injuries.
B+M MODE (Brightness + Motion Mode)
Essential for assessing cardiovascular function.
M MODE (Motion Mode)
Crucial for assessing cardiac motion, and monitoring fetal heartbeats during pregnancy.
4B MODE (Four B-Mode Mode)
Useful when evaluating complex anatomical regions, enabling a more complete understanding of structures and potential anomalies.
