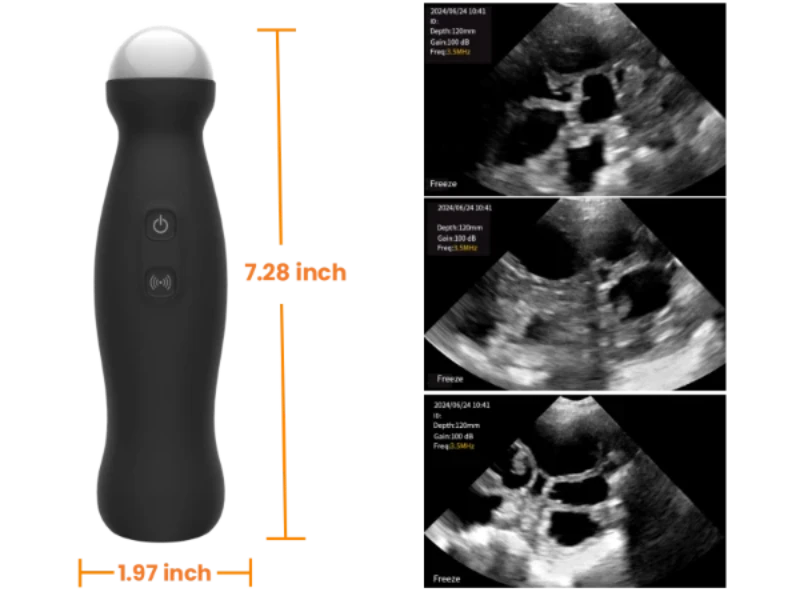

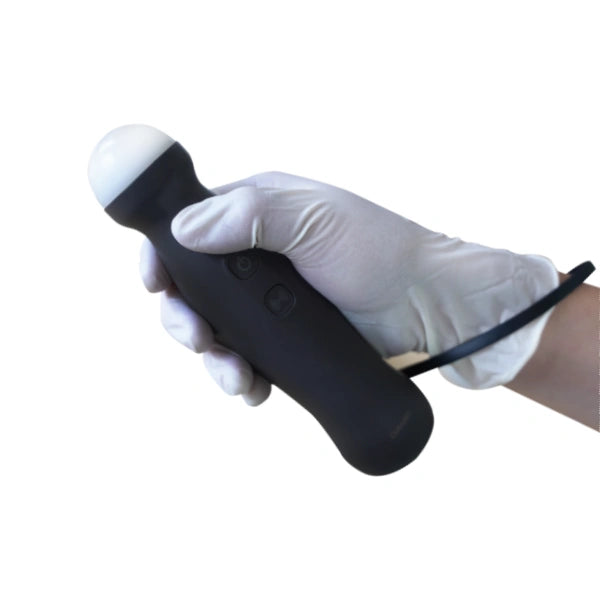

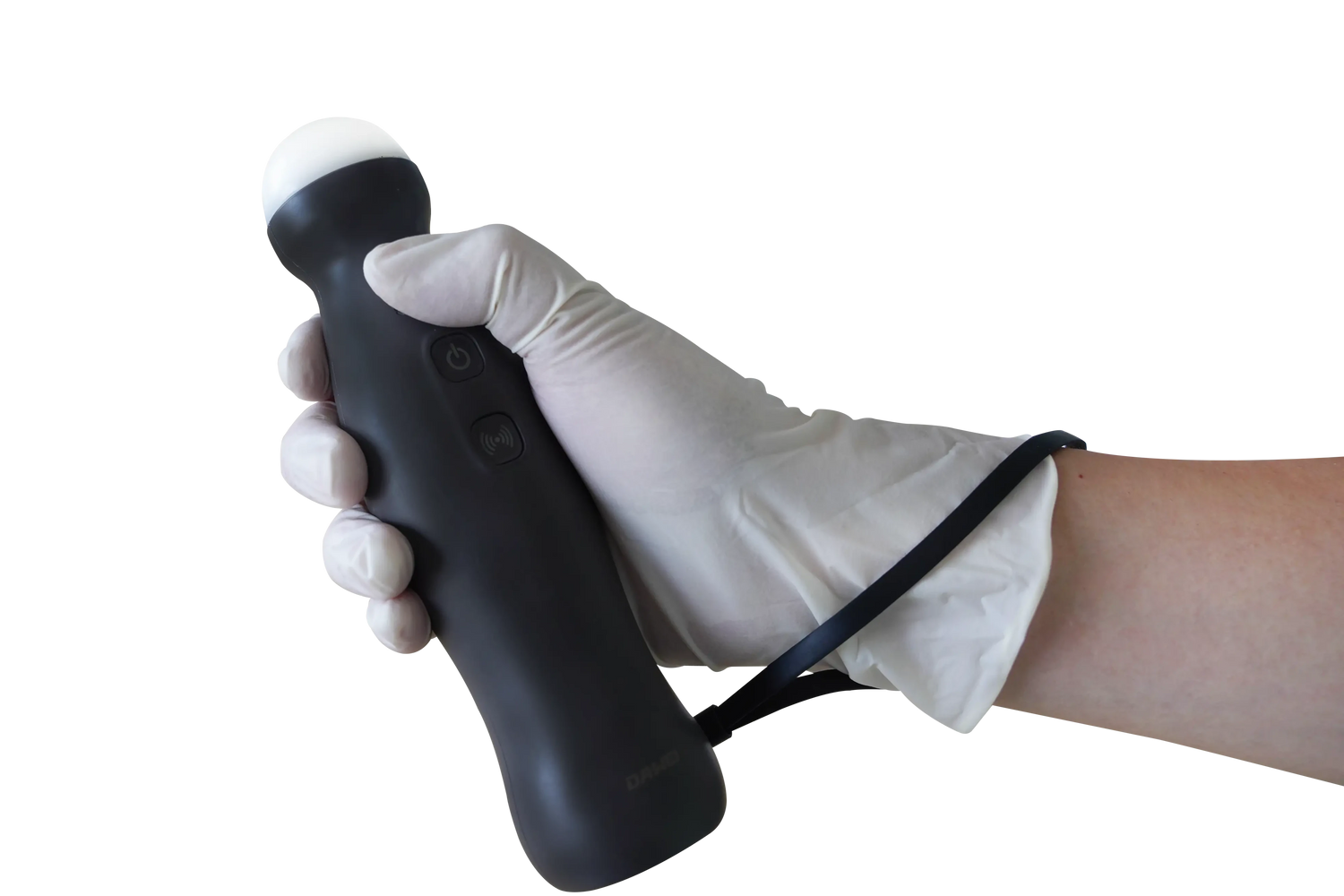

Portable, Clear, Efficient
It weighs only 245g (0.54 pounds) and is suitable for Android phones and tablets. It is used for animal ultrasound examinations in breeding and reproduction bases.
-
Whole body is washable, easy to clean
-
Obstetric measurement package for pigs, dogs and sheep
-

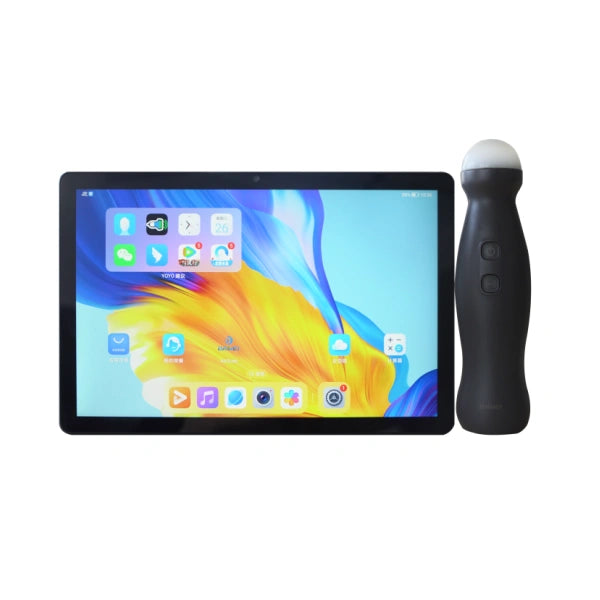

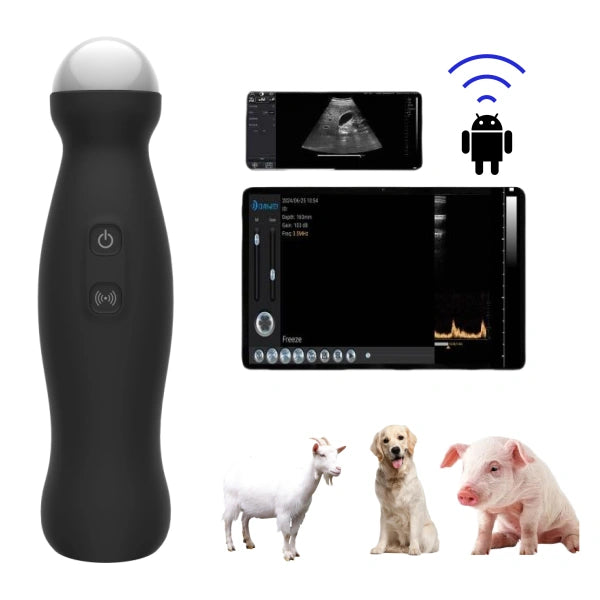

Adapted to Android, high-definition imaging, printable pdf report
- Scanning method: 3.5M mechanical fan scan;
- Frequency conversion: 2.5MHz, 3.5MHz, 5.0MHz;
- Display mode: B;
- Depth adjustment: 100-180mm, adjustable (100mm, 120mm, 140mm, 160mm, 180mm);
- Gain adjustment: 60-120dB;

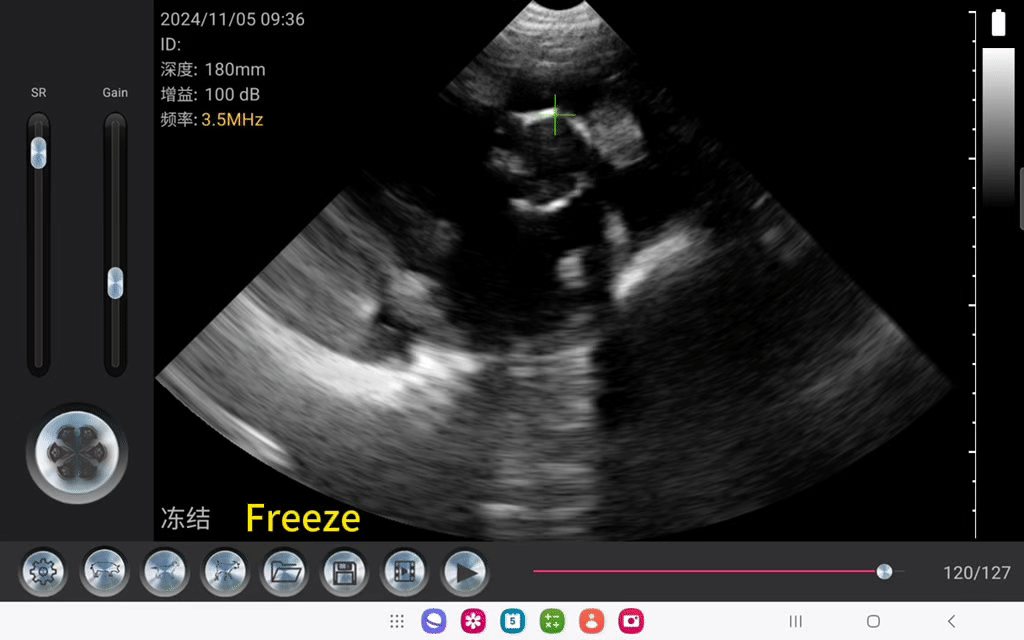

- Image processing: adaptive speckle noise suppression, contrast enhancement, edge enhancement;
- Gray scale: 256 levels;
- Movie playback: maximum 128 frames, continuous playback or frame-by-frame viewing
-
Goat Farm
-
Pig Farm
-
Pet
Use more than 4 hours continuously
Imported LG lithium battery cell, 3500mAh battery life, adding battery protection plate process and system optimization performance is more stable; the internal use of thermal conductivity device, external high temperature environment can also ensure normal use;
RFID Identification(Optional)
Read an animal's RFID tag using an RFID reader on a handheld wireless pig sheep ultrasound scanner probe
Quickly obtain pregnancy parameters
Obstetric examination kits for 3 animals:
- Pig: BF, GSD
- Goat: BPD
- Dog: GSD, BD, CRL, HD

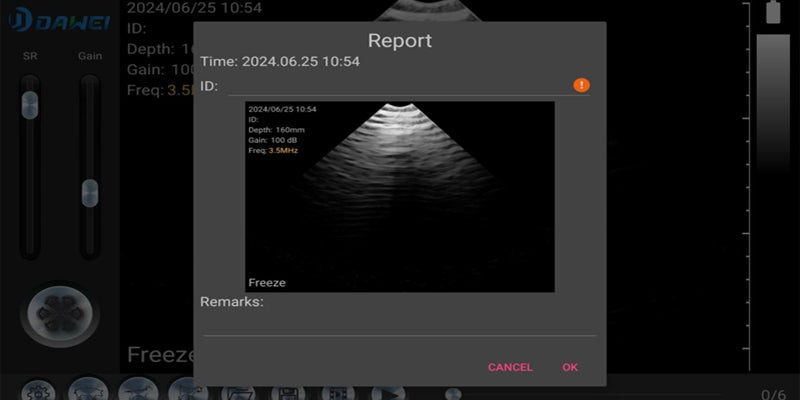

Store images and videos, and generate detailed diagnostic reports.
Click on the Image Storage button to save the current image as JPG and generate a PDF report. The report is stored under the Ultrascan\report path; the jpg image is stored under the Ultrascan\image path.
Software Module
Connection Management
Reads the animal's RFID tag using the RFID reader of the handheld ultrasound device.
Image Processing
Performs various image processing algorithms to improve image quality.
Measurement
Contains animal-specific measurement algorithms.
Storage Management
Handles image and video saving and report generation.
User Interface Module
Provides intuitive user interface and display functions.
Bulk Order
We provide customized services. If you need bulk order or customization, please contact WhatsApp: +86 18168231302
You may also ask
Technical Parameters
- Display: mobile phone/tablet;
- Operation interface: Chinese/English interface;
- Data transmission: WIFI;
Scanning method: 3.5M mechanical fan scan; - Frequency conversion: 2.5MHz, 3.5MHz, 5.0MHz;
- Display mode: B;
- Depth adjustment: 100-180mm, adjustable (100mm, 120mm, 140mm, 160mm, 180mm);
- Gain adjustment: 60-120dB;
- Image processing: adaptive speckle noise suppression, contrast enhancement, edge enhancement;
- Gray scale: 256 levels;
- Movie playback: maximum 128 frames, continuous playback or frame-by-frame viewing;
- Backfat measurement: automatic identification, automatic measurement;
- Ear tag reading: RFID intelligent reading of ear tag information (RFID model only);
- Image saving: JPG;
- Report format: PDF;
- Battery indicator: mobile phone/tablet display;
Waterproof level: IP67 waterproof and dustproof; - Power charger: AC100V~240V, 50/60Hz; DC5.0V, 2A;
- Host size: 185*49mm (length x diameter);
- Host weight: 245g;
- Interface: 1 Typc-C;
Warranty
Warranty:
We have professional engineers to provide Free two-year warranty.
24 months for the whole machine including probes, lifelong maintainance with cost charge.
If you have any questions about your new products, please send us email, including:
*order number, the question you want to solve together with a picture of the product if necessary.
Access to professional after-sales distance guidance, after-sales staff will give corresponding strategies according to the problem.
In case you have any query, please do not hesitate to get in touch with our customer service on sales13@dwvet.com.
Teach Support
We have a team of professional technical engineers.
Their duties:
Inspect medical equipment and instrumentation;
Provide troubleshooting and remote diagnostics of the product;
Training and demonstrating machine operation;
Provide customers with technical assistance by phone, email, or chat;
Solving clients' technical problems.
Wang Yingming has been working with Dawei for more than 11 years. He’s made significant contributions to course design and development, and clinical training.
In the past 11 years, Mr. Wang has accomplished the following work: Organized more than 12376 veterinary training sessions, and 1288 sessions for our distributors or clients. Accumulated training time has reached over 32000 hours; Offered Consulting and training services for 536 veterinary clinics 76 institutes and universities 58 Farms.
Attended technical seminars and participated in the development of industry standards with the following institutes and universities: Xuzhou Zoo.
Xuzhou Vocational College of Bioengineering The zoology school of Tianjin Normal University China Agricultural University Shandong Agricultural University The zoology school of Northwest A&F University Gansu livestock research center Guangdong endangered animal domestication and breeding center.
The College of Marine Life Sciences of Ocean University of China Hunan University of Environment and Biology Biological Technology Institute of Wuhan.
Mr.Wang has also joined many webinars held by veterinary associations from countries in the Middle East.
Contact us: sales13@dwvet.com
